GFK-1504K Chapter 10 Analog Input Modules 10-23

IC200ALG260

Analog Input Module, 12 Bit Voltage/Current 8 Channels

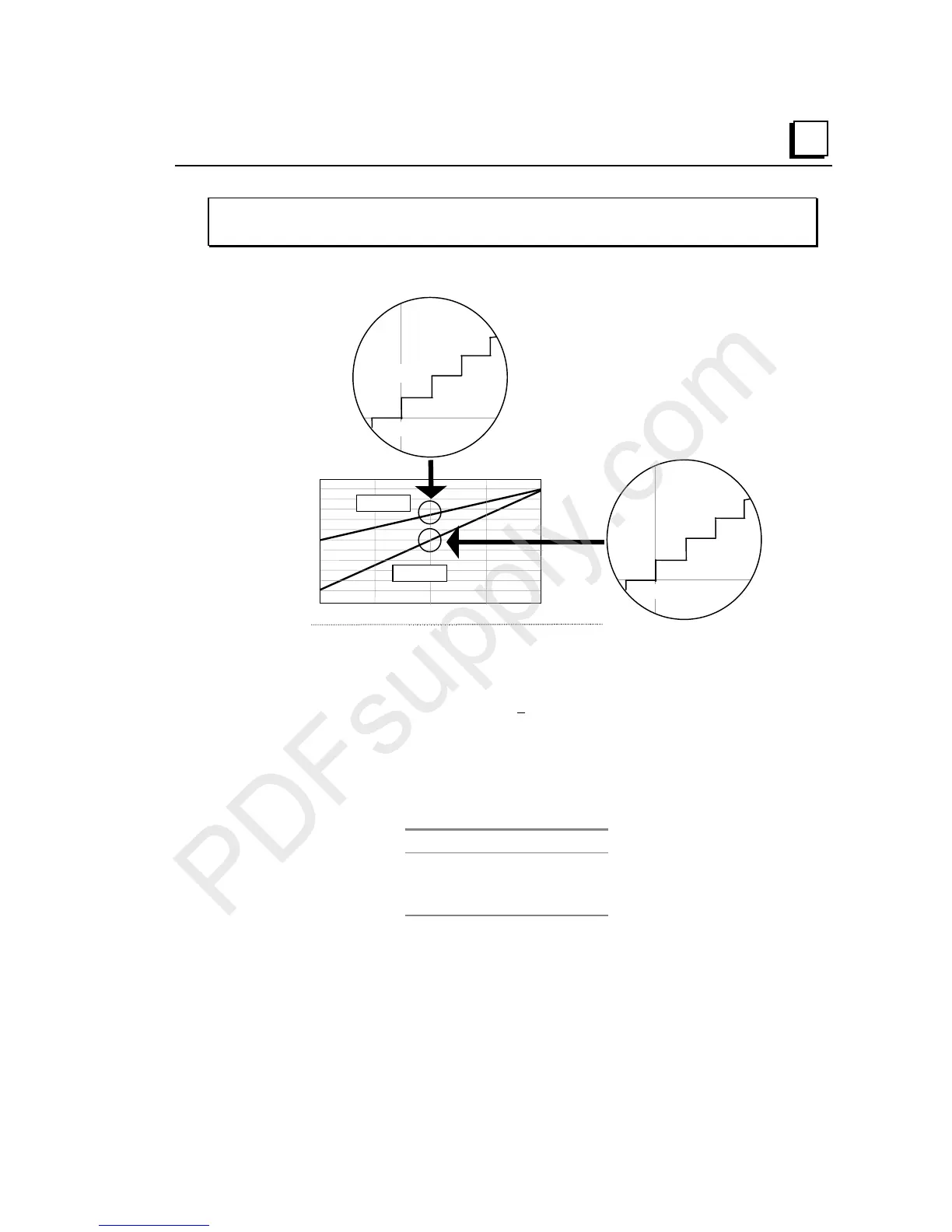

Count and Input Voltage

Volta

-2

-4

-6

-8

-10

-12

0 8192 16384 24576 32767

Unipolar

-32768 -16384 0 +16383 +32767

Bipolar

Count

Unipolar

Bipolar

2.5mV

5.0mV

7.5mV

2.5mV = 8 counts

5.1225V

5.125V

16408

16400

16392

16384

5.12V

5.1275V

2.5mV = 8 counts

The following equations can be used to calculate counts values:

Bipolar voltage:

Counts = ( +Voltage In) x (3200)

Unipolar voltage:

Counts = ( +Voltage In) x (3200)

For a change in the reported count value to be seen, input current must be increased by at

least 2.5mV. If the module receives an increase less than 2.5mV, the previous count value

is still reported. For example:

Voltage Count

5.1200V 16384

5.1220V 16384

5.1225V 16392
