10-32 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K

IC200ALG262

Analog Input Module, 14 Bit Differential Current 8 Channels

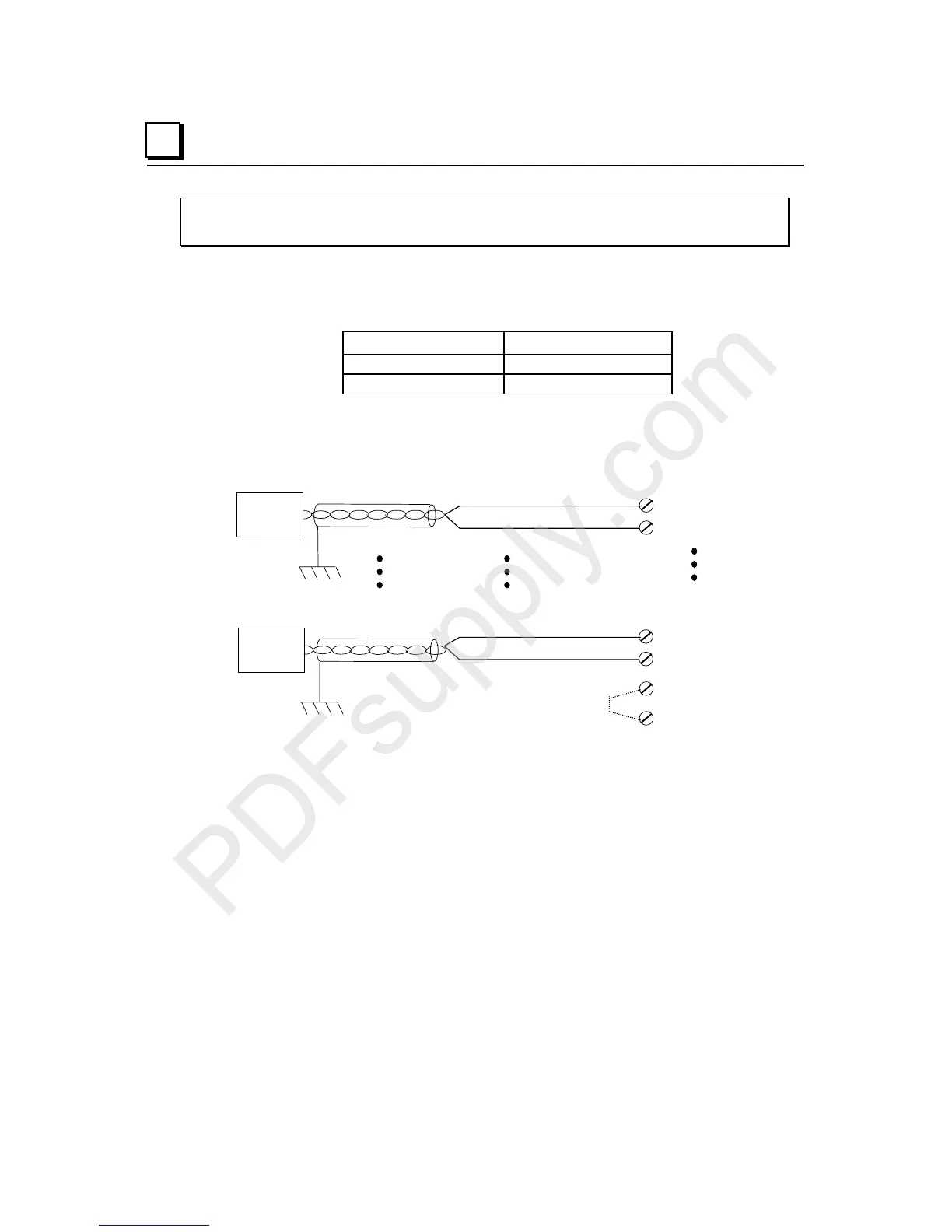

Jumper Selections

A jumper selects the current input range.

Jumper Range

None 4-20mA

Installed from A18 to A17 0-20mA

Wiring Examples

Input 1 (-)

Input 1 (+)

Jumper

Field Return

Jumper

Wire

Terminal

Connections

Current

Source

Current

Source

Input 8 (-)

Input 8 (+)

An external source must be provided to power input transceivers.
