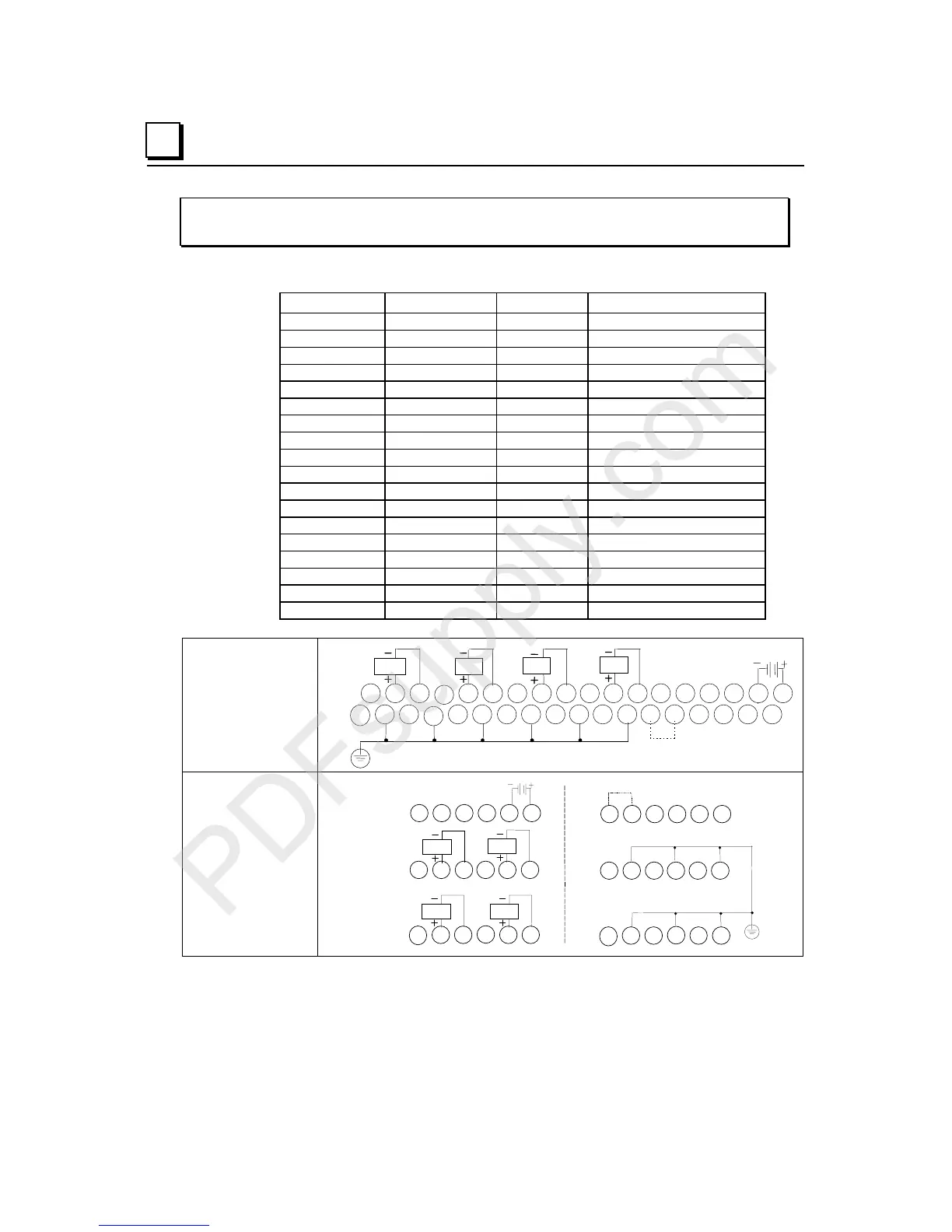

11-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
11
IC200ALG320
Analog Output Module, 12 Bit Current, 4 Channels
Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 No connection
A2 I OUT 1 B2 Shield Termination Point
A3 RET 1 B3 No connection
A4 No connection B4 Shield Termination Point
A5 I OUT 2 B5 No connection
A6 RET 2 B6 Shield Termination Point
A7 No connection B7 No connection
A8 I OUT 3 B8 Shield Termination Point
A9 RET 3 B9 No connection
A10 No connection B10 Shield Termination Point
A11 I OUT 4 B11 No connection
A12 RET 4 B12 Shield Termination Point
A13 No connection B13 JMP 1A
A14 No connection B14 JMP 1B
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 DC- B17 No connection
A18 DC+ B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
JMP1
AQ1
Shield Connections
AQ2
AQ3
AQ4
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18
123456789 111213141516171810
10
B
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
A
123
13
14 15 16
7 8 9 11 1210
456
Shield Connections
AQ1
B
123
13
14 15 16 17 18
7 8 9 11 1210
JMP1
456
AQ2
AQ3
AQ4
17 18
