GFK-1504K Chapter 11 Analog Output Modules 11-11
11
IC200ALG321
Analog Output Module, 12 Bit Voltage 0 to 10VDC 4 Channels

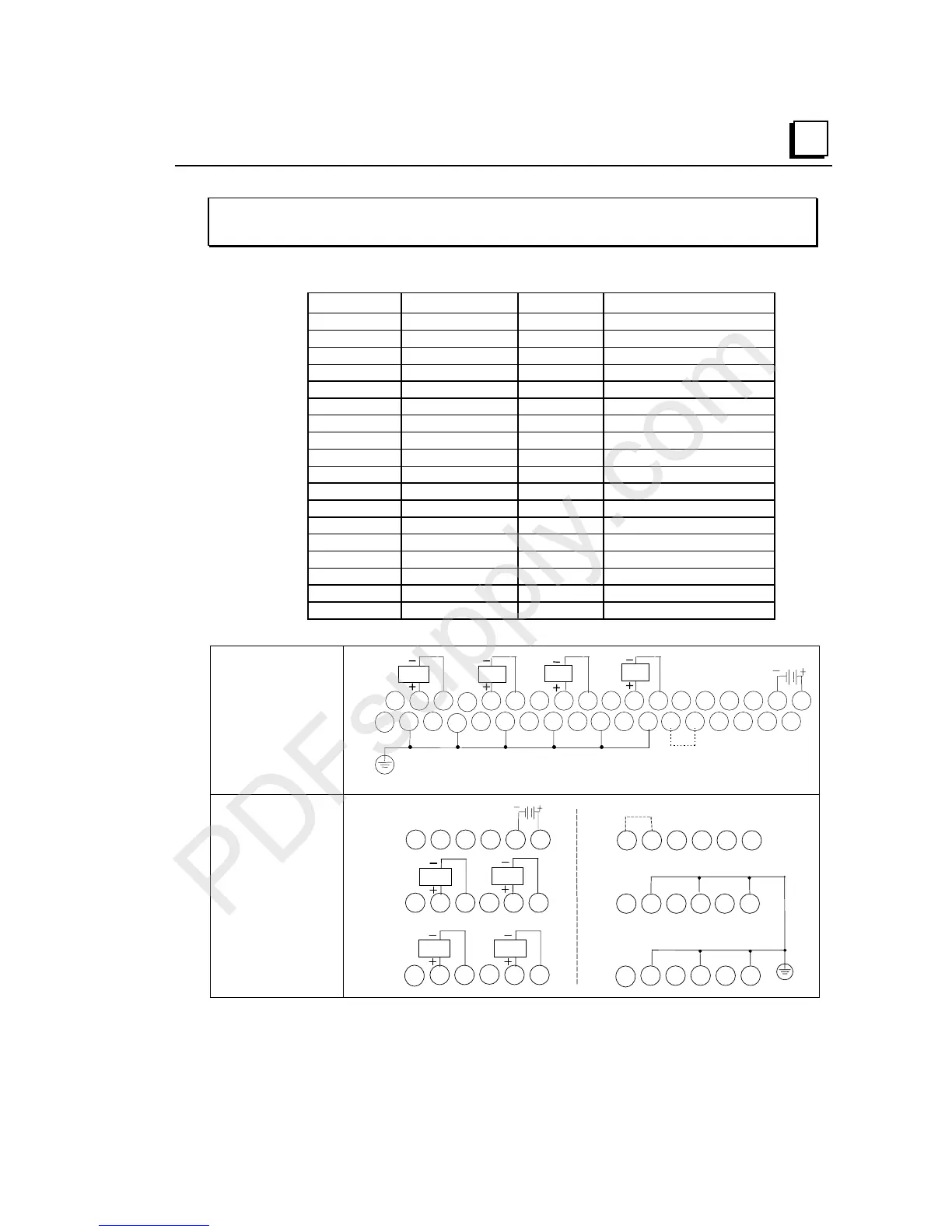

Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 No connection
A2 V OUT 1 B2 Shield Termination Point
A3 RET 1 B3 No connection
A4 No connection B4 Shield Termination Point
A5 V OUT 2 B5 No connection
A6 RET 2 B6 Shield Termination Point
A7 No connection B7 No connection
A8 V OUT 3 B8 Shield Termination Point
A9 RET 3 B9 No connection
A10 No connection B10 Shield Termination Point
A11 V OUT 4 B11 No connection
A12 RET 4 B12 Shield Termination Point
A13 No connection B13 JMP1A
A14 No connection B14 JMP1B
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Field Return B17 No connection
A18 Field Power B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
JMP1
AQ1
Shield Connections
AQ2
AQ3
AQ4
1 2 3 4 5 6 7 8 9 111213141516 1718
123456789 111213141516171810
10
B
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
A
123
13
14 15 16
789 111210
456
Shield Connections
AQ1
B
123
13
14 15 16 17 18
7 8 9 11 1210
JMP1
456
AQ2
AQ3
AQ4
17 18
