11-14 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
11
IC200ALG321
Analog Output Module, 12 Bit Voltage 0 to 10VDC 4 Channels
Scaling

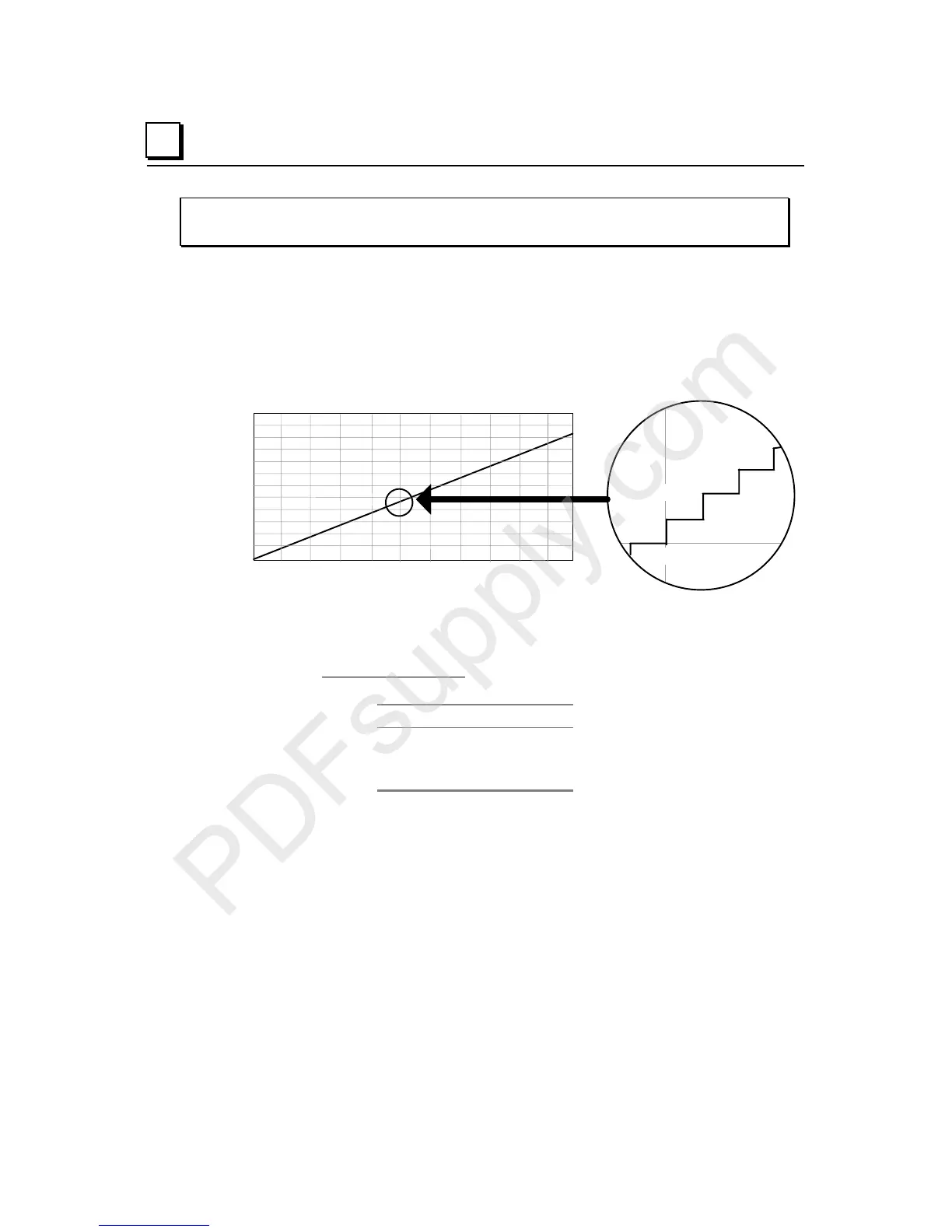

The graphs below show the relationship between the output voltage measured at the field
terminals and the data that is output by the module.
Count vs Output Voltage
0 3200 6400 9600 12800 16000 19200 22400 25600 28800 32000
12
11
10
9
8
7
6
5
4
3
2
1
0
Count
Voltage
5.0125V
5.0150V
16040
16032
16024
16016
5.0100V
5.0175V
8 counts =
2.5mV
Voltage can be calculated using the following equation:
Vout = ( (analog counts x 10.25) / 32768 )
The count value must be a multiple of 8. If the module receives a count value that is not a
multiple of 8, it rounds the value down to the closest multiple of 8. For example:
Count Voltage
16024 5.0125V
16030 5.0125V
16032 5.0150V
