GFK-1504K Chapter 12 Analog Mixed I/O Modules 12-7

IC200ALG430

Analog Mixed Module, 12 Bit Input Current 4 Channels and

Output Current 2 Channels

Scaling

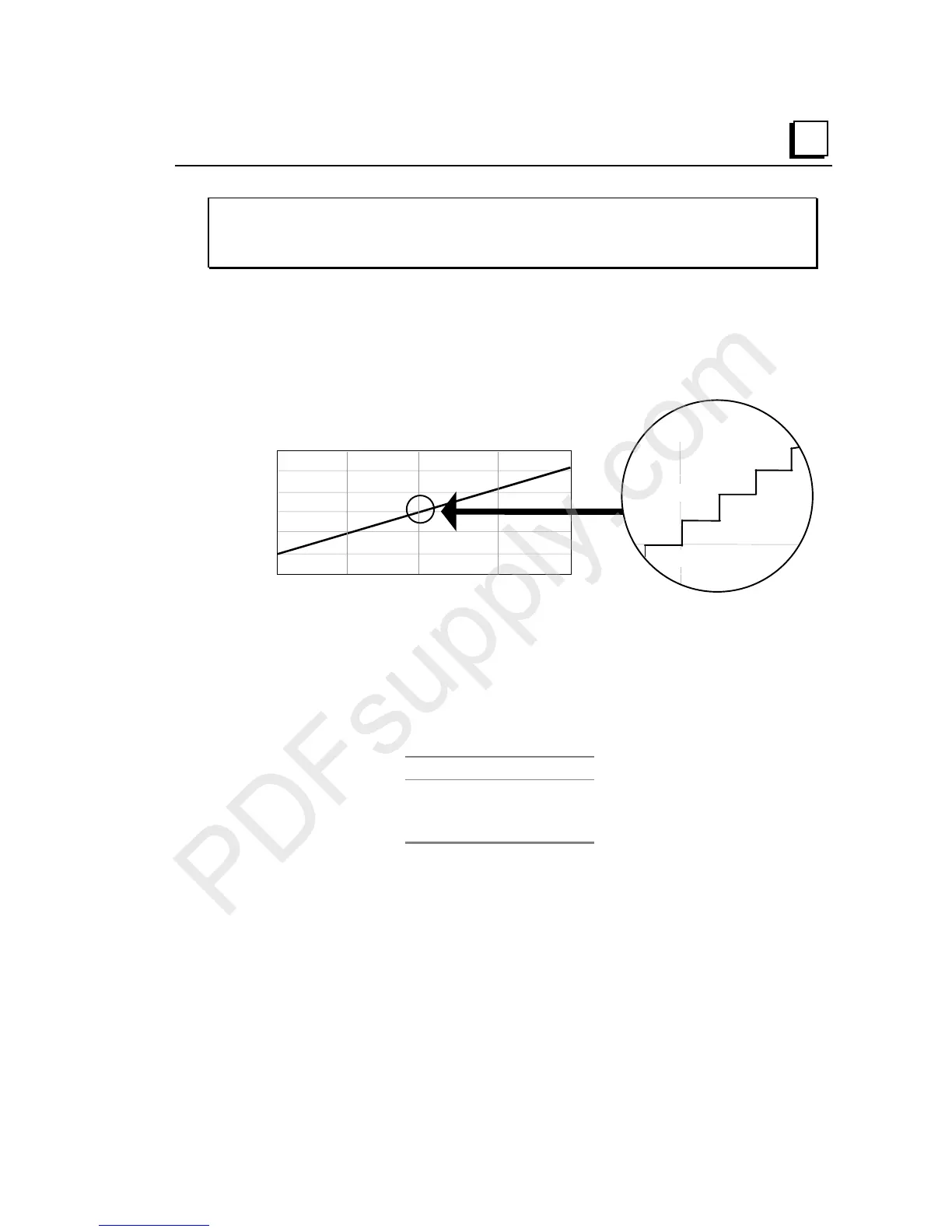

The following graphs show the relationship between the input current measured at the field

terminals and the data values for the module.

Count vs Input Current

12.202mA

0 8192 16384 24576 32767

Count

12.194mA

12.198mA

16408

16400

16392

16384

12.19mA

8 counts =

4µA

The following equation can be used to calculate counts values:

Counts = ( Current in mA - 4mA) x (32768 / 16.38mA

)

For a change to be seen in the reported count value, input current must be increased by at

least 4µA. If the module receives an increase less than 4µA, the previous count value is

still reported. For example:

Current Count

12.190mA 16384

12.192mA 16384

12.194mA 16392
