GFK-1504K Chapter 12 Analog Mixed I/O Modules 12-15

IC200ALG431

Analog Mixed Module, 12 Bit 0 to 10VDC Input 4 Channels and Output 2 Channels

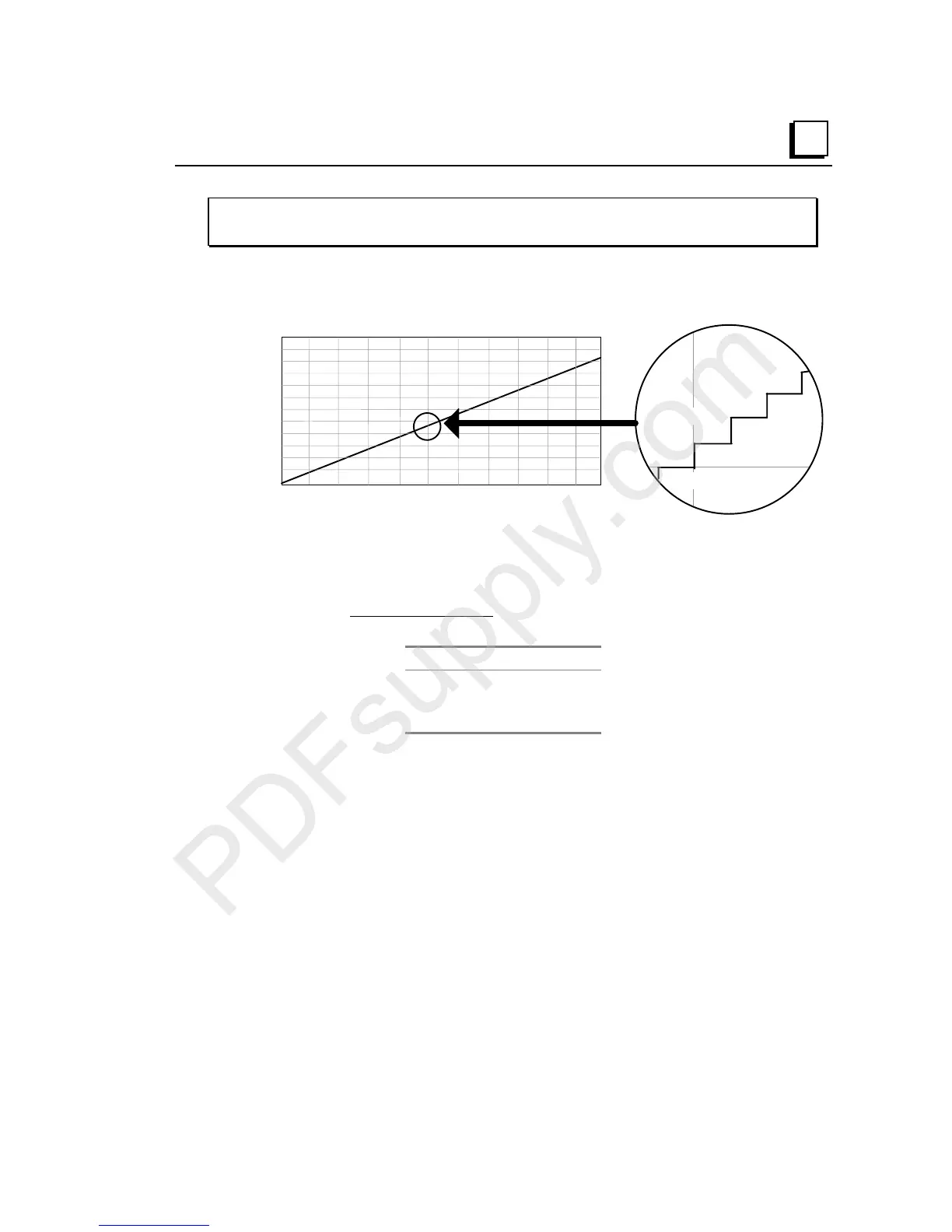

Count vs Output Voltage

0 3200 6400 9600 12800 16000 19200 22400 25600 28800 32000

Count

Voltage

5.0125V

5.0150V

16040

16032

16024

16016

5.0100V

5.0175V

8 counts =

2.5mV

Voltage can be calculated using the following equation:

Vout = ( (analog counts x 10.25) / 32768 )

The count value must be a multiple of 8. If the module receives a count value that is not a

multiple of 8, it rounds the value down to the closest multiple of 8. For example:

Count Voltage

16024 5.0125V

16030 5.0125V

16032 5.0150V
