GFK-1504K Chapter 12 Analog Mixed I/O Modules 12-19

IC200ALG432

Analog Mixed Module, 12 Bit +/-10VDC Input 4 Channels and Output 2 Channels

Jumper Selection

If no jumper is installed outputs hold their last state (the last commanded value from the

backplane) if backplane power or communications are interrupted or the PLC is stopped.

With a jumper installed, if such conditions occur outputs default to 0V. This should only

be changed with field power and backplane power removed.

Jumper Default

None Hold Last State

JMP 1 0V

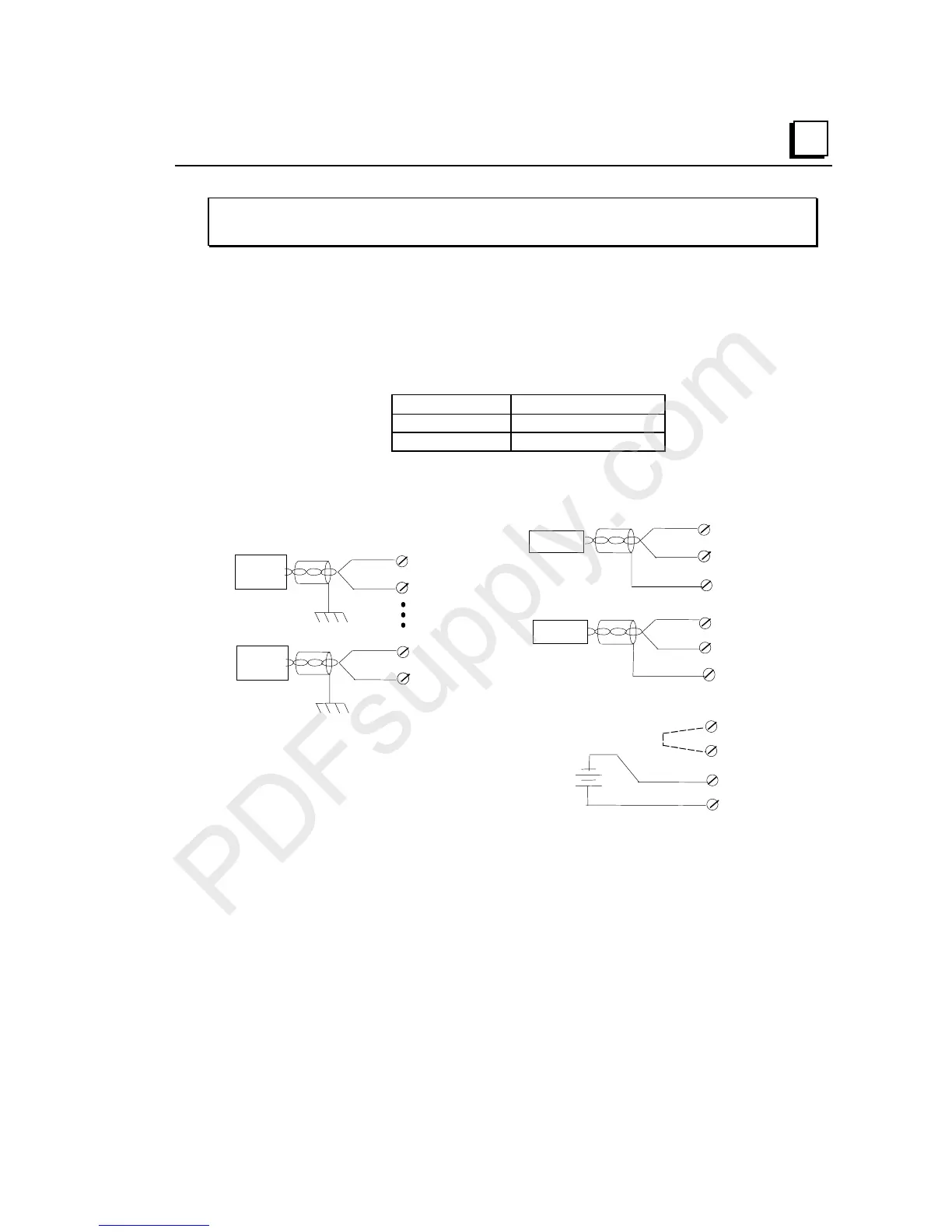

Wiring Example

V Out 2

V Out RET 2

Field Power

etu

VOut1

V Out RET 1

JMP 1A

JMP 1B

Shield

24VDC

Load

Jumper present

ects

Voltage Inputs

V In RET 4

V In RET 1

V In 1

V In 4

Voltage Outputs

Voltage

Source

Voltage

Source

An external source is needed to

power input transceivers.
