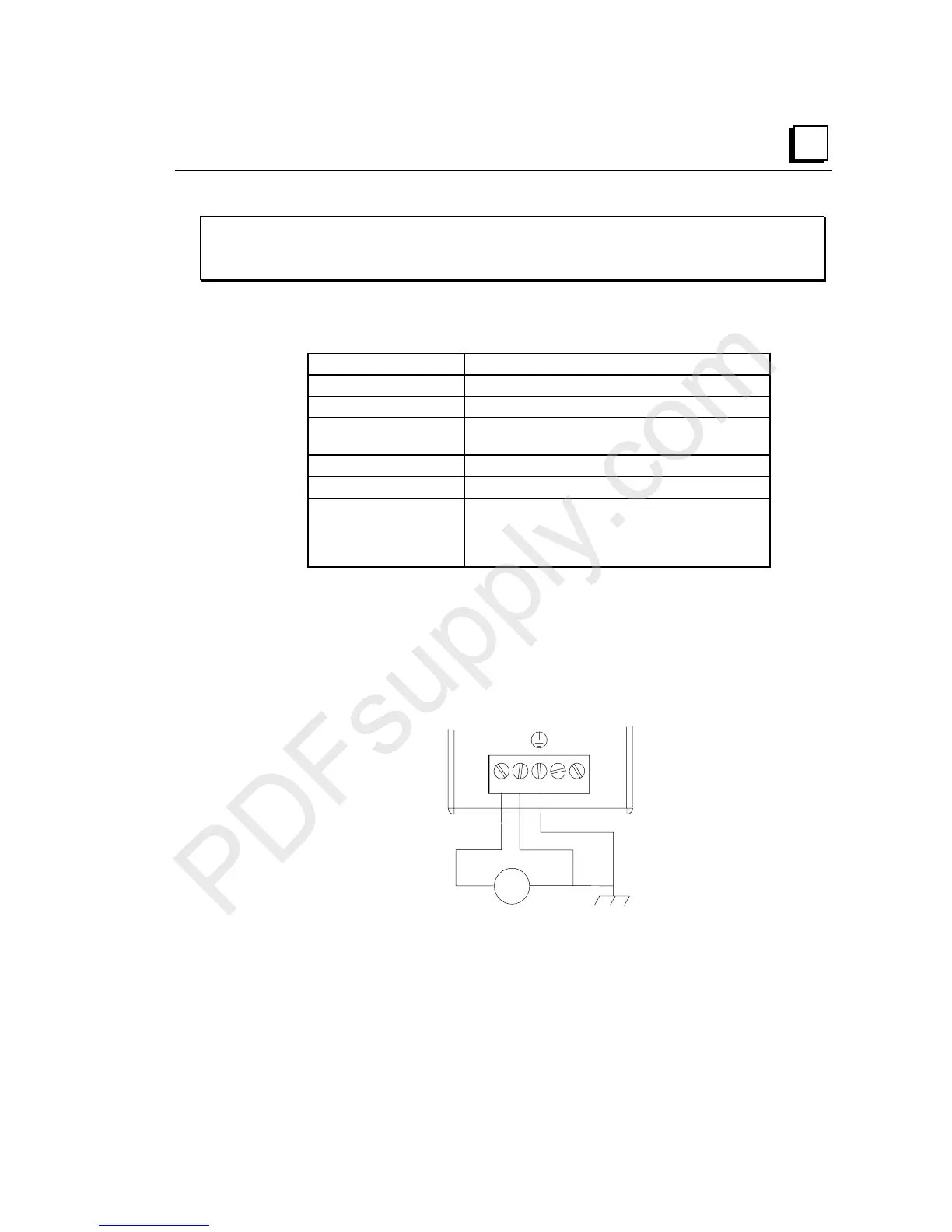

GFK-1504K Chapter 3 Power Supplies 3-3

IC200PWR001

24VDC Power Supply

Specifications

Input Voltage 18 to 30VDC, 24VDC nominal

Input Power 11W

Holdup Time 10ms

Inrush Current 20A at 24VDC

25A at 30 VDC

Output Voltage 5VDC, 3.3VDC

Protection Short circuit, overload, reverse polarity

Output Current

Total

3.3VDC Output

5VDC Output

1.5A maximum

0.25A maximum

(1.5A - I

3.3V

) maximum

•

The total output current should not exceed 1.5A. For example, if 3.3V @

0.25A is required, 1.25A is available on the 5V output.

Wiring

DC- must be grounded to frame / earth ground. DC- is grounded to frame internally in the

Power Supply. As a result, floating power supplies cannot be used.

DC+ DC-
