GE VersaMax - Page 70

To Next Page

To Previous Page

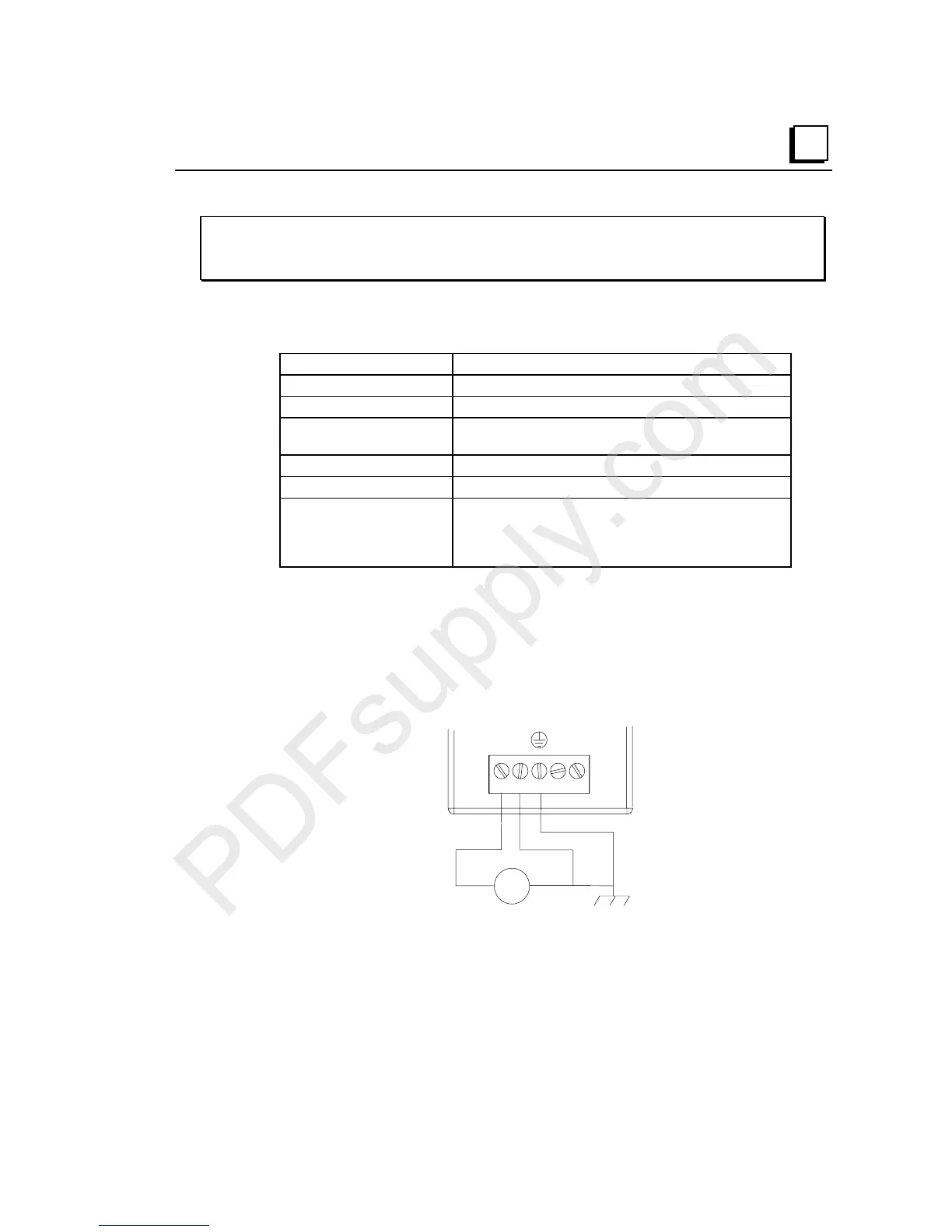

GFK-1504K Chapter 3 Power Supplies 3-5

IC200PWR002

24VDC Expanded 3.3 V Power Supply

Specifications

Input Voltage

18 to 30 VDC, 24VDC nominal

Input Power

11W

Holdup Time

10ms

Inrush Current

20A at 24VDC

25A at 30 VDC

Output Voltage

5VDC, 3.3VDC

Protection

Short circuit, overload, reverse polarity

Output Current

Total

3.3VDC Output

5VDC Output

1.5A maximum

1.0A maximum

(1.5A - I

3.3V

) maximum

•

The total output current should not exceed 1.5A. For example, if 3.3V @ 1.0A

is required, 0.5A is available on the 5V output.

Wiring

DC- must be grounded to frame / earth ground. DC- is grounded to frame internally in the

Power Supply. As a result, floating power supplies cannot be used.
