Geeetech Prusa I3 Pro C - Assemble Z-Axis Top Mount

53
GEEETECH

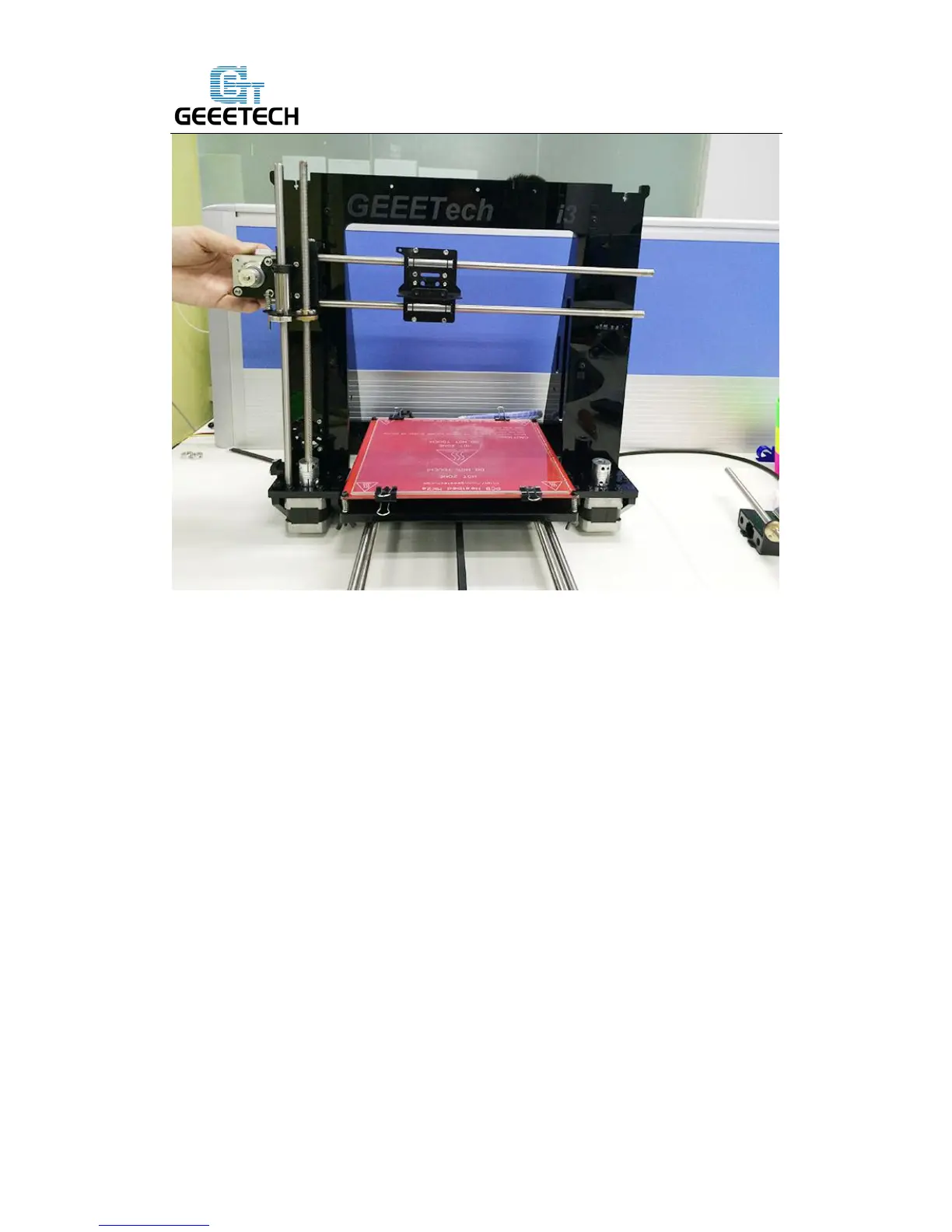

Step4. Thread the two X axis smooth rods into the hole of X idler end. Plug the
vertical threaded rod into the coupling on the right bottom of the Z axis. Then thread
the 340mm smooth rod into the linear bearing.
