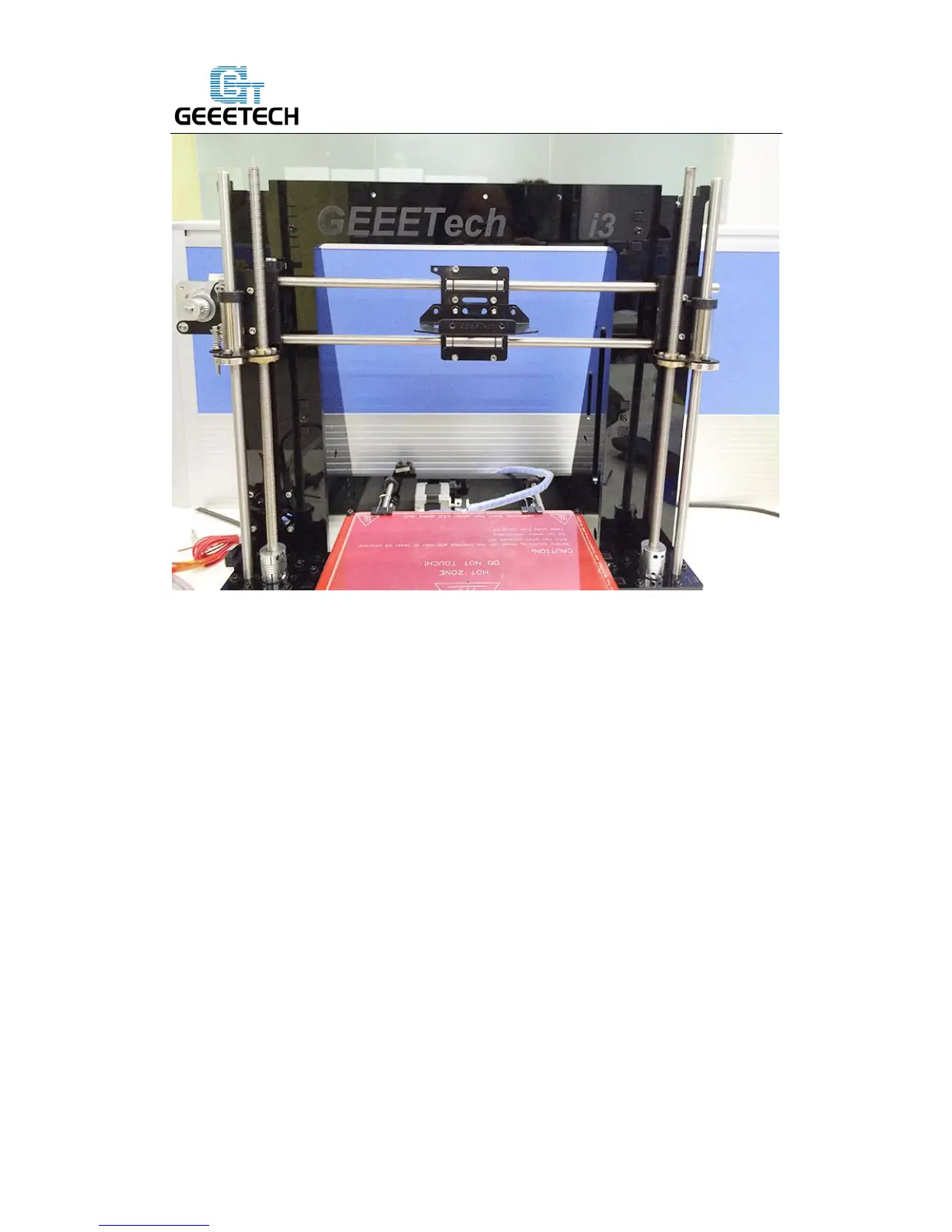

Note: the smooth rods and the threaded rod of Z axis are vertical and the X axis is
horizontal, which is very important, or it will hinder the move of the Z axis.
Step5. Fix the locking rings on the end of the rod if you got the silver rings.
