Section 2 Drive Belt Replacement
1. Disconnect all engine pipe hose and wire joint. Remove engine assembly from the engine
compartment, jack up the body, take out the engine assembly slowly (See Provision 20, Section
Two, Chapter Two for detailed information)
2. Remove generator V-belt See (Figure 5)
3. Remove No. 1 V-belt A/C compressor to crankshaft pulley
4. Remove water pump belt See (Figure 6)
5. Install water pump V-belt
6. Adjust V-belt of steering assisting pump
(a) Adjust power steering belt tension, tighten bolt B.
(b) Tighten bolt A.
Torque : 39N. m
7. Install V-belt A/C compressor No. 1 to crankshaft pulley
8. Adjust V-belt A/C compressor No. 1 to crankshaft pulley
(a) Adjust A/C belt tension by tightening bolt B.
(b) Tighten nut A.
Torque : 39N. m
9. Install Generator V-belt See (Figure 7)
10. Adjust Generator V-belt.
Tighten bolt A and then bolt B.
Torque: Bolt A 18N. m Bolt B 58N. m
11. Check driving belt for distortion and tension

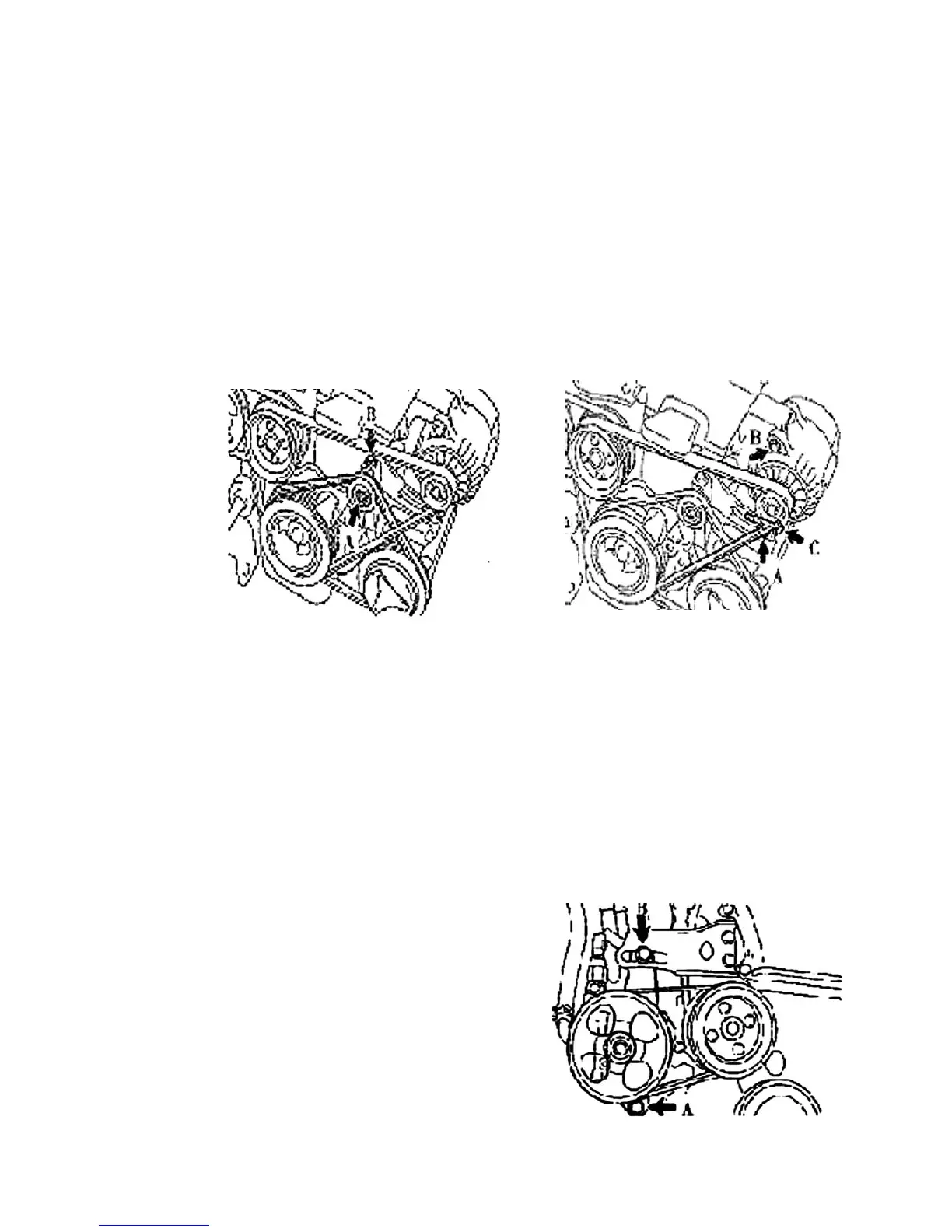

Figure 7
Figure 6Figure 5
