Section 5 Front Brake Assembly

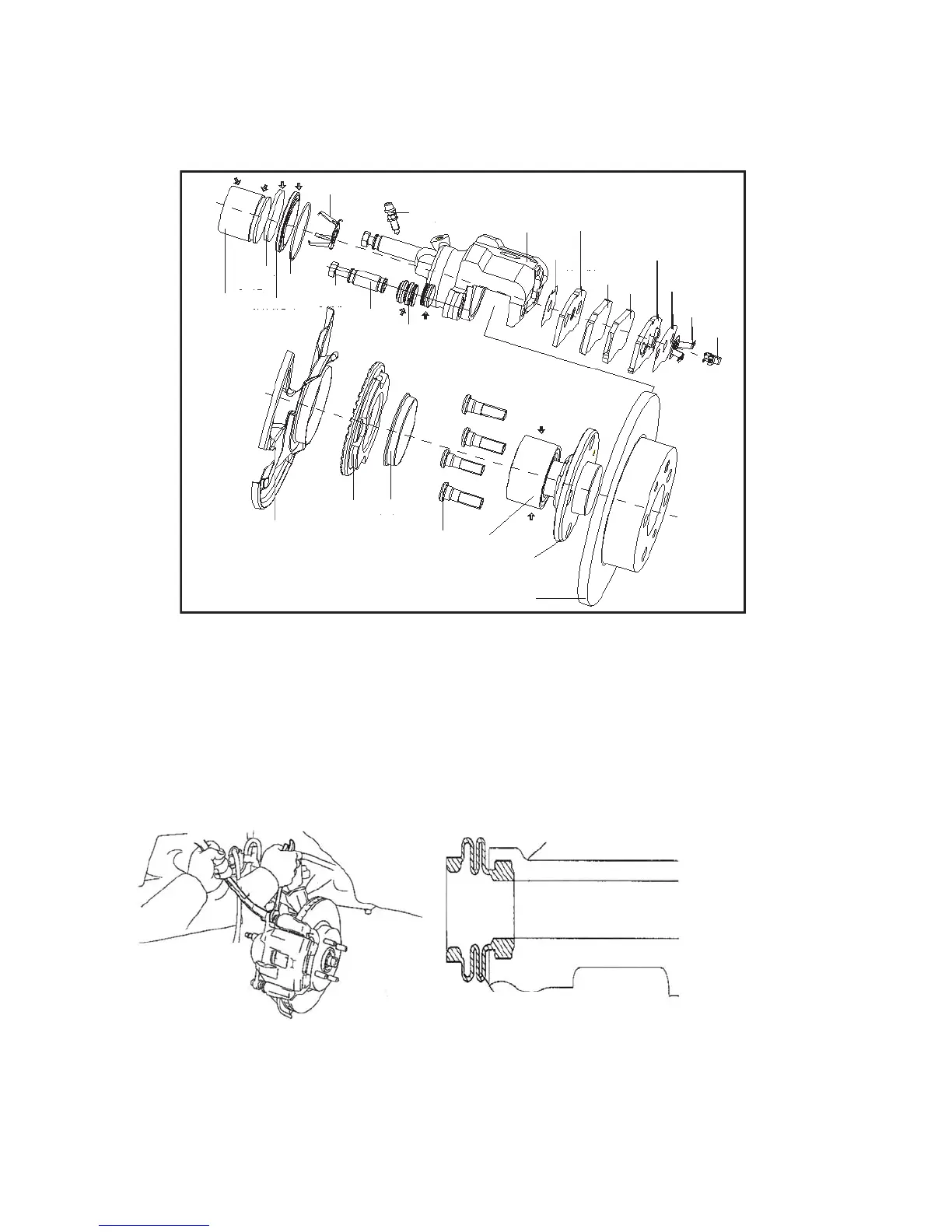

Components
Repairing
1. Remove the front wheel
2. Drain the brake fluid. Remove the brake hose
3. Remove the front brake caliper
(1) Remove the brake hose union thread from the front brake cylinder. Disconnect the hose
(2) Remove 2 installing bolts
4. Remove the front brake pad
5. Remove the front left disc caliper
6. Remove the sliding pin boot
Disk Brake Wheel
Cylinder Bracket
Sliding Pin Boot
Inner Floating Clip Plate
Screw Plug
Brake Caliper
Housing
Inner
Damper
Inner Pad
Backing
Plate
Inner Pad
Outer Pad
Outer Pad
Backing Plate
Outer
Damper
Outer Floating
Clip Plate
Alarm
Plate
Wheel
Cylinder
Piston
Wheel
Cylinder
Piston Seal
Wheel
Cylinder
Boot
Steel Wire
Snap Ring
Short Pin
Set Bolt
Short Bushing
Guide Boot (II)
Splash Shield
Front Ring Gear
Retaining
Ring
Wheel Hub Bolt
Front Wheel
Hub Bearing
Wheel Hub
Disc
