(V) Rear Bumper

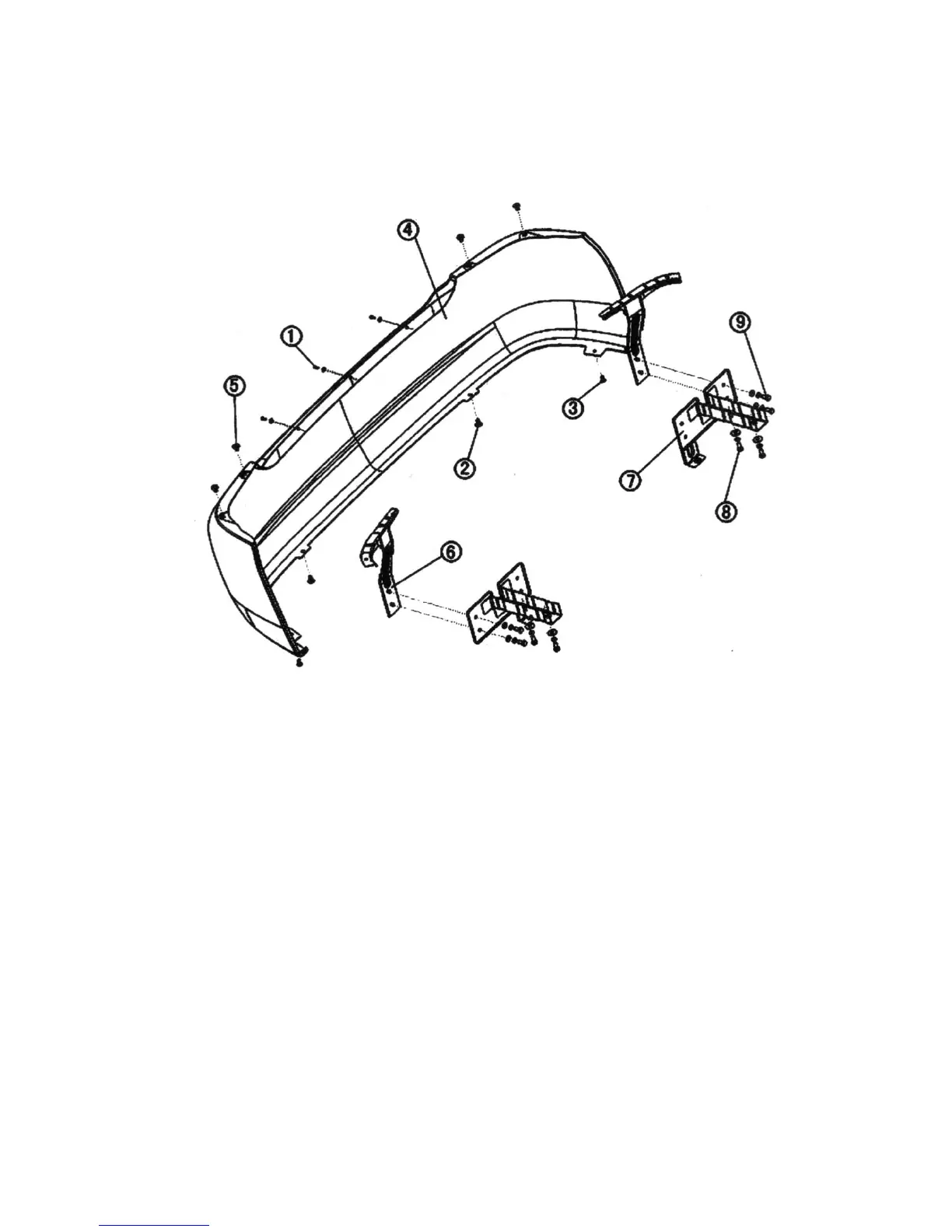

The structure diagram is shown as the figure below:
1.Cross Pan Head Tapping Screw And Big Washer Set 2.Cross Pan Head Screw (GB973 M6X16)
3.Cross Pan Head Screw (GB973 M6X16) 4.Rear Bumper 5.Clip 6.Rear Bumper Reinforce-
ment Assembly 7.Rear Bumper Mounting Bracket Assembly 8.Hexigon Bolt and Spring Washer
Set 9.Hexigon Bolt Spring and Flat Gasket Set
1.Rear Bumper Removal/Installation
(1) Disconnect the negative (--) terminal cable from the battery.
(2) Remove the cross pan head tapping screw and big washer set.
(3) Remove 4 hexagon bolt on the mounting bracket.
(4) Remove 2 cross pan head screw (GB973 M6X16)
(5) Pull the rear bumper out from the body.
(6) Remove the cross pan head screw (GB973 M6X16) and hexagon bolt spring and flat gasketset. Remove
the rear bumper mounting bracket assembly.
(7) The installation is in the reverse order of the removal.
