299
Section 2 Heating System
Heating system uses mixed temperature adjustment which controls both cold and hot air and is featured in
outstanding temperature adjustment performance. The cold and hot air can be completely mixed at each
outlet and achieve continuous temperature adjustment. The air duct arrangement on the instrument panel is
shown in Figure 2. The air flow channel system is shown in Figure 3.
I. Heating System Parameter and Structure
Heating system uses water heating structure which uses the engine coolant as the heat source, leads the the
coolant into the heating radiator installed in the vehicle compartment and has the interior or exterior air blow
across the radiator with the blower to increase its temperature. The system consists of the blower assembly,
heating control assembly and heater assembly.

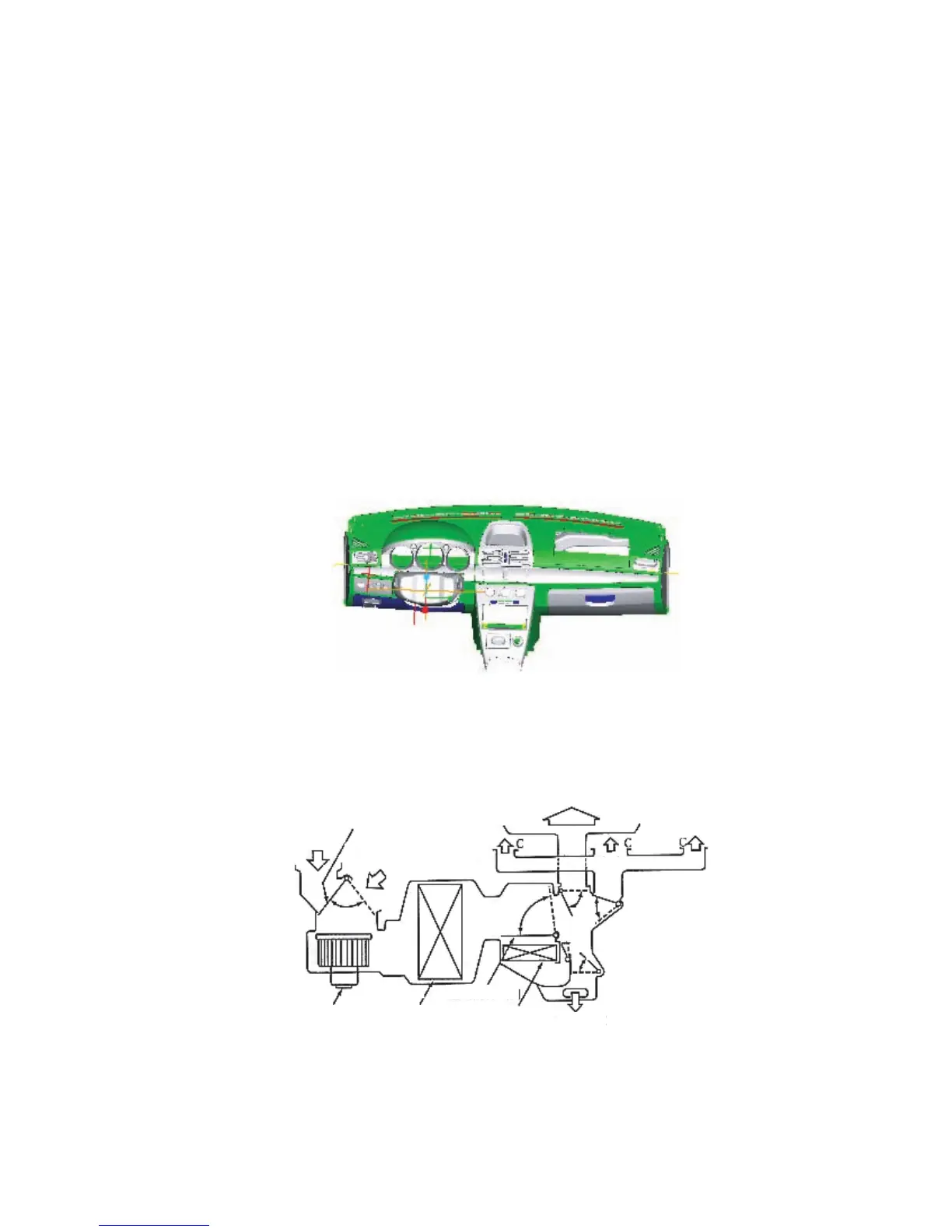

Figure 2 Heating Duct Arrangement
Inside and Outside Air Switch Door
Outdoor Air
Indoor Air
Defogger
Intermidiate outlet
Heater
Blower Motor Evaporator
Air Mix Door
Heating Radiator
Figure 3 Air Flow Channel System Illustration
To Next Page
