Section 3 Rear Wheel Alignment
Inspection
1. Inspect tire
Standard inflation pressure: 220 Kpa
2. Inspect rear wheel toe-in
If the rear wheel toe-in is not within the specification, adjust it via rear
wheel toe-in adjusting cam.
3. Inspect the camber
Notice: If the camber is not within the specification, check the suspension parts for damage/low
performance. Replace it if necessary.
Toe-in C - D: 1
～
5 mm
Camber -20´± 30´

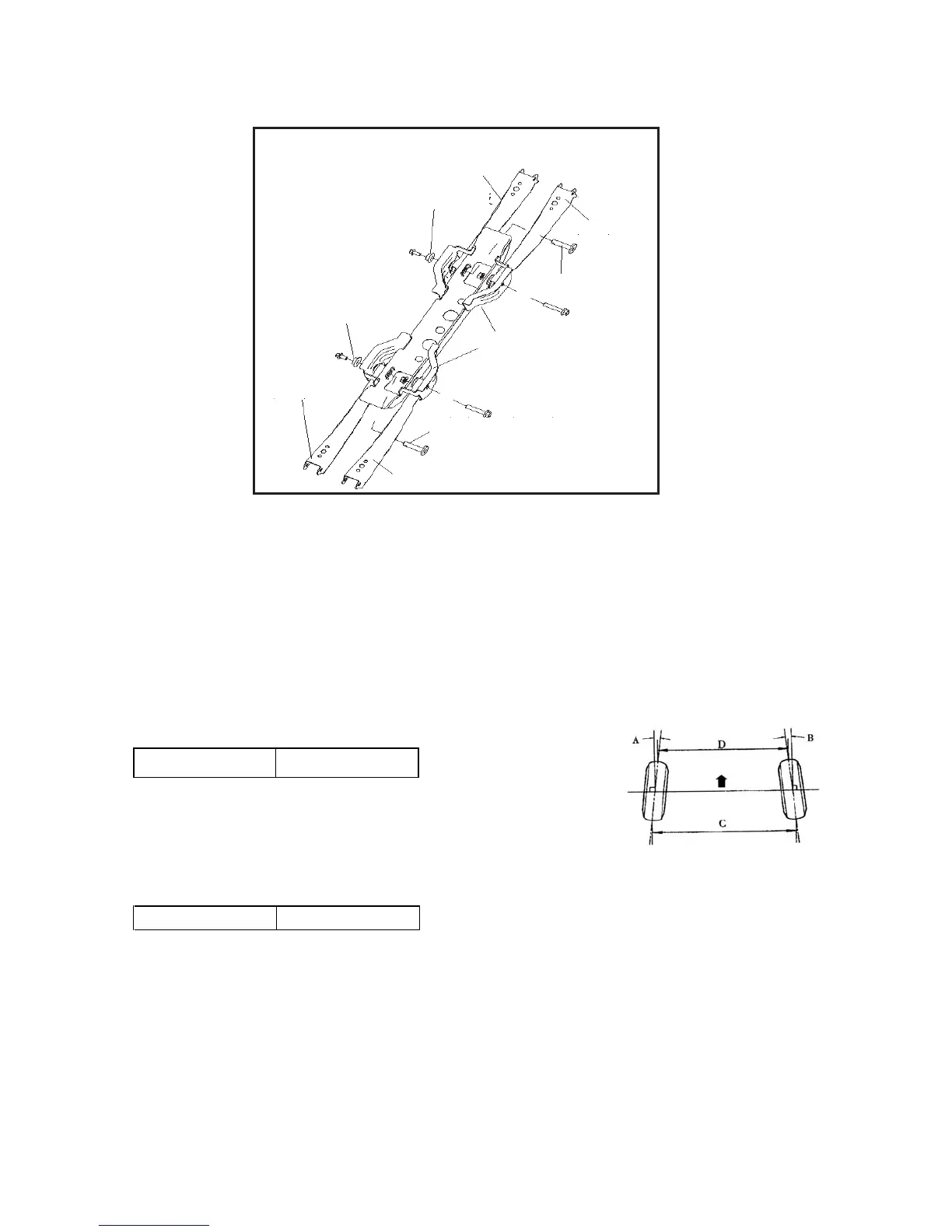

Front
No. 2 Transverse Arm Assembly
Rear Wheel Toe-In
Adjusting Panel
Rear Wheel Toe-In
Adjusting Plate
No. 2 Transverse
Arm Assembly
No. 1 Transverse
Arm Assembly
No. 1 Transverse
Arm Assembly
Rear Wheel Toe-In
Adjusting Cam
Rear Wheel Toe-In
Adjusting Cam
Body Bottom Plate
