218
II. INSTALLATION
1. Install the rear combination lamp and then the 3 mounting bolts.
2. Install the electrical connector.
3. Install the rear trunk interior trim.
4. Install the seal strip.
III. REAR COMBINATION LAMP BULB REPLACEMENT
1. Remove the O-ring seal.
2. Turn the lamp-holder counter-clockwise. Pull out the lamp-holder.
3. Remove the bulb and replace the bulb.
Section 6 High Mounted Stop Lamp Replacement

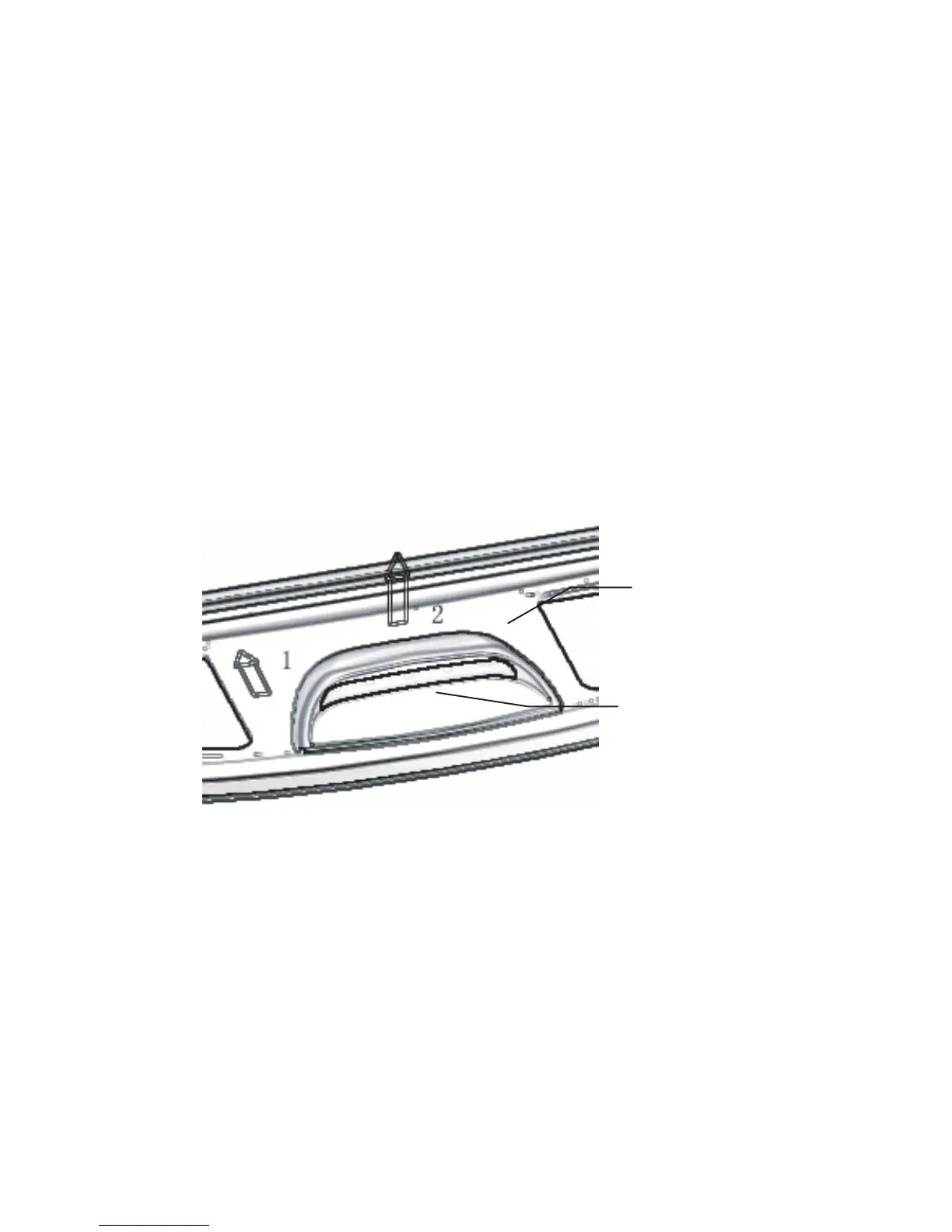

z Remove the High mounted stop lamp in direction 1 and 2. (as shown above in the illustration)
z Disconnect the connector.
Partition
High Mounted
Stop Lamp
To Next Page
