Section 6 Basic System

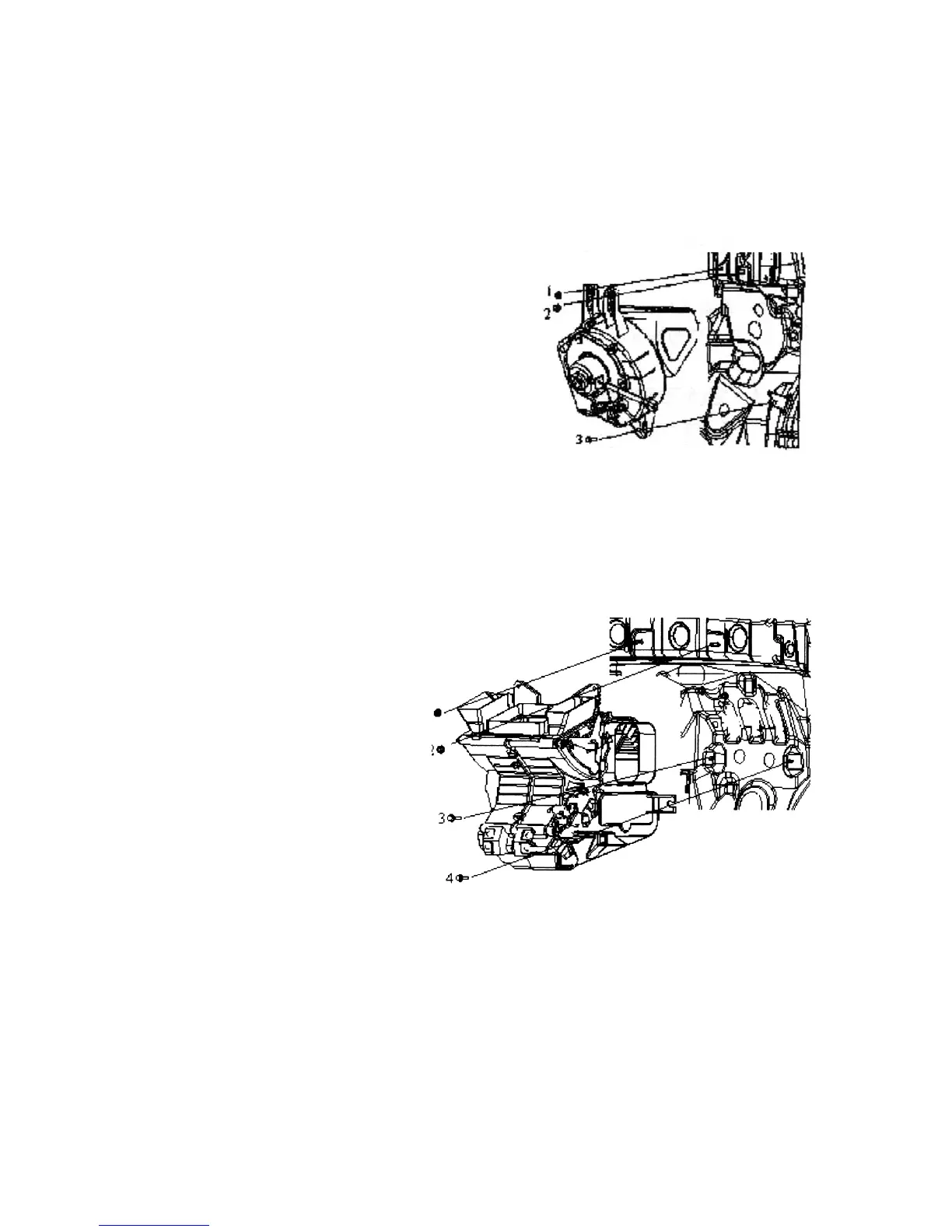

1. Blower Removal / Installation
1. Disconnect the negative (--) terminal cable from the battery.
2. Remove instrument panel.
3. Remove motor connector.
4. Remove the resistor connector.
5. Remove the band.
6. Remove bolt. Remove blower.
7. The installation is in the reverse order of the removal.
2. Heater Removal / Installation
1. Remove water hose No. 1 and 2.
2. Remove instrument panel.
3. Remove the band.
4. Remove 2 wind door cables.
5. Remove heater.
6. The installation is in the reverse order of
the removal.
3. The Evaporator Removal / Installation
1. Remove evaporator inlet and outlet pipeline.
2. Remove instrument panel.
3. Remove thermistor connector.
4. Remove 2 bands.
