(IX) A pillar inside trim and front door sill

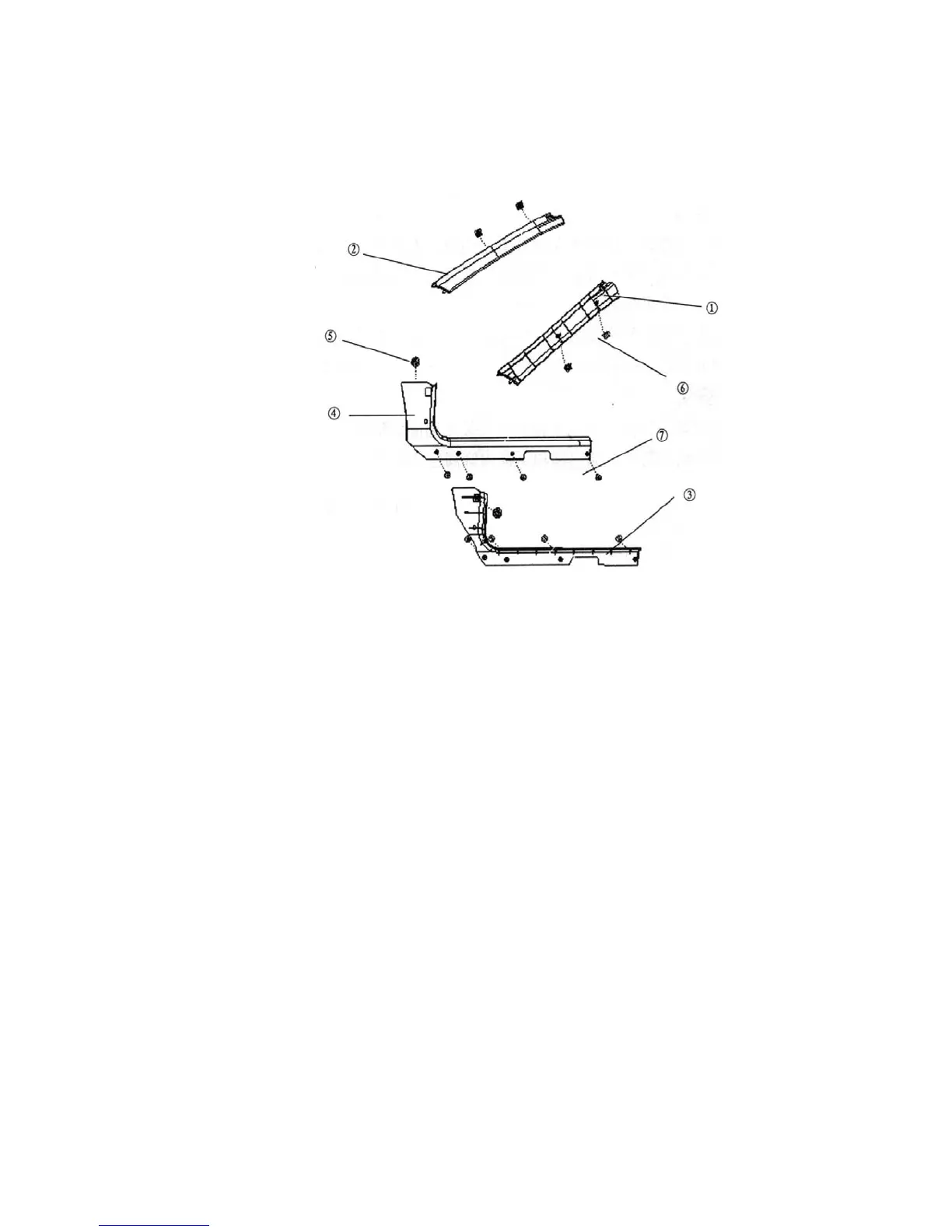

A pillar inside trim and front door sill diagram
A pillar inside trim and front door sill diagram
1. Right A Pillar Inside Trim 2. Left A Pillar Inside Trim 3. Right Front Door Sill
4. Left Front Door Sill5.D-Clip 6. Steel Clip 7. Cross Slot Head Self-tapping Screw
1. Removal
1 Remove the installed right front door sill, left front door sill self-tapping screw cross screwdriver;
2
Use an opener to remove the right A pillar inside trim, A pillar inside trim, right front door sill, left front
door sill.
2. Installation
1 Install the right A pillar inside trim, A pillar inside trim, right front door sill , left front door sill to the
corresponding position with clip and steel clip;
2 Fix the right front door sill , left front door sill with a tapping screw.
1
2
3
6
4
5
7
