Section 4 Left & Right Rear Strut Assembly

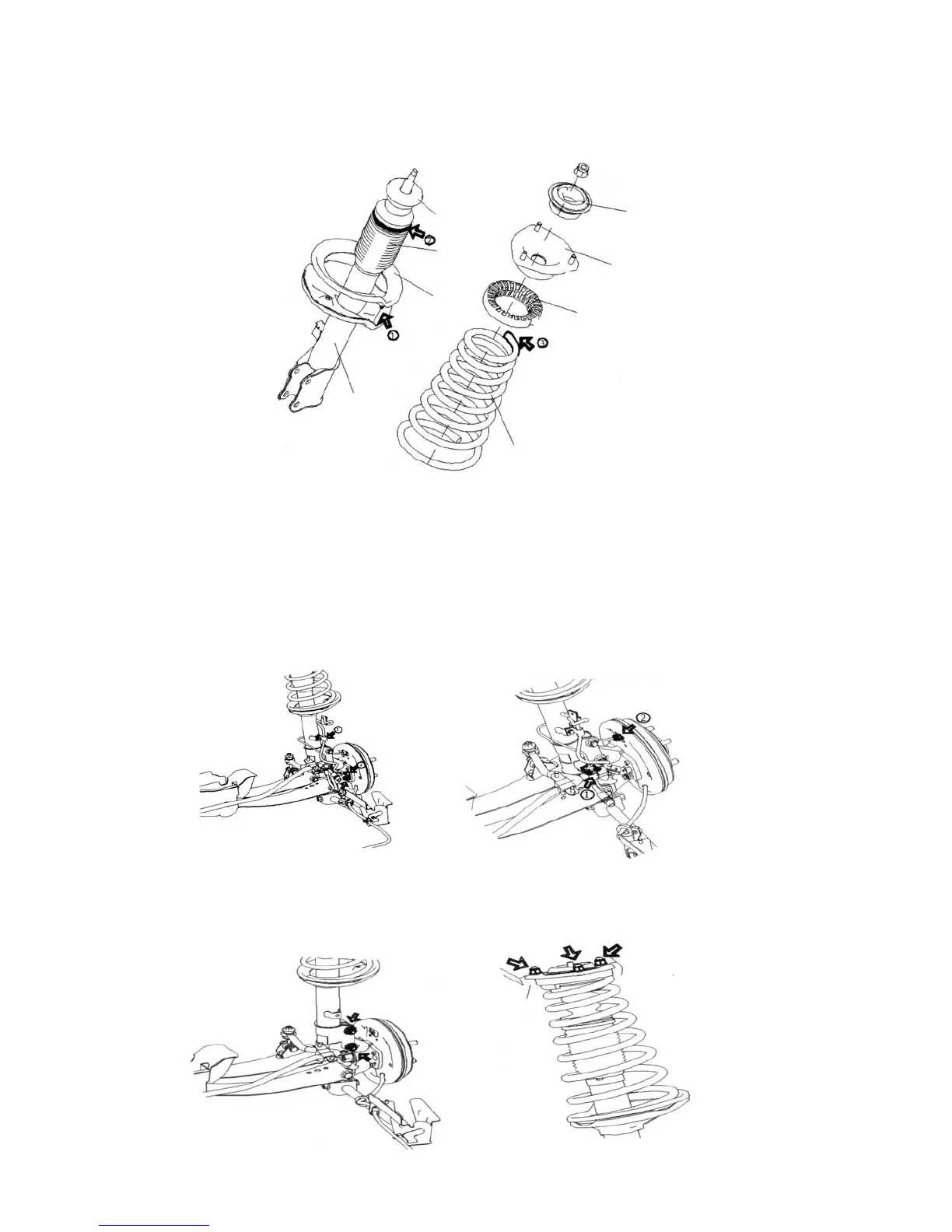

Components
Replacement
1. Remove the rear wheel
2. Remove ABS sensor
(1) Remove ABS rear wheel sensor retaining bolt. Remove the sensor.
(2) Remove the retaining bolt of ABS rear wheel sensor on rear shock absorber bracket
3. Separate brake pipe and rear strut assembly
Remove the elastic clip on the pipeline bracket attaching the brake pipeline
Cushion (Dumper)
Dust Prevent
Sleeve
Rear Suspension
Spring Lower
Insulator
Rear Left
Shock Absorber
Upper Mount
Cushion
Upper Mount
Rear Suspension
Spring Insulator
Rear Suspension Conical Spring
