Section 6 Oil Pump Oil Seal Replacement

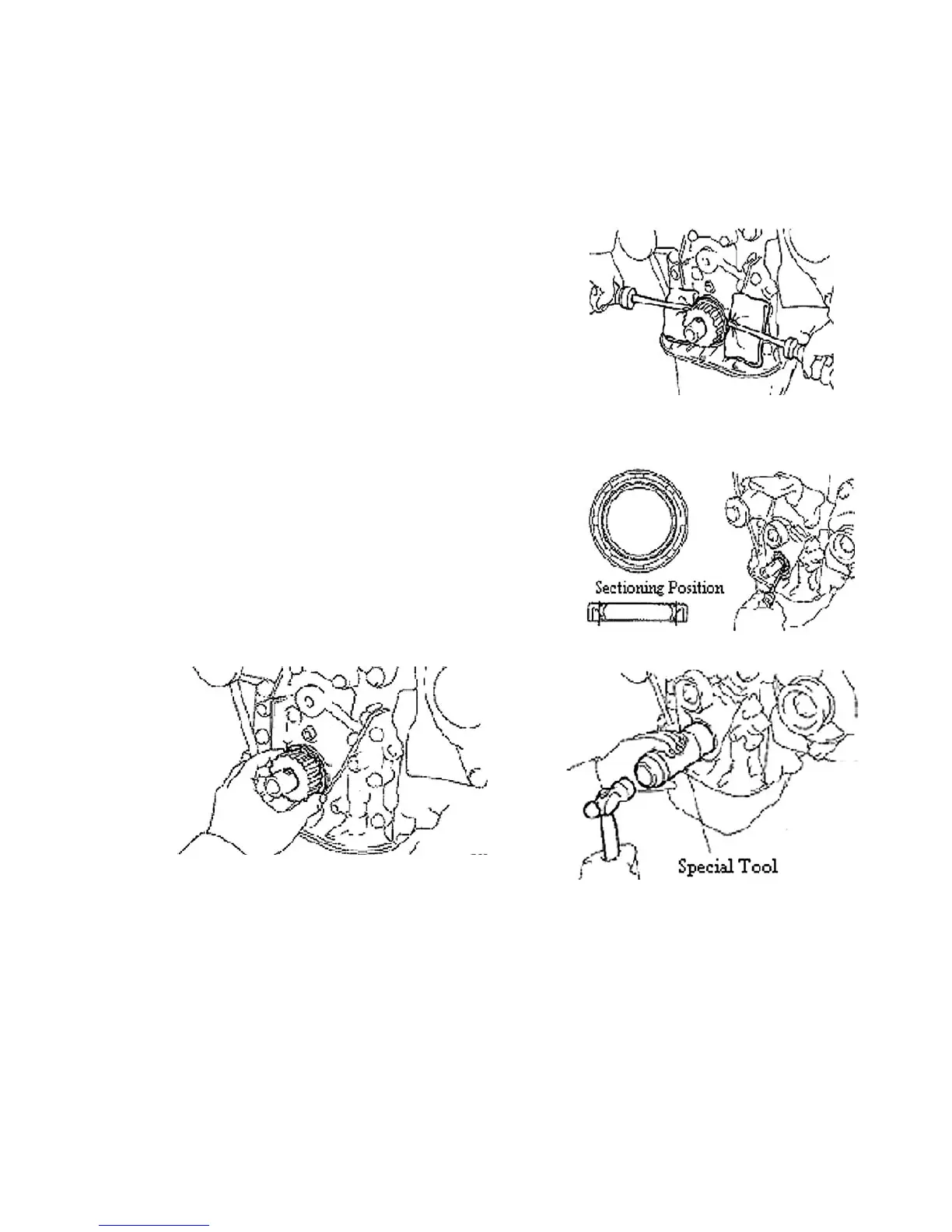

1. Pry with 2 screwdrivers. Detach crankshaft timing pulley.
See (Figure 74)
2. Remove oil pump oil seal. See (Figure 75)
(a) Using a knife, cut off oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
3. Install oil pump oil seal. See (Figure 76)
(a) Smear grease to a new oil seal lip.
(b) on the oil seal with hammer until the edge of the oil pump
case is filled with the seal packing.
4. Install crankshaft timing pulley. See (Figure 77)
(a) Align pulley set key to the key groove.
(b) Place the flange face inward. Install timing pulley.
5. Install timing belt
6. Check engine oil for leakage
