Section 2 Inside & Outside Trim and Accessories Removal and
Installation
(I) Front Bumper

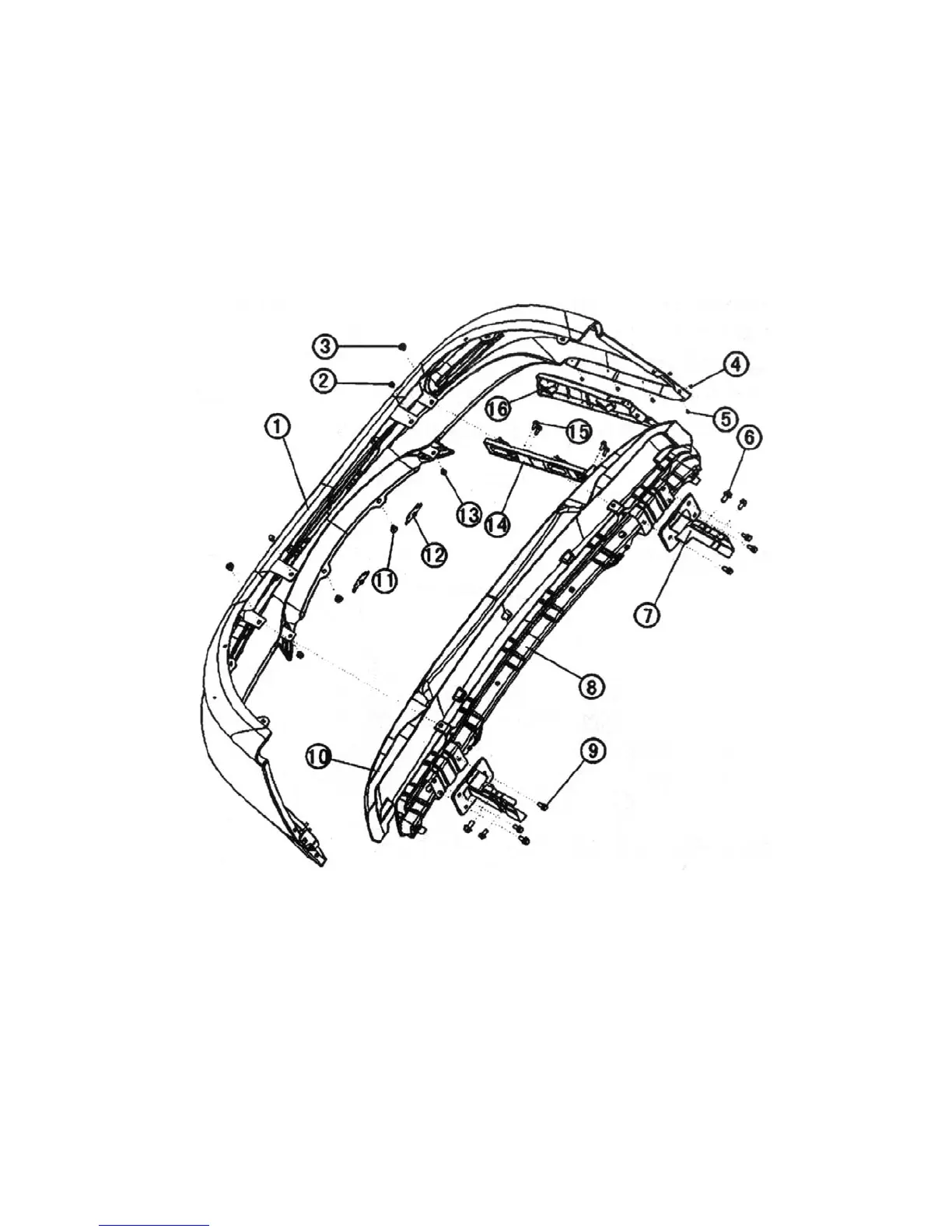

The structure is as shown in the figure below:
1. Front Bumper 2.Front Bumper Fixed Screw 3.Secondary Bumper Assembly Upper Buckle and Plug
4.Mounting Plate Cross Head Counter Sunk Self-tapping Screw 5.Mounting Plate Cross Head
Counter Sunk Self-tapping Screw 6.Front Bumper Mounting Bracket to Body Bolt 7.Front Bumper
Mounting Bracket Sub-assembly 8. Secondary Bumper Assembly 9.Front Bumper Mounting
Bracket to Secondary Bumper Assembly Bolt 10.Front Bumper Cushion 1 1.Secondary Bumper
Assembly Lower Buckle and Plug 12.License Mounting Plate Assembly 13.Secondary Bumper As-
sembly Lower Connecting Bolt 14.Front Bumper Mounting Plate Seat 15.Mounting Plate Seat Bolt
16.Front Bumper Mounting Plate
