Section 7 Brake Line

Components

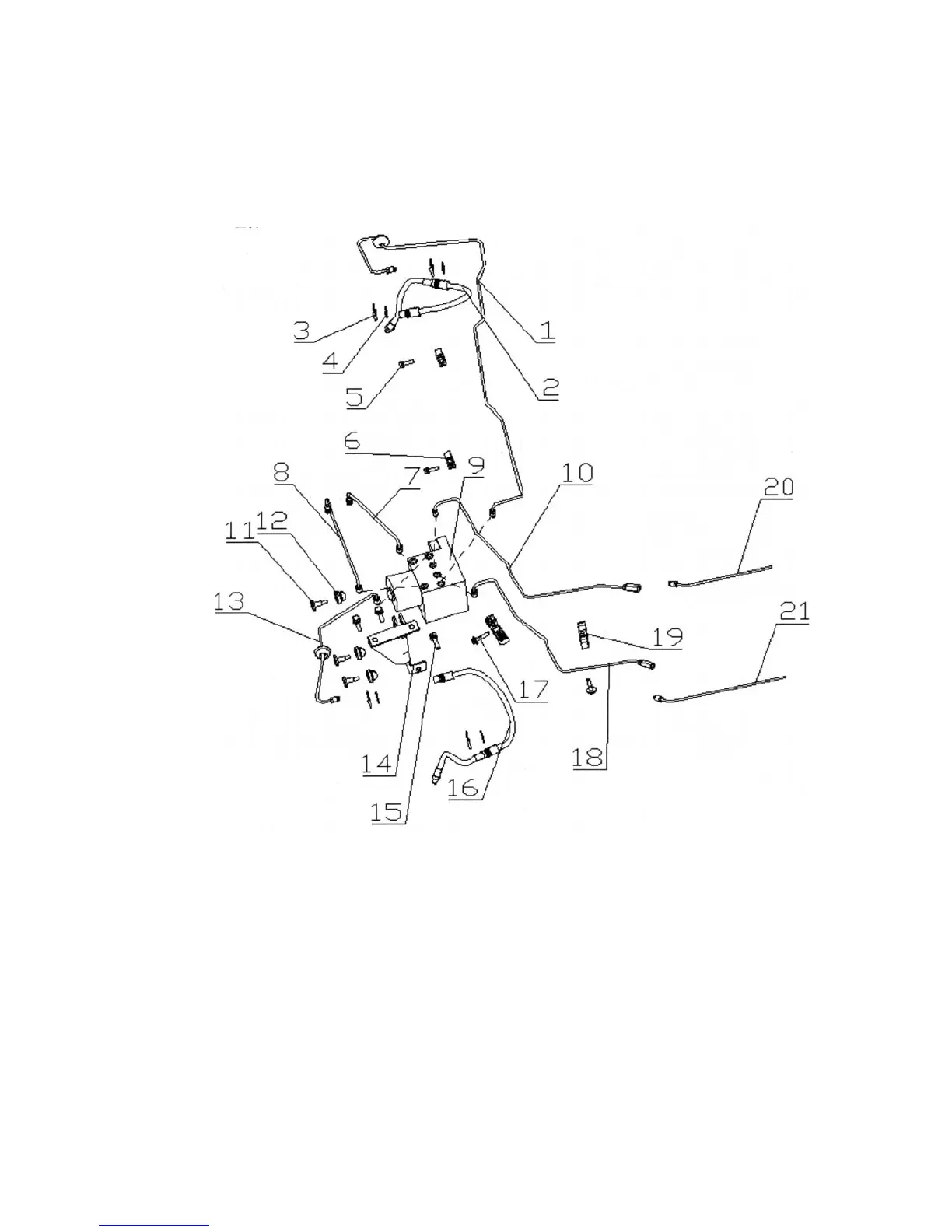

1. RF Brake Pipe Compo 2. Front Brake Hose Assembly 3. L-shaped spring Clip 4 U-shaped Clip

5. Hex Bolt Spring Washer and Flat Washer Compo 6. 5-pipe Clip 7. Brake Master Cylin-

der to Controller No.1 Brake Pipe Compo. 8. Brake Master Cylinder to Controller No.2 Brake Pipe

Set 9. HECU controller assembly 10. RR No. 1 Brake Pipe Compo. 11. Bolt 12. Insu-

lator 13. LF Brake Pipe Compo. 14. HECU Controller Bracket Assembly 15. Hexagon

Bolt Spring Washer and Plate Washer Compo. 17. Hex Bolt Spring W asher and Flat Washer Compo.

18. LR No. 1 Brake Pipe Compo. 19. 5-Pipe Clip 20. RR Brake Pipe Compo. 21.RL Brake Pipe

Compo. 22. Rear brake Hose Assembly 23. Rear brake No. 3 Brake Pipe Compo. 24: Single

Tube Clip 25. Hexagon Bolt Spring Washer and Big Flat Washer Compo. 26. Rear Brake No. 4

Brake Pipe Compo.
