Replacement
1. Drain the brake fluid in the brake pipeline
2. Separate rear left, right brake pipe compo.
(1) Loose union thread. Separate the rear left brake pipe compo. and rear left No. 1 brake pipe compo.
(2) Loose union thread. Separate the rear right brake pipe compo. and rear right No. 1 brake pipe
compo.
3. Remove the rear brake pipe No 3 & 4 compo.
(1) Loose the union thread connecting the hose. Remove E-shaped clip on the pipe bracket. Separate
the brake pipe.
(2) Remove pipe No. 3 & 4 compo.

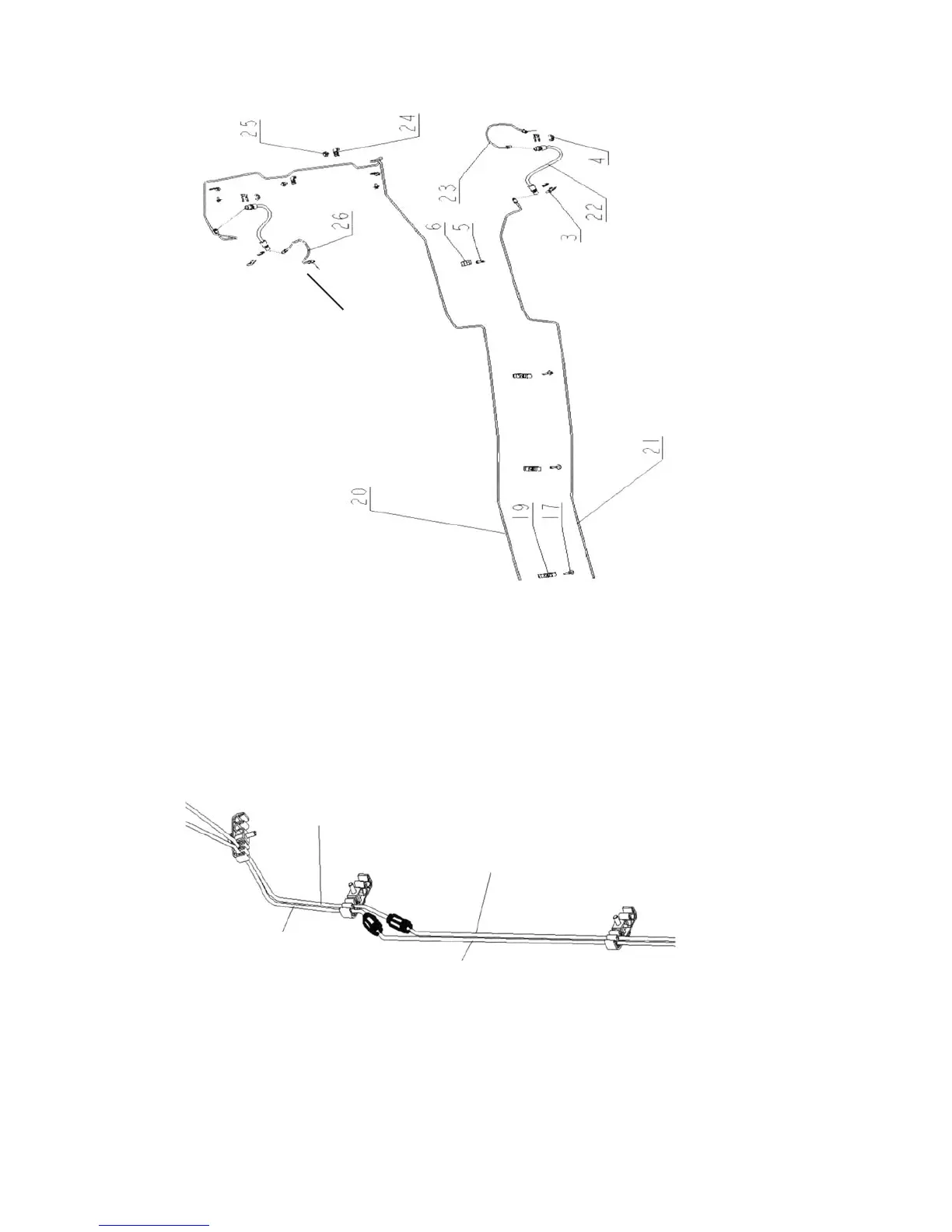

Connect RF Brake
Rear RH Brake Pipe Compo.
Rear LH Brake Pipe Compo.
Rear LH No. 1 Brake Pipe Compo.
Rear RH No. 1 Brake Pipe Compo.
