Geely CK MR479QA 2007 - Section 2 Oil Pump Assembly Replacement

36
Section 2 Oil Pump Assembly Replacement
1. Remove timing belt
2. Remove timing belt idler sub-assembly
3. Detach crankshaft timing pulley. See (Figure 74)
4. Remove the dipstick guide
5. Detach oil sump sub-assembly. See (Figure 83)
6. Detach oil strainer sub-assembly. See (Figure 84)
7. Detach oil pump assembly. See (Figure 85)
8. Remove oil pump oil seal
9. Install oil pump oil seal
10. Install oil pump assembly
11. Install oil strainer sub-assembly
12. Install oil sump assembly. See (Figure 86)

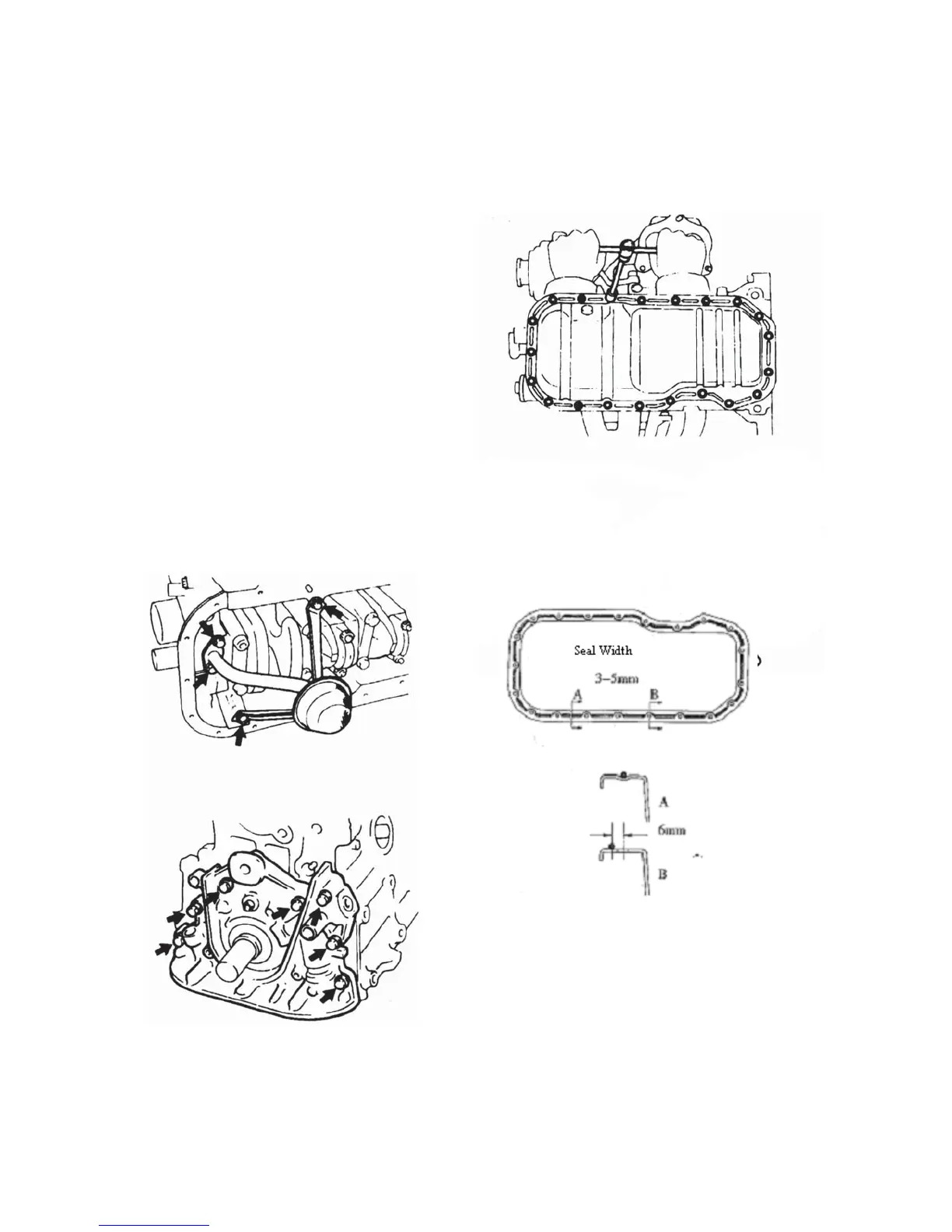

Figure 84
Figure 85
Figure 83
Figure 86
