Section 3 Oil Filter Replacement

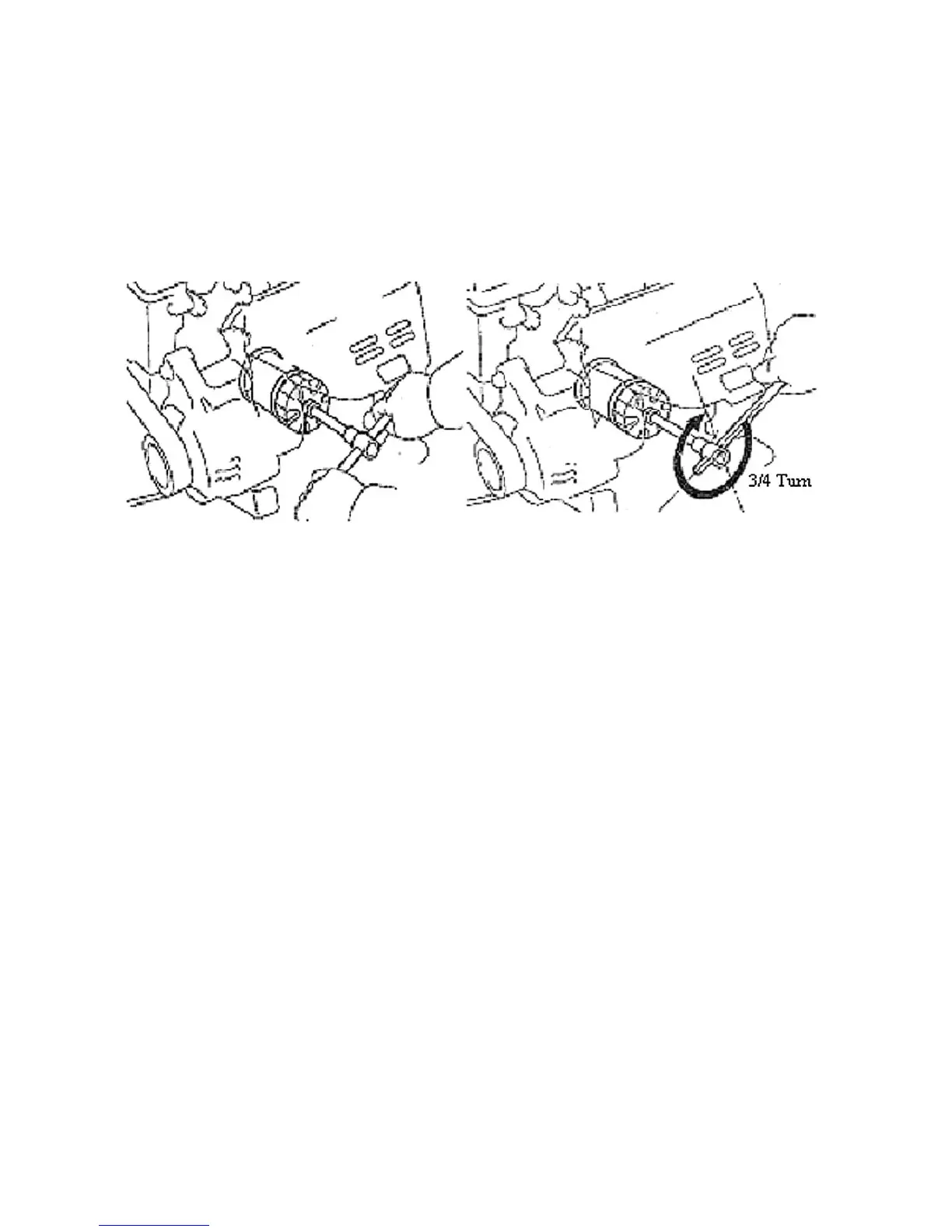

1. Detach oil filter sub-assembly. See (Figure 88)
2. Install oil filter sub-assembly. See (Figure 89)
Figure 88 Figure 89
3. Install drain plug
Clean and use new washer to install drain plug.
Torque: 54N. m
4. Oil fill
Capacity:
Oil refill amount with the filter replaced: 3.0L
Oil refill amount without the filter dry fill replaced: 2.80L
Dry fill: 3.3L
5. Check oil for leakage
