Section 6 Left & Right Trailing Rod Assembly

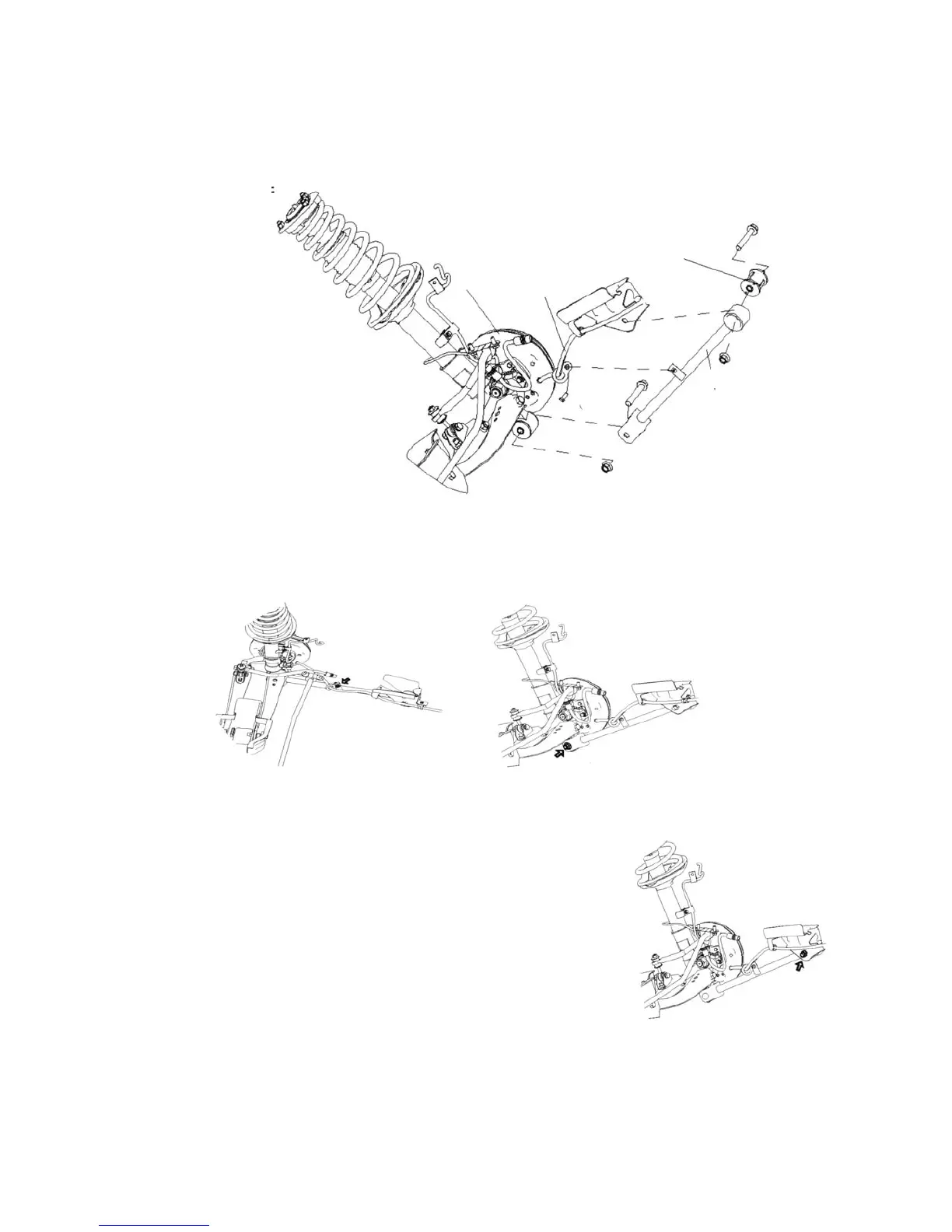

Components
Replacement
1. Separate parking brake cable assembly
Remove the parking brake cable set bolt on trailing rod
2. Remove the trailing rod assembly
(1) Remove the bolt connecting the trailing rod assembly and rear brake assembly.
(2) Remove the bolt connecting the trailing rod assembly and vehicle body
3. The parts installation is in the reverse order of the removal
Caution:
(1) The torque of the bolt attaching the trailing rod assembly to the body: 81~ 96N.m
(2) The torque of the bolt attaching the trailing rod assembly to the rear brake assembly:
81~96N.m
(3) The above bolts shall be tightened to the specified torque at Non-load.
(4) Check rear wheel alignment, adjust it as necessary
Left Brake
Manual Brake Cable
Trailing Rod Bushing
LR Trailing
Trailing Rod
