Chapter 3 Clutch Control System
Section 1 Clutch Control System
Clutch operating system description
This model is equipped with hydraulic and cable clutch control system, respectively used for 1.3L engine
1.5L engine.
PROBLEM SYMPTOMS TABLE
Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely
cause of the problem. Check each part in order. If necessary, replace these parts.
Section 2 Clutch Cable Control Mechanism

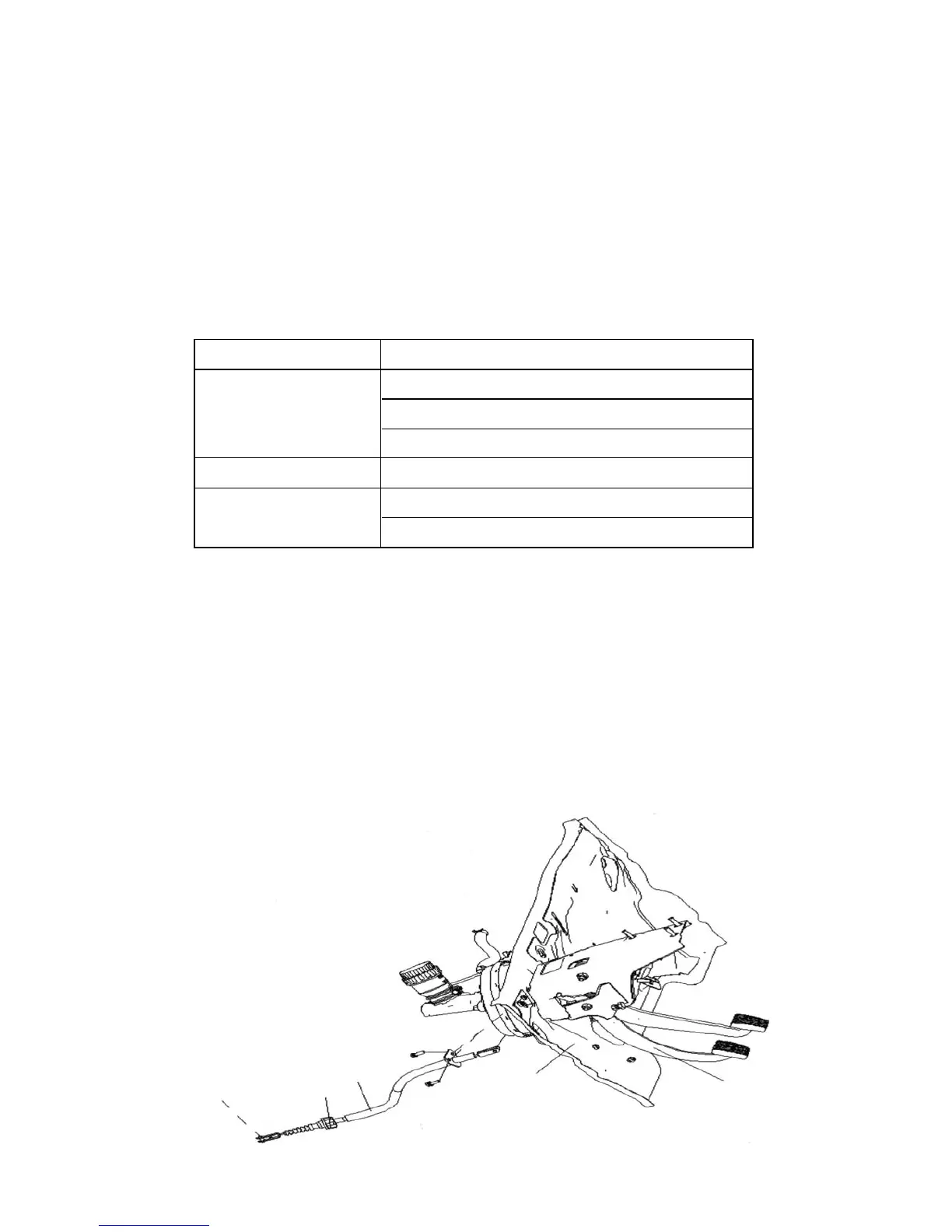

Components
Symptom Suspected Area
1. Clutch pedal position (Too low)
2. Control mechanism (Stagnation)
3. Clutch pedal free stroke (too large)
Clutch does not release 1. Hydraulic pipe line (Air in line)
1. Control system (Incorrect assembly & adjustment)
2. Clutch assembly (Faulty)
Clutch noisy
Clutch slips
Connect The
Clutch Fork
Clutch Cable
Assmbly
Adjusting Nut
Cowl Baffle
Clutch and Brake
Pedal Assembly
To Next Page
