92
Adjustment
1. Check and adjust clutch pedal height
The clutch pedal height should be 180~186 mm. Adjust the pedal by adjusting bolts.
2. Check and adjust clutch pedal stroke and free stroke
(1) The clutch pedal stroke: 134~142mm
(2) The clutch pedal free stroke: 10~30 mm
If the clutch pedal stroke and free stroke are not within specification, adjust it by adjusting the location of
the adjusting nut on the clutch cable. Re-adjust the clutch pedal height if necessary.
3. Check that the clutch pedal operates in flexible and reliable way
Notice:
(1) Make sure the clutch is fully applied and completely released when control the clutch
pedal.
(2) The clutch pedal must have certain free stroke. Otherwise, the full application of the
clutch may be impacted
(3) Tighten the lock nut after adjustment

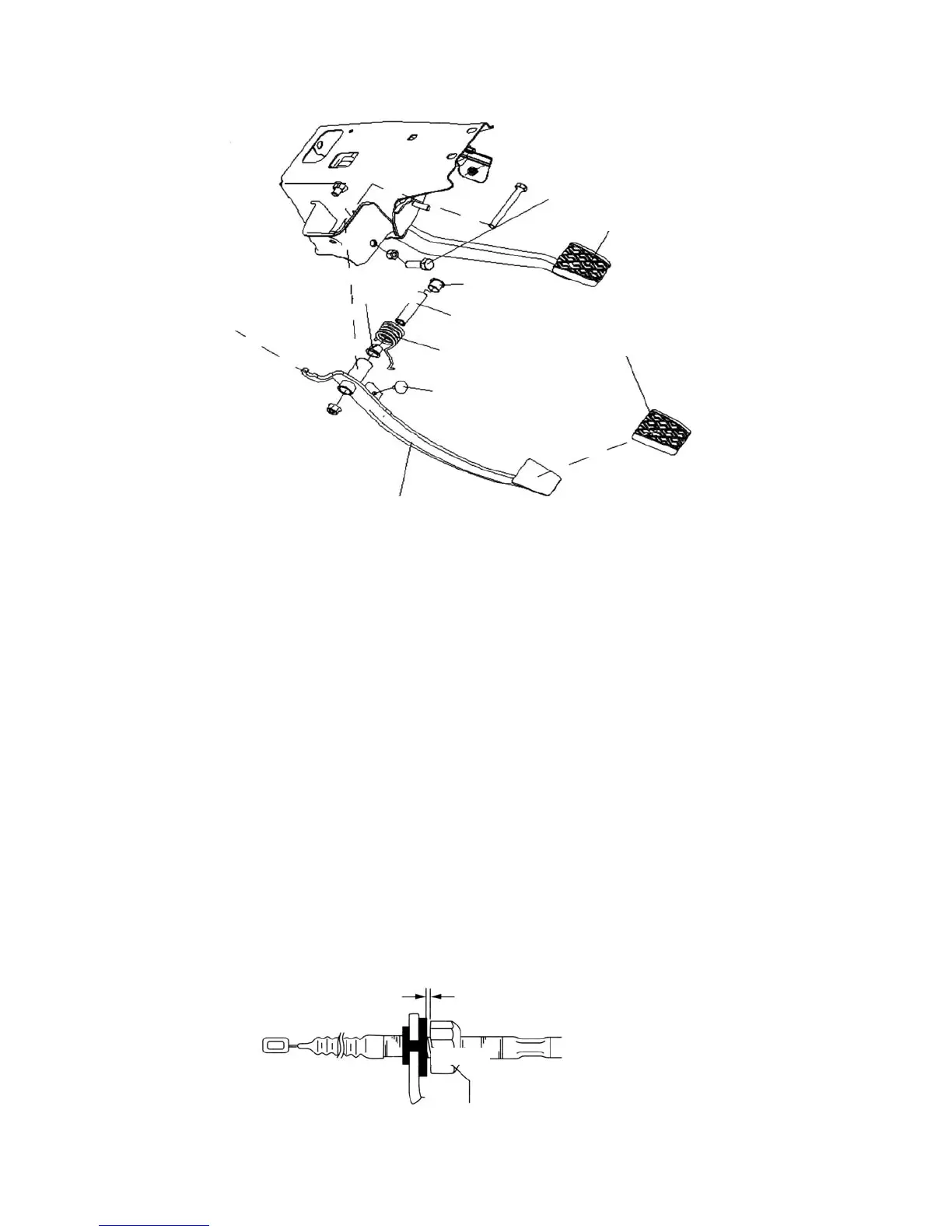

Connect The
Clutch Cable
Bushing
Bushing
Adjusting Bolt
Brake Pedal Assembly
Sleeve
Clutch Pedal Torsion Spring
Retainer
Pedal Mat
Clutch Pedal Assembly
Clutch
Pedal
Bracket
Assembly
Adjusting Nut
