115

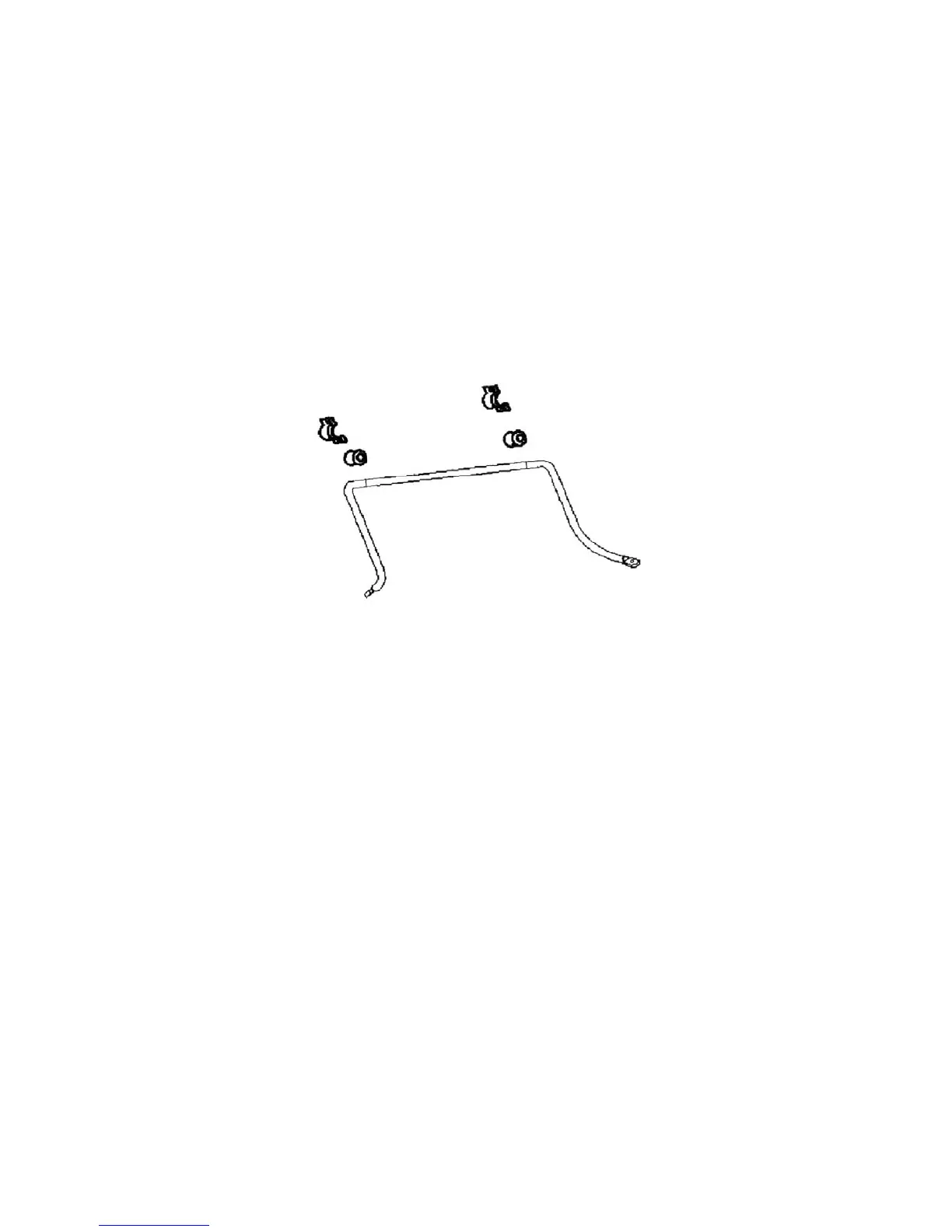

5. Install the front stabilizer bar
Install stabilizer bar, 2 rubber bushings, the front stabilizer bar clamp and 4 bolts.
Torque: 50~60N.m
Notice:
(1) Align the inner rubber bushing with the mark on the stabilizer bar.
(2) The 4 bolts connecting the stabilizer bar clamp and front stabilizer bar support
frame welding assembly differ in length. The two short ones are close
6. Install stabilizer bar link rod assembly
(1) Attach the stabilizer bar link rod to the stabilizer bar with nuts.
Torque: 40~50 N.m
(2) Attach the stabilizer bar link rod to the front shock absorber bracket with nuts.
Torque: 40~50 N.m
to engine.
