Geely CK MR479QA 2007 - Page 144

137

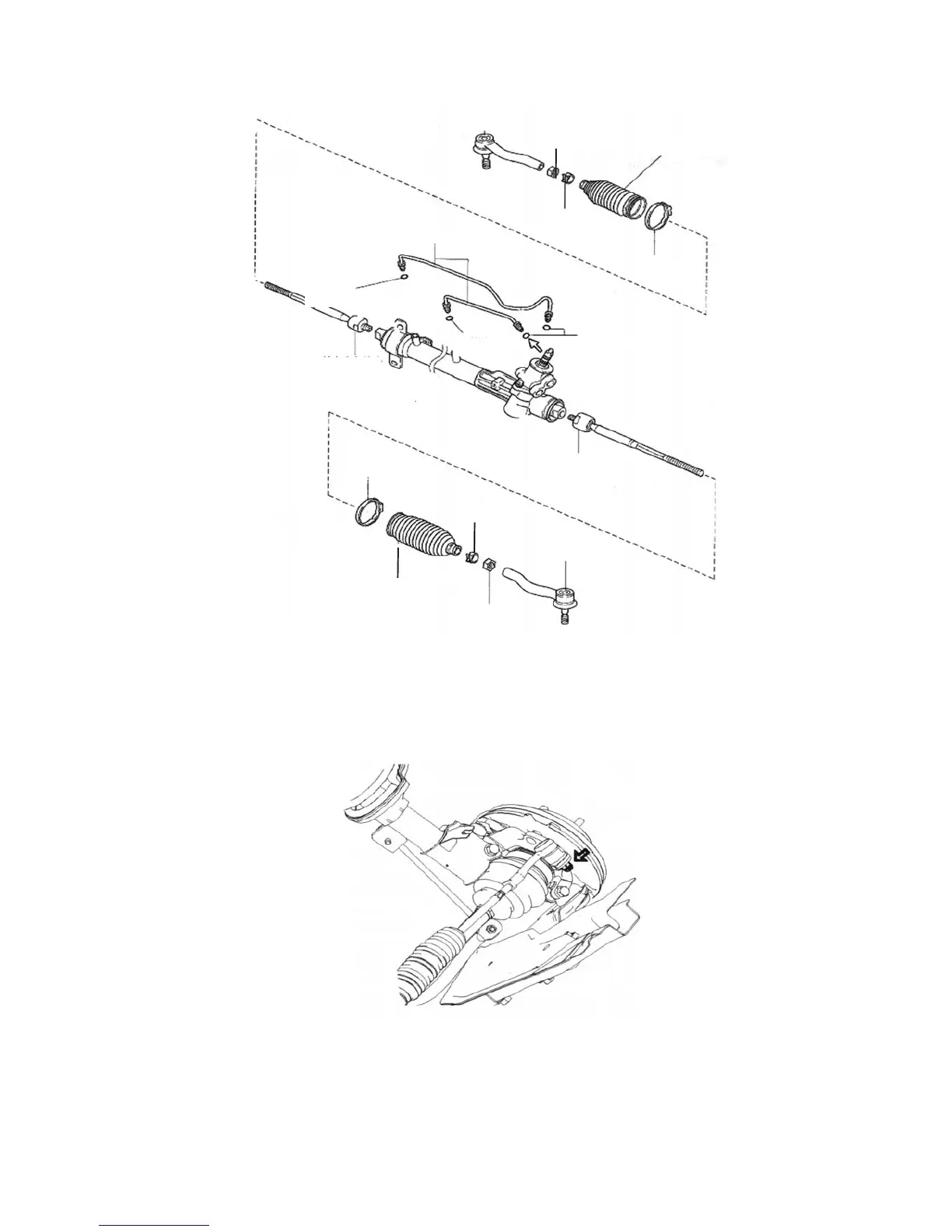

Tie Rod RH Ball Stud Pin
Lock Nut
Wire Clip
No.1 Boot
Band
Pipe
O-ring
O-ring
O-ring
Band
Wire Clip
No. 2 Boot
Lock Nut
Tie Rod LH Ball Stud Pin
Joint Sub-assembly
Joint Sub-assembly
Replacement
1. Drain the power steering system fluid
2. Separate the tie rod from the steering knuckle
(1) Remove the cotter pin, loosen the groove type lock nut
(2) Separate the tie rod ball stud joint from the steering knuckle taper hole
