163
II. STARTER ASSEMBLY REPLACEMENT (MR479Q, MR479QA, MR481QA)

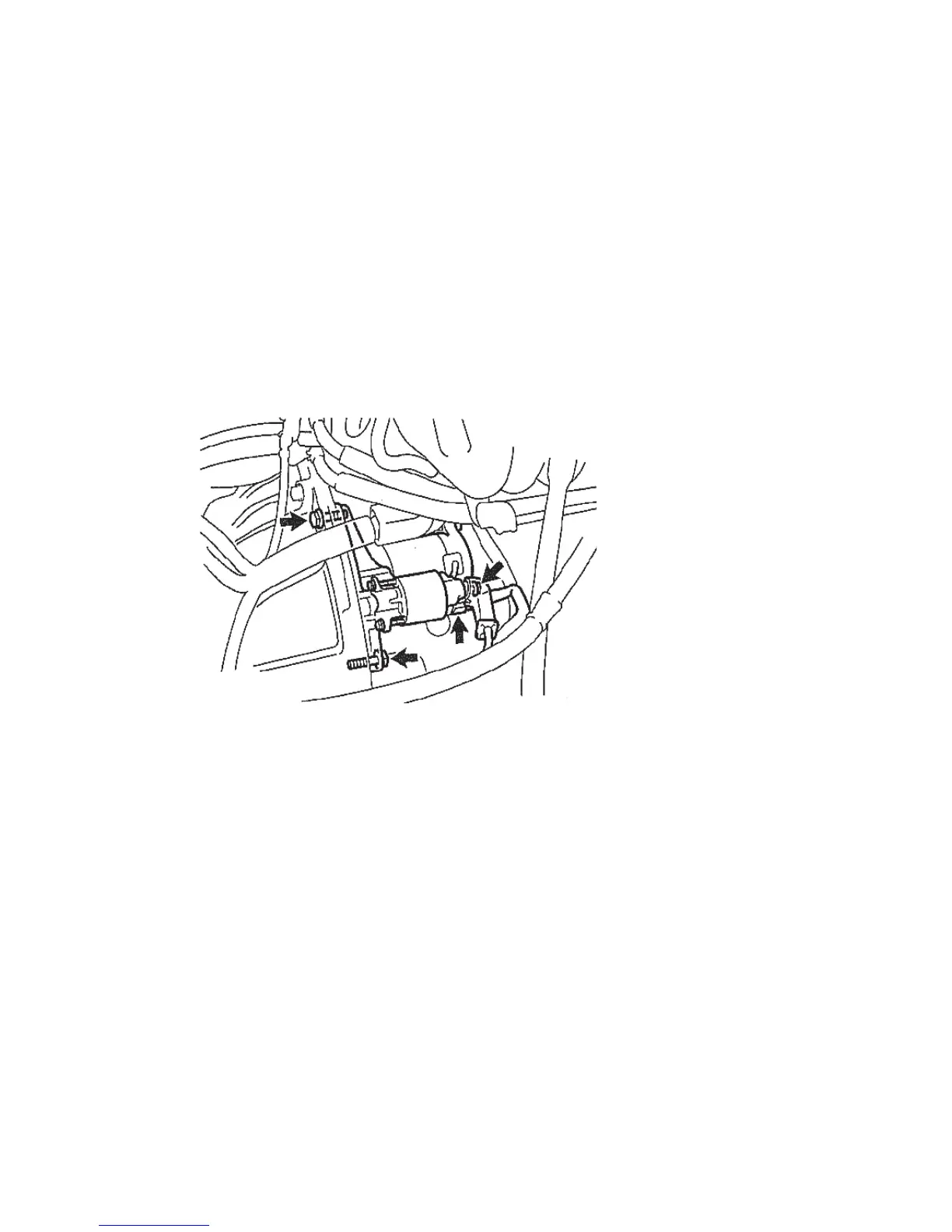

1. REMOVE STARTER ASSEMBLY
(a) Disconnect the starter connector.
(b) Remove the nut, and disconnect the starter
cable.
(c) Remove the 2 bolts and the starter
assembly.
2. INSTALL STARTER ASSEMBLY
Install according to the inverted order of removal.
Torque:
Bolt 37N.m (378kgf.cm, 27ft.lbf)
Harness 9.8N.m(100kgf.cm, 7.0ft.lbf)
