168
7. INSPECT CHARGING CIRCUIT WITHOUT LOAD
(a) If a battery/starter tester is
available, connect the tester to the
charging circuit as per instructions.

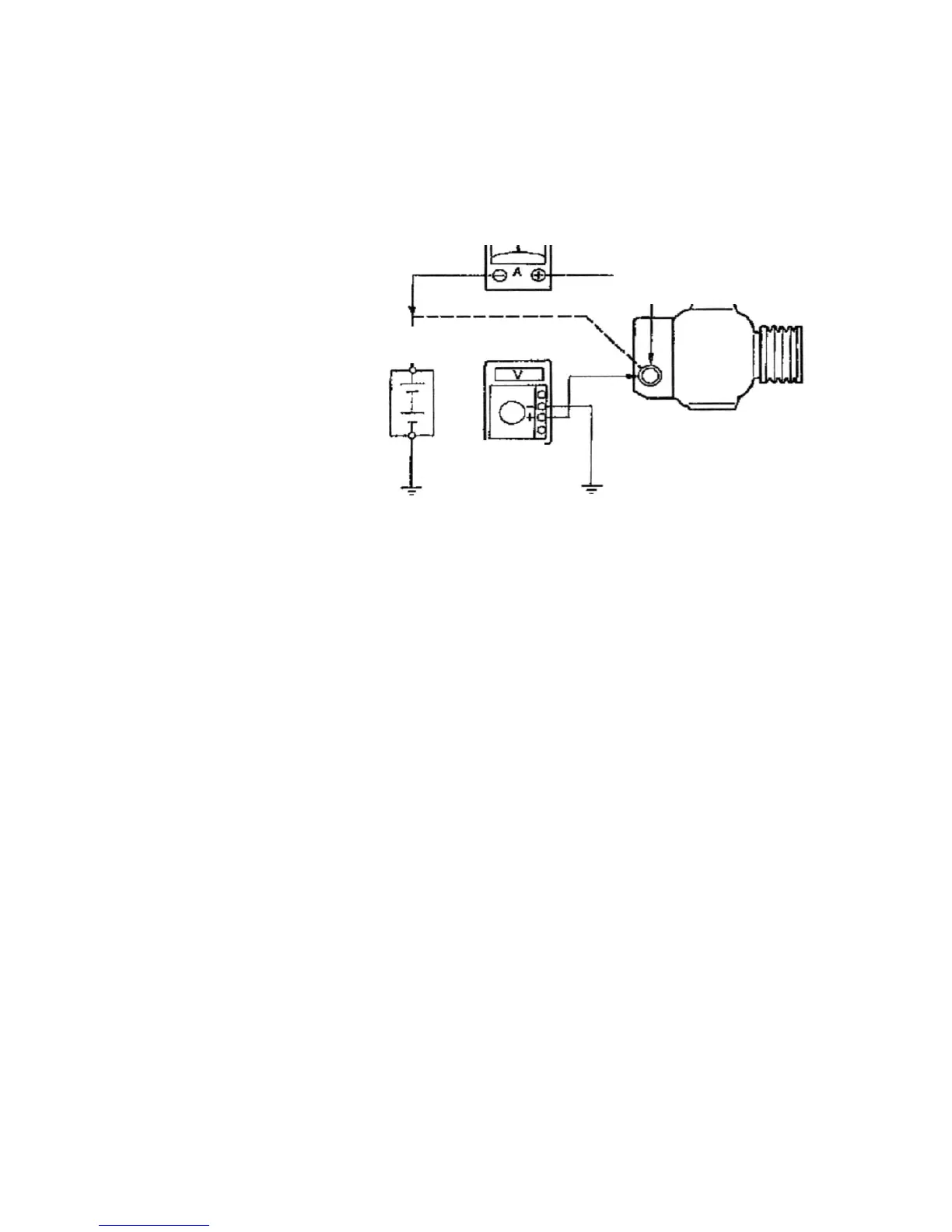

(b) If a tester is not available, connect
an ammeter and voltmeter to the
charging circuit as follows.
1 Disconnect to the wire from
terminal B of the alternator and
connect it to the negative (-) pole
of the ammeter.
2 Connect the positive (+) pole of the
ammeter to terminal B of the
alternator.
3 Connect the positive (+) pole of the voltmeter to terminal B of the alternator.
4 Ground the negative (-) pole of the voltmeter.
(c) Check the charging circuit
 With the engine running from idle to 2,000 rpm, check the reading on the ammeter.
Standard amperage: 10A or less
Standard voltage: 13.2V---14.8V
8. INSPECT CHARGING CIRCUIT WITH LOAD
(a) With the engine running at 2,000 rpm, turn on the high beam headlights and place the blower switch at "4".
Check the reading on the ammeter.
Standard amperage: 20A or more
(b) HINT:
 If the ammeter reading is less than standard amperage, repair the alternator.
 If the battery is fully charged, the indication value will sometimes be less than standard amperage.
Ammeter
Disconnect Wire
from Terminal B
Battery
Voltmeter
Alternator
To Next Page
