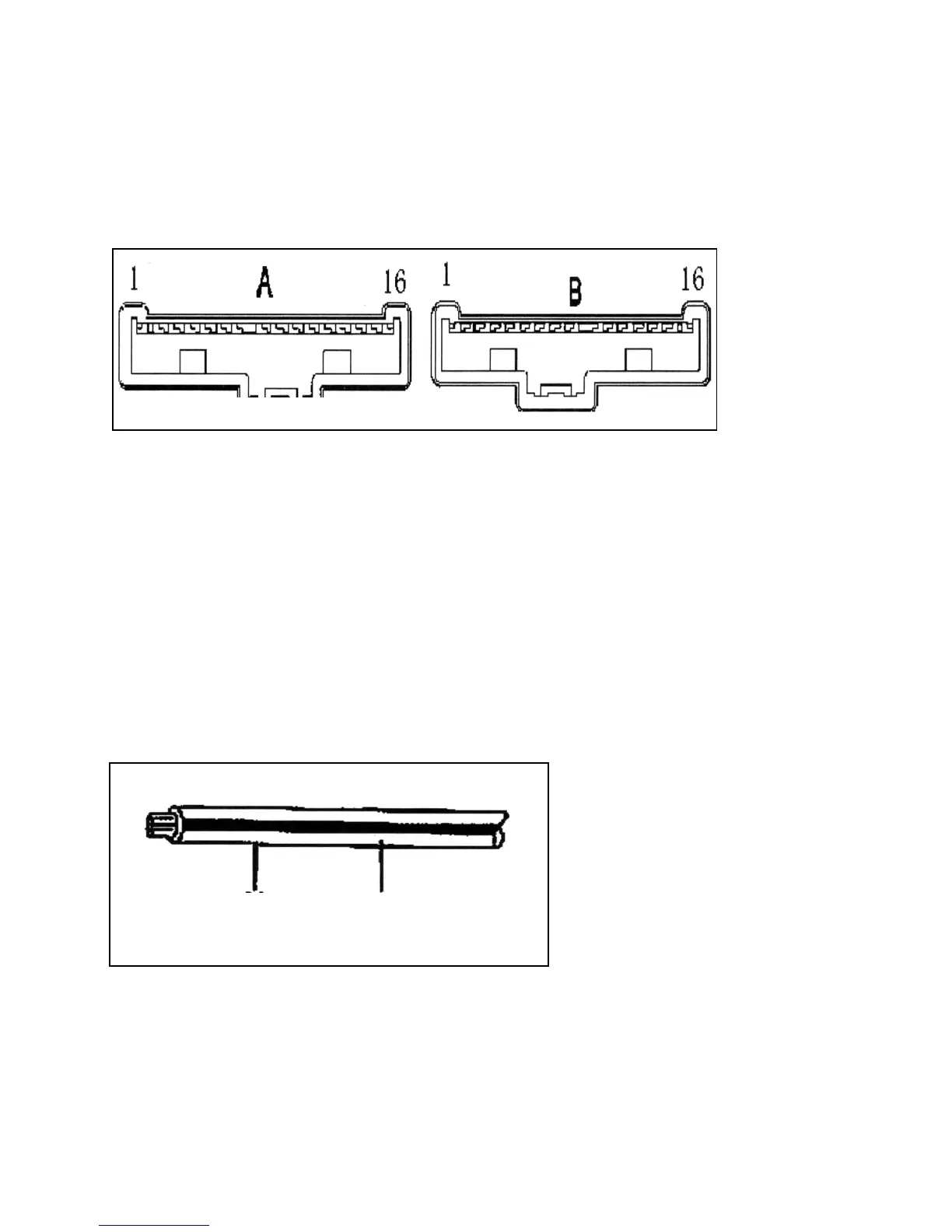

II. LOCATION OF HARHESS MULTI-PIN PLUG-IN TERMINAL
(1) HINT:
R -- RE Bl -- BLUE Y -- YELLOW
B -- BLACK P -- PIN G -- GREEN
W -- WHITE O -- ORANGE Gr -- GRAY
Br -- BROWN V -- VIOLETL g -- LIGHT GREEN
The first letter represents the base color
The second letter represents the color of the stripe
e.g. VG (violet & green) V-violet, G-green
Color of connector A is white, and B is black
V
G
