II. DETAILED SOLUTION PROCEDURE
1. THE WHOLE COMBINATION METER
DOSE NOT OPERATE.

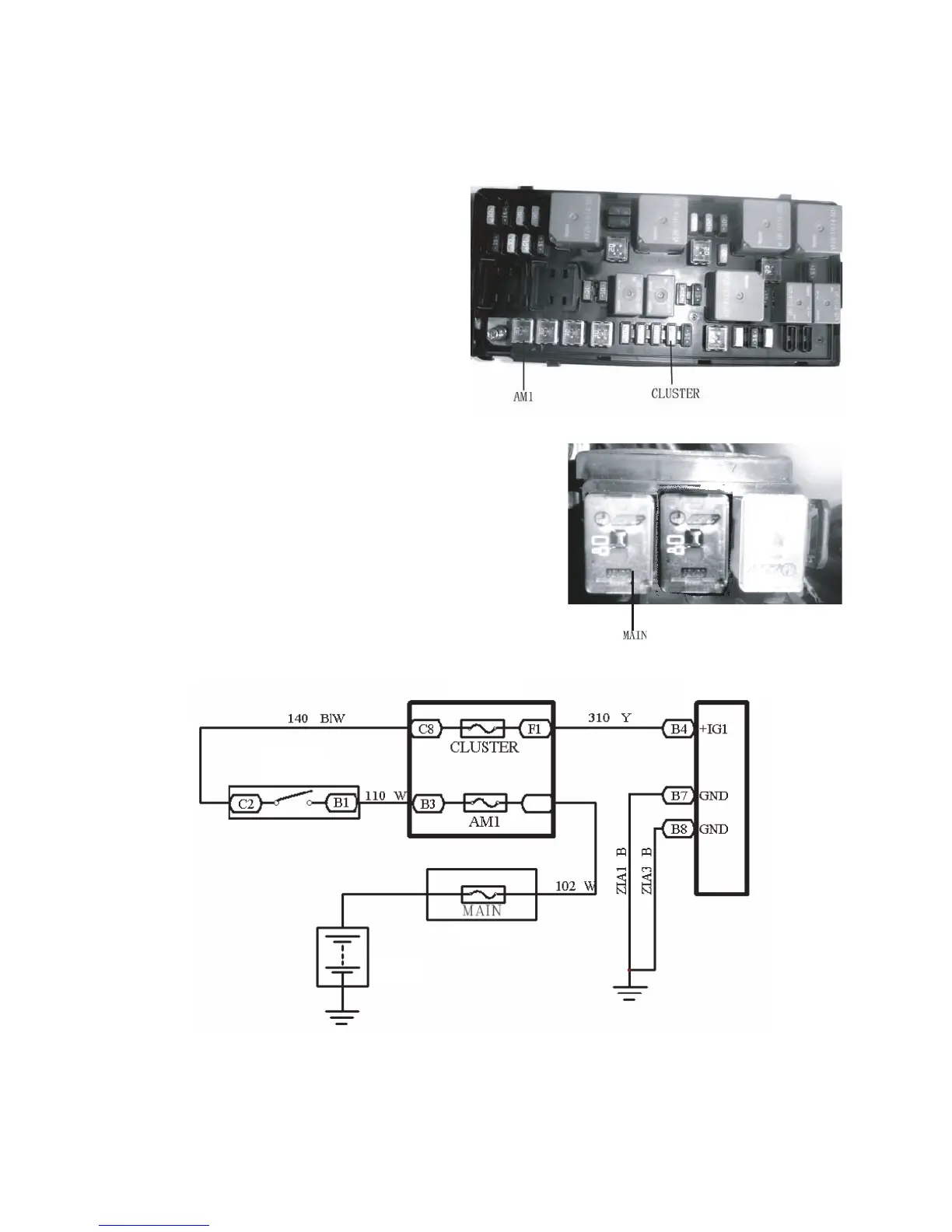

(a) Inspect fuse
1 Check fuse CLUSTER (10A) in the main fuse
box for continuity.
2 Check fuse AM (30A) in the main fuse box
for continuity.
3 Check fuse MAIN (80A) in the fuse box for
continuity.
Result and solution: If a certain fuse is burnt, replace a fuse
with the same capacity.
Ignition Switch
Main Fuse Box
Combined Meter Assembly
Battery
Fuse Box
To Next Page
