2Disconnect the positive (+) and negative (-) terminal cables from the battery and remove the battery from
the vehicle.
3The airbag assembly shall be deployed according to the following procedures.
(2) Driver airbag assembly
1 Remove the knee bolster.
2 Remove the connector (yellow) that connecting the lower end of the clock spring with the wire harness

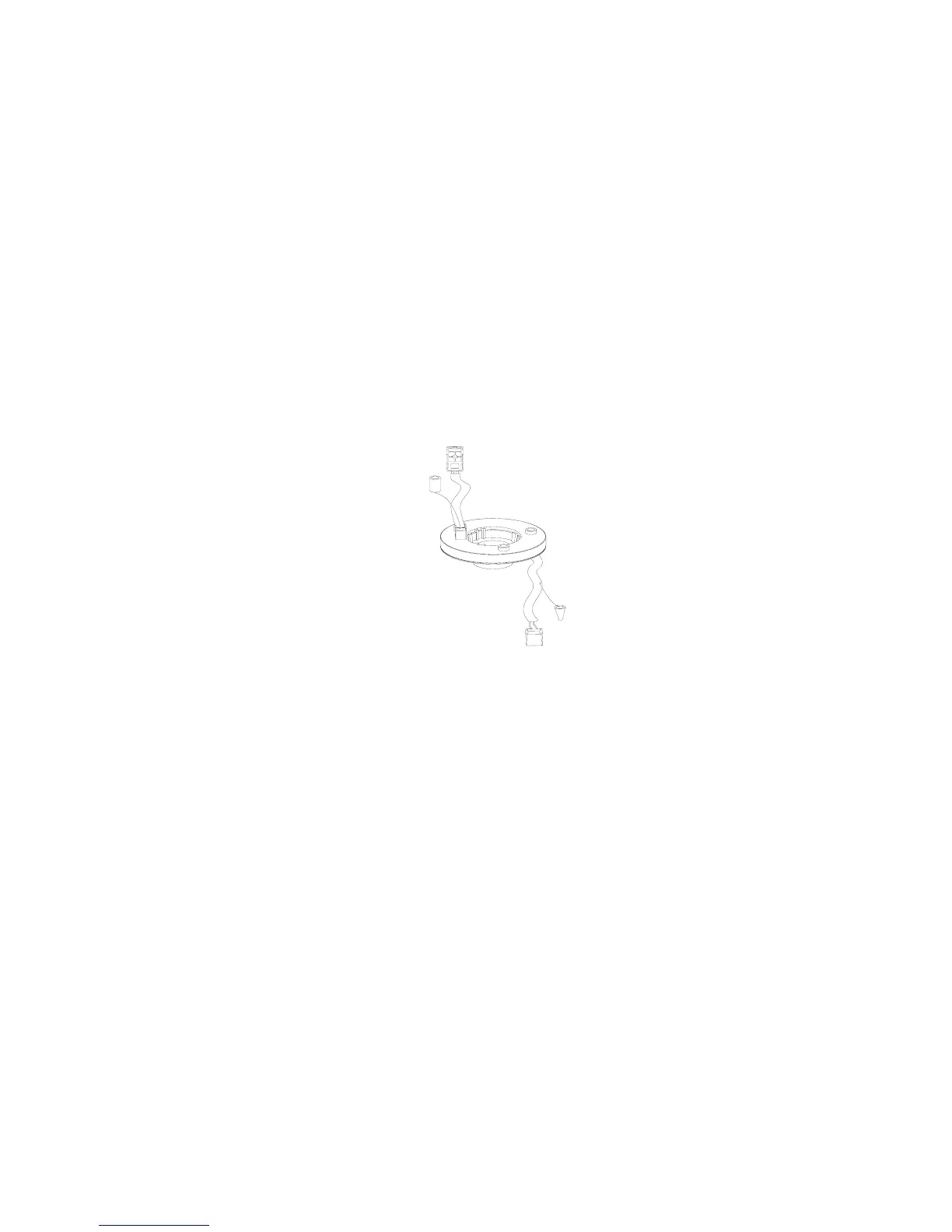

of the instrument panel (see the figure below).
3 Tie two 6m plus wire harnesses for deployment to the adaptor wire harness of the airbag, and wrap the
connecting points with insulating tape for insulation. The other ends of the wire harness for deployment
are connected to each other (short circuited). Unexpected deployment resulted from static electricity
shall be prevented.
4 From the yellow connector of the clock spring, lead the airbag adapter wire harnesses out of the vehicle
by means of the wire harnesses for deployment (see the figure below).
5 To restrain the noise, close all the windows and doors and put on the vehicle cover.
NOTICE
Work must be started 60s after the positive (+) and negative (-) terminal cables are detached from battery.
NOTICE
Remove the connector of the clock spring from the wire harness of the instrument, the connector will be
short circuited automatically, which can avoid the possible serious accident resulted from the deployment of
the diver airbag assembly due to static electricity.
NOTICE
The glass will likely break up if there is crack. Vehicle covers shall be put on.
