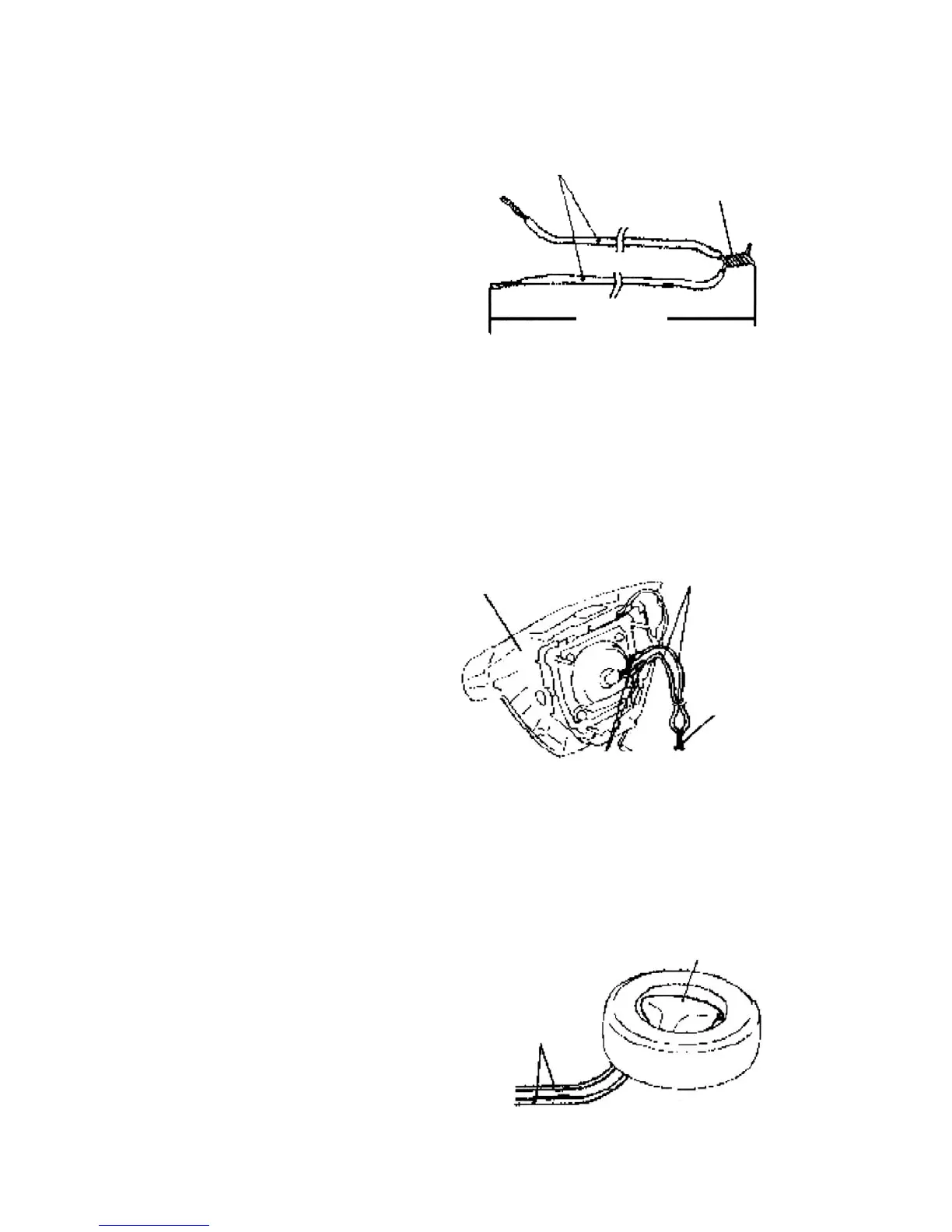

2 Prepare two 6m plus wire harnesses for deployment, connect the other two ends to avoid unexpected
deployment in case of static electricity (see the figure below).
3 Touch the body of the vehicle with hands for static electricity elimination.
NOTICE:
The above-mentioned procedures can prevent the unexpected deployment due to static electricity and shall
therefore be performed strictly.
4 Cut off the wire harnesses of the driver airbag assembly and connect them with the two wire harnesses
for deployment, and make sure to wrap up the connecting location with insulating tape for insulation (see
the figure below).
5 Install the unused bolts on to the inside bolt of the driver airbag assembly, and tie a thick wire securing the
wheel rim.
6 Pass the deployment wire harness of the driver airbag assembly through an old tire with rim, and fix
upwards the driver airbag assembly by means of the wire connected to the bolts, etc (see the figure
below).
Wire Harness
for Deployment
Short Circuit Locatio
