VIII. ABS ECU Connector Pin Layout

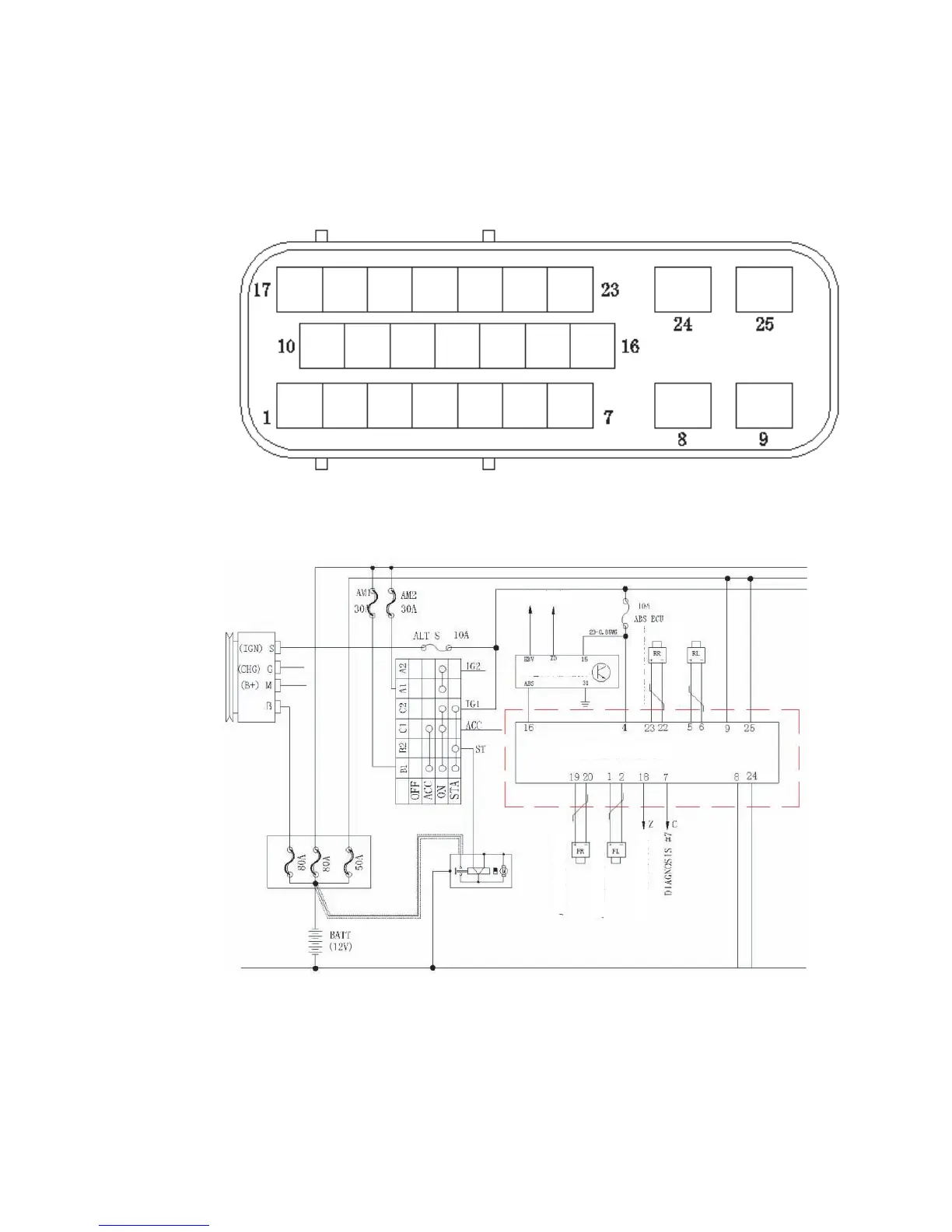

ABS ECU Connector (End Views)

Electrical Wiring Diagram

Combination Meter

ABS Warning Light

Drive Module

ABS ECU

ABS RR Wheel Sensor

ABS LR Wheel Sensor

ABS RF Wheel Sensor

ABS LF Wheel Sensor

Brake Lamp Switch
