31. Install timing belt cover
Torque: 9.3N. m
32. Install generator assembly

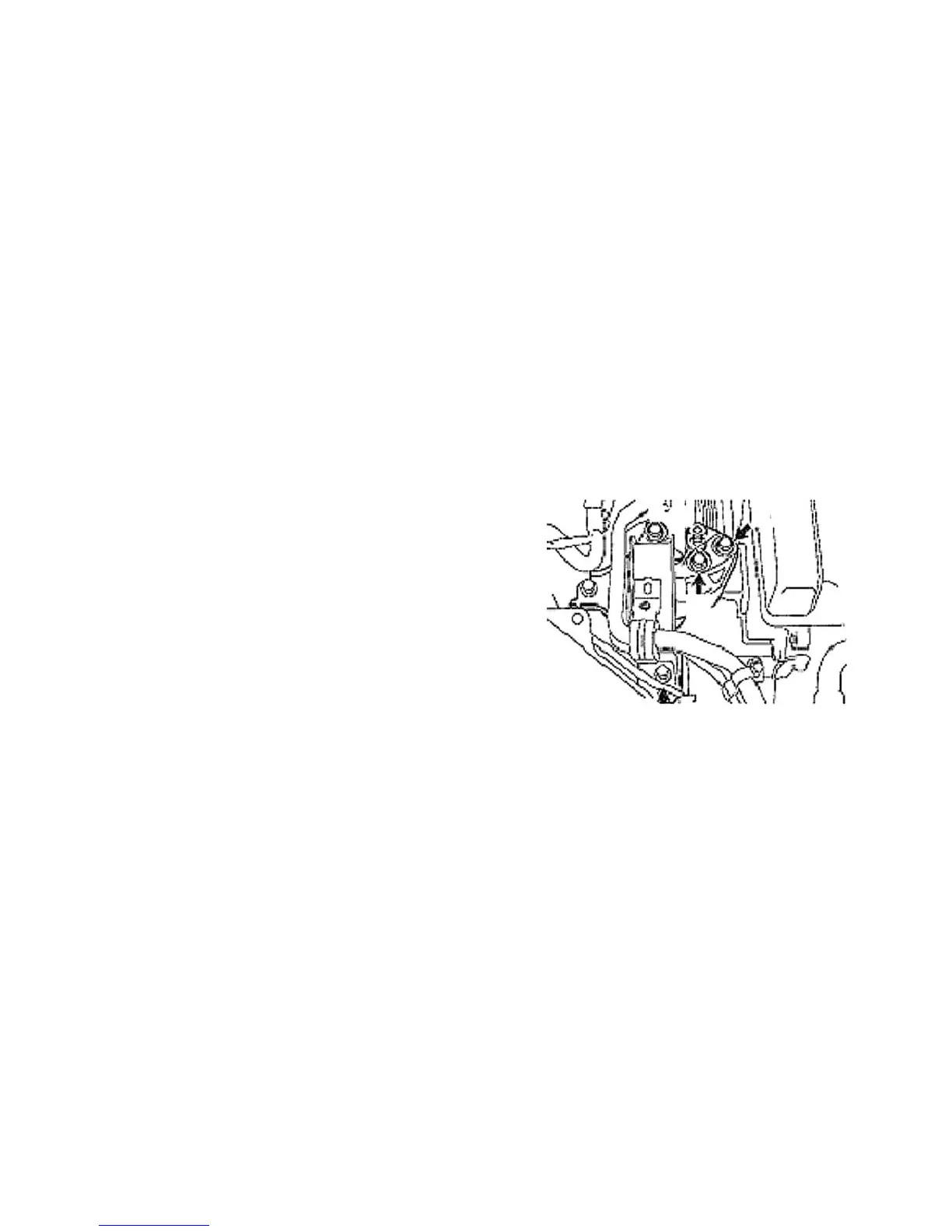

33. Install right engine mounting bracket. See (Figure 67)
34. Install cylinder head cover sub-assembly
(a) Install 2 ventilation PCV hoses to the cylinder head cover.
(b) Connect the generator wire.
(c) Install the wire clip.
(d) Connect A/C compressor switch connector.
35. Install water pump pulley
36. Install power steering pump V-belt
37. Install A/C compressor to crankshaft pulleyV-belt
38. Install generator V-belt
39. Install left & right rear mounting bracket of engine.
40. Install ignition coil and high voltage cable
41. Hoist the engine back into the compartment
42. Install propeller shaft
43. Install air filter assembly with hose
44. Install oil pipe and water hoses
45. Install left and right front tires.
46. Check engine oil for leakage
47. Install all the wire harnesses and the cables on the engine connected to car body
Figure 67
