(8) Make sure the warning light of the airbag system on for 6s and off.
If the warning light of the airbag system is not as specified, it means system fault. Check with the OBD (on-
board diagnostics).
4.Rear Seat Belt Removal / Installation
Warning
Do not remove retractor.
(1) Fold rear seat back.
(2) Remove B pillar upper inside trim.
(3) Remove rear trunk partition.
(4) Remove bolt.
(5) Remove rear seat belt.
(6) The installation is in the reverse order of the removal.
5.Rear Seat Belt Buckle Removal / Installation
(1) Remove rear seat cushion.
(2) Remove the bolt.
(3) Remove rear seat belt buckle.
(4) The installation is in the reverse order of the removal.

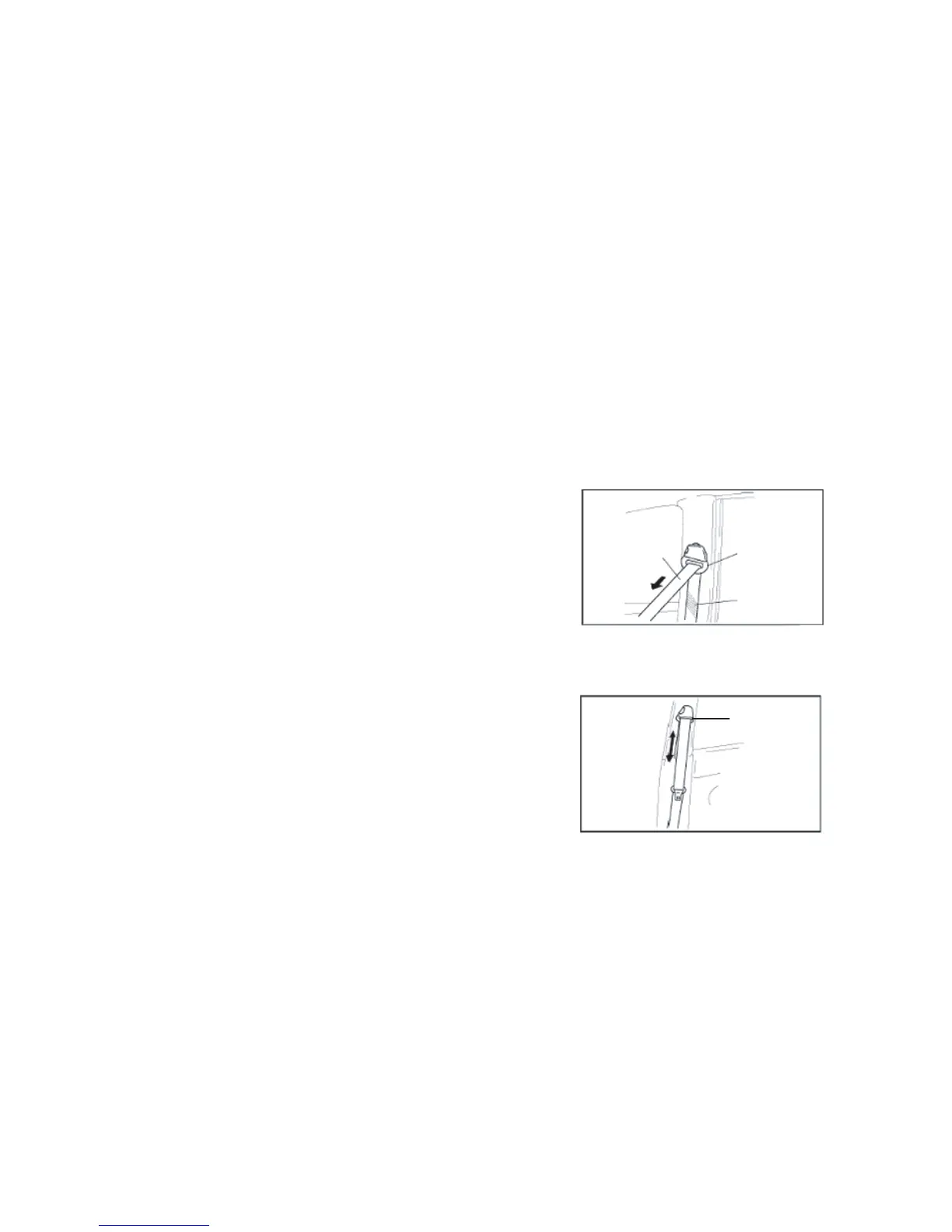

6. Seat Belt Inspection
(1) Ensure correct installation of seat belt.
(2) Check the metal component of the seat belt for damage.
(3) If the vehicle has been vibrated during the accident, pull out the
seat belt from the retractor, observe by eye and touch the seat
belt with hand to ensure that there is no scratch (load limit retractor
does not operate).
z Replace the seat belt if it is not as specified in the technical specification.
Seat Belt
Pull
Anchor
Nick
anchorage
