Geely CK MR479QA 2007 User Manual

368

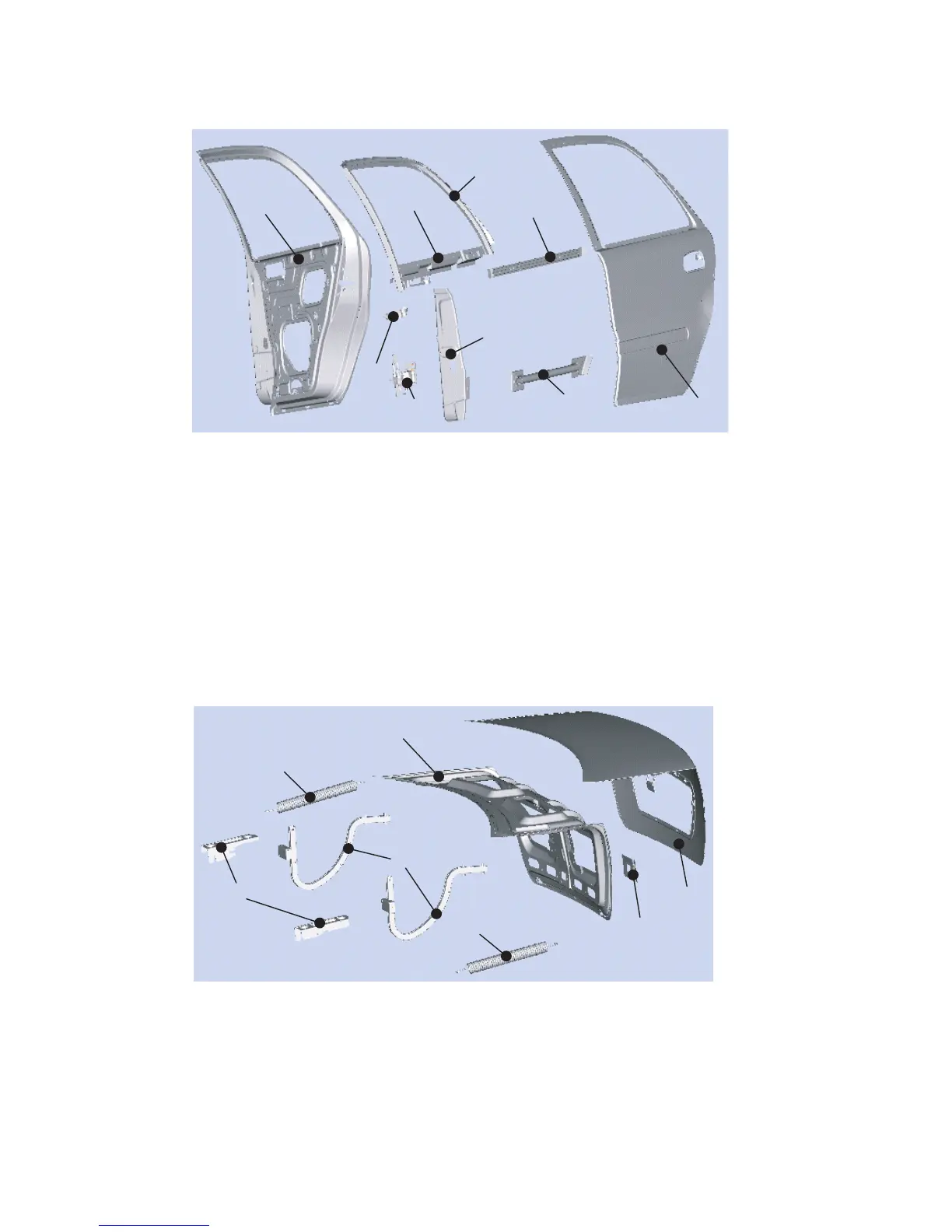

Figure 5-11 Dismantle Diagram of Rear Door Plate
1 Rear Door Inner Plate 2 Rear Door Window Glass Rail 3 Rear Door Inner Upper Reinforce-
ment Plate 4 Rear Door Inner Middle Reinforcement Plate 5 Rear Door Upper Hinge
6 Rear Door Lower Hinge 7 Rear Door Hinge Reinforcement 8 Door Anti-impact Bar Assy.
9 Rear Door Outer Plate
(IV) Trunk Lid Welding Assembly
Trunk lid assembly is mainly composed of parts such as trunk lid outer plate, trunk lid inner plate, trunk lid
hinge mounting plate, trunk lid lock mounting plate, etc., by welding them together. As shown in Figure 5-12
Figure 5-12 Decomposition Diagram of Trunk Lid
1 Hinge Mounting Plate 2 Hinge Spring 3 Trunk Lid Hinge 4 T runk Lid Inner Plate
5 Trunk Lid Lock Mounting Plate 6 Trunk Lid Outer Plate
6
2
3
7
4
8
9
1
5
1
2
2
3
6
4
5
