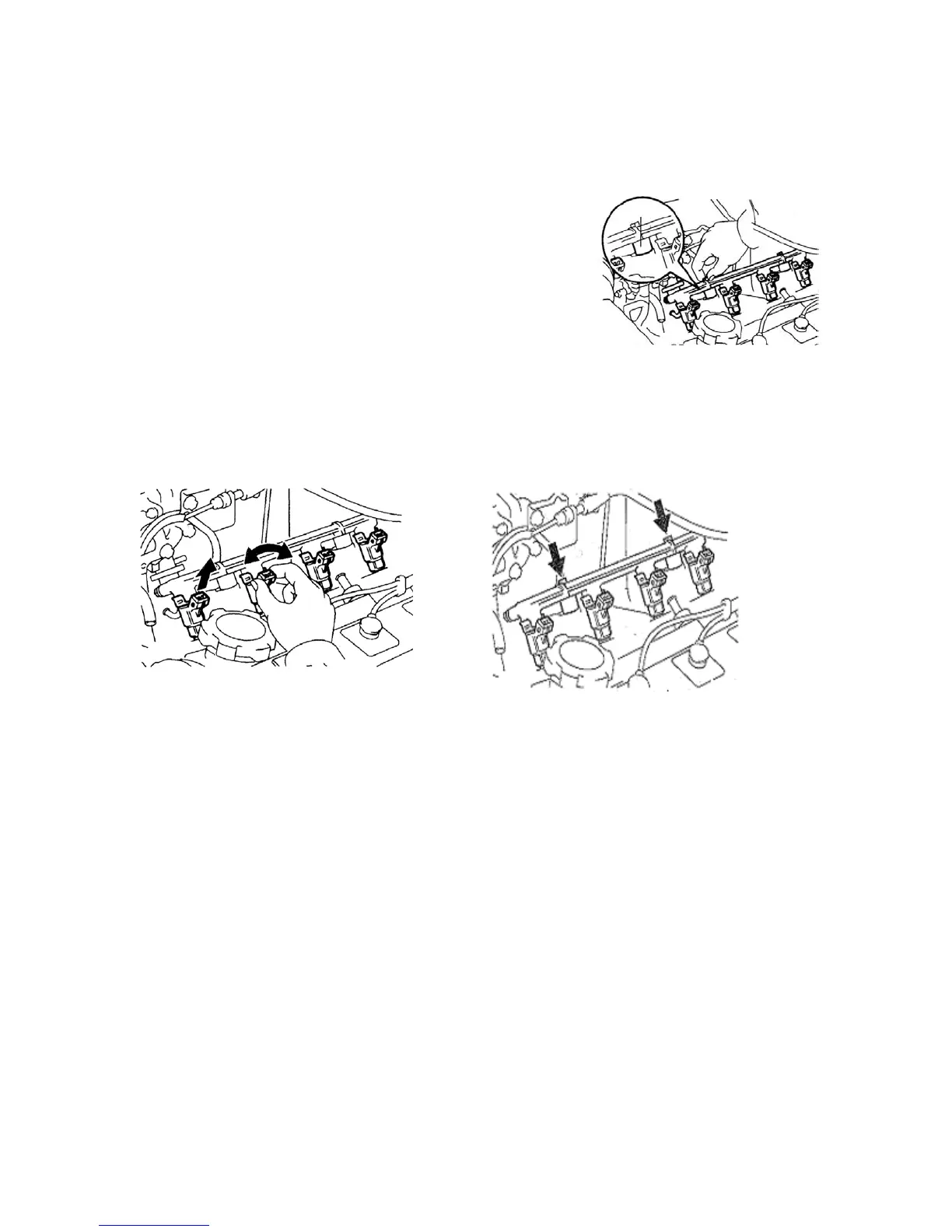

7. Install fuel delivery pipe sub-assembly
(a) Install two washers in intake manifold. See (Figure 99).
(b) Install 4 injectors and fuel delivery pipe assembly into intake manifold .
(c) Temperarily install 2 bolts to attach the fuel delivery pipe to intake
manifold .
(d) Check injector for smooth rotation. See (Figure 100).
Hint: If injector doesn't rotate smoothly, replace O-ring with the injector
connector upward.
(e) Tighten the 2 bolts and attach the fuel delivery pipe to intake manifold
See (Figure 101).
Torque: 15N. m
Figure 100 Figure 101
Figure 99
Washer
Rotate
Upward
