Replacement
1. Remove shift lever assembly
(1) Pull upwards to separate shift lever assembly leather boot from the auxiliary console
(2) Loosen shift lever set screw with inner hex wrench. Remove the shift lever assembly counterclockwise.
2. Remove the auxiliary console
3. Remove the 4 nuts connecting manual shift assembly and the floor
4. Remove the shift cushion
5. Remove transmission control device assembly
(1) Remove the set nut on the cable seal press plate
(2) Remove the cotter pin and the flat washer connecting the cable and the rocker arm on the transmission
(3) Remove the E-shaped clip plate on the cable bracket retaining the cable

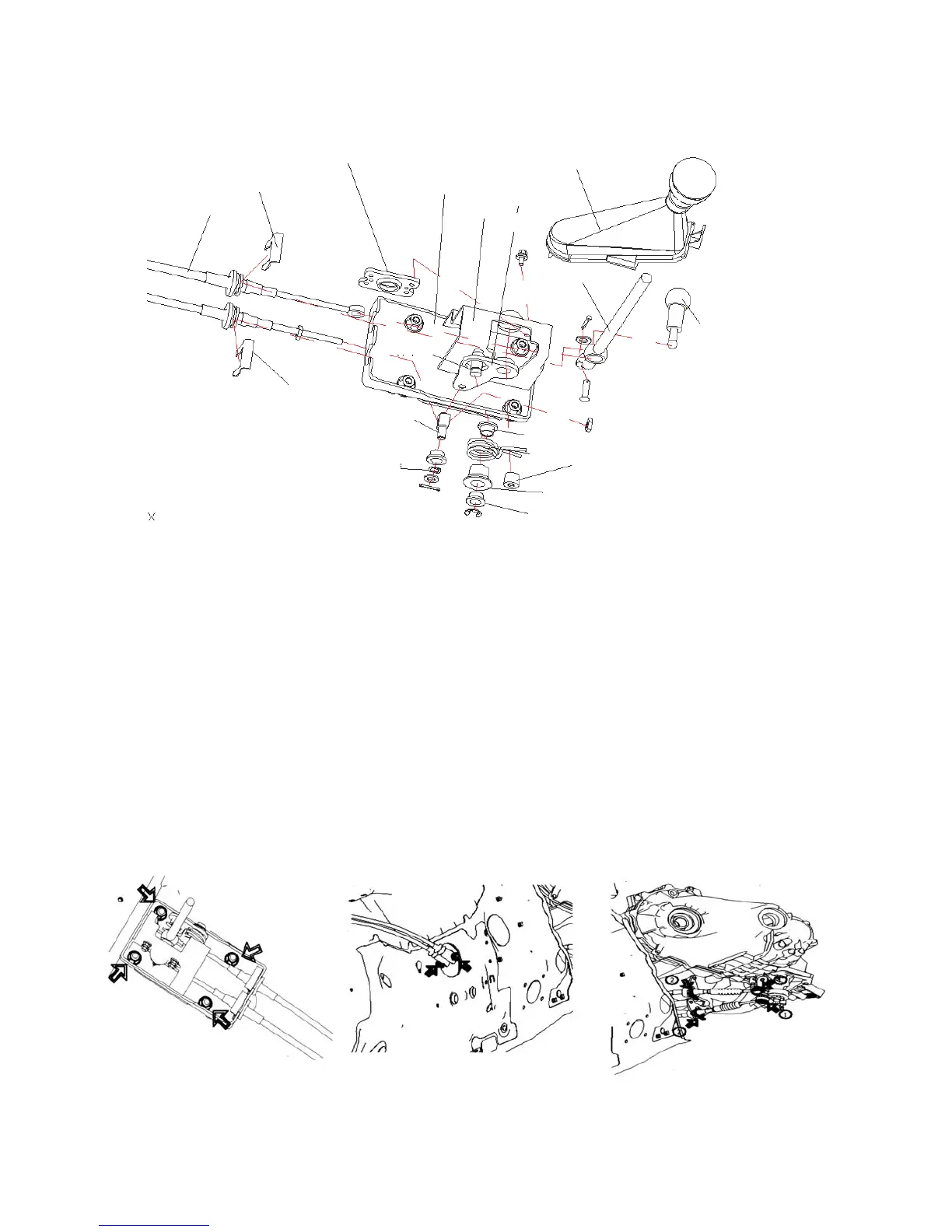

Shift Control
Cables
E Shaped
Clip Plate
Ball Seat
Shift Lever Assembly
Lever
Ball Pin
Spindle II
Spindle I
E Shaped
Clip Plate
Wave Washer
Bush
Bush
Spring Bush
Ball Pin Seat
Torsion Spring
Support
Plate
Bottom Bracket
Conjuction
Frame
