gefran ADV200 SP Series - Page 80

80 ADV200 SP • Quick start up guide - Specification and installation
268 [10.55”]
682 [26.85”]
270 [10.63”]
682 [26.85”] 616 [24.25”]
612 [24.09”]

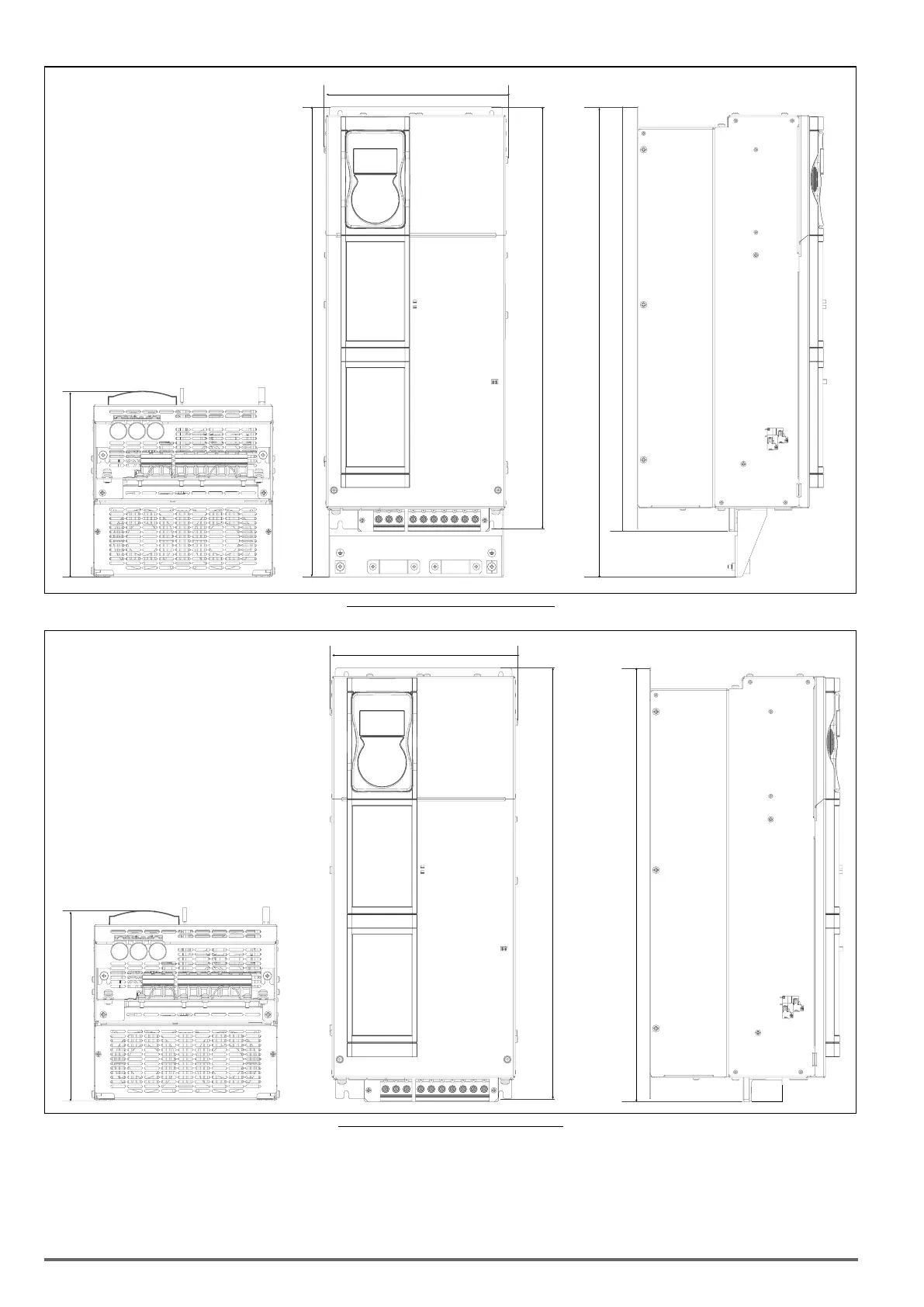

Figure 9.9.5: Size 4 dimensions (ADV200 SP-...-4)
268 [10.55”]
270 [10.63”]
616 [24.25”]
612 [24.09”]
Figure 9.9.6: Size 4 dimensions (ADV200 SP-...-4-DC)
