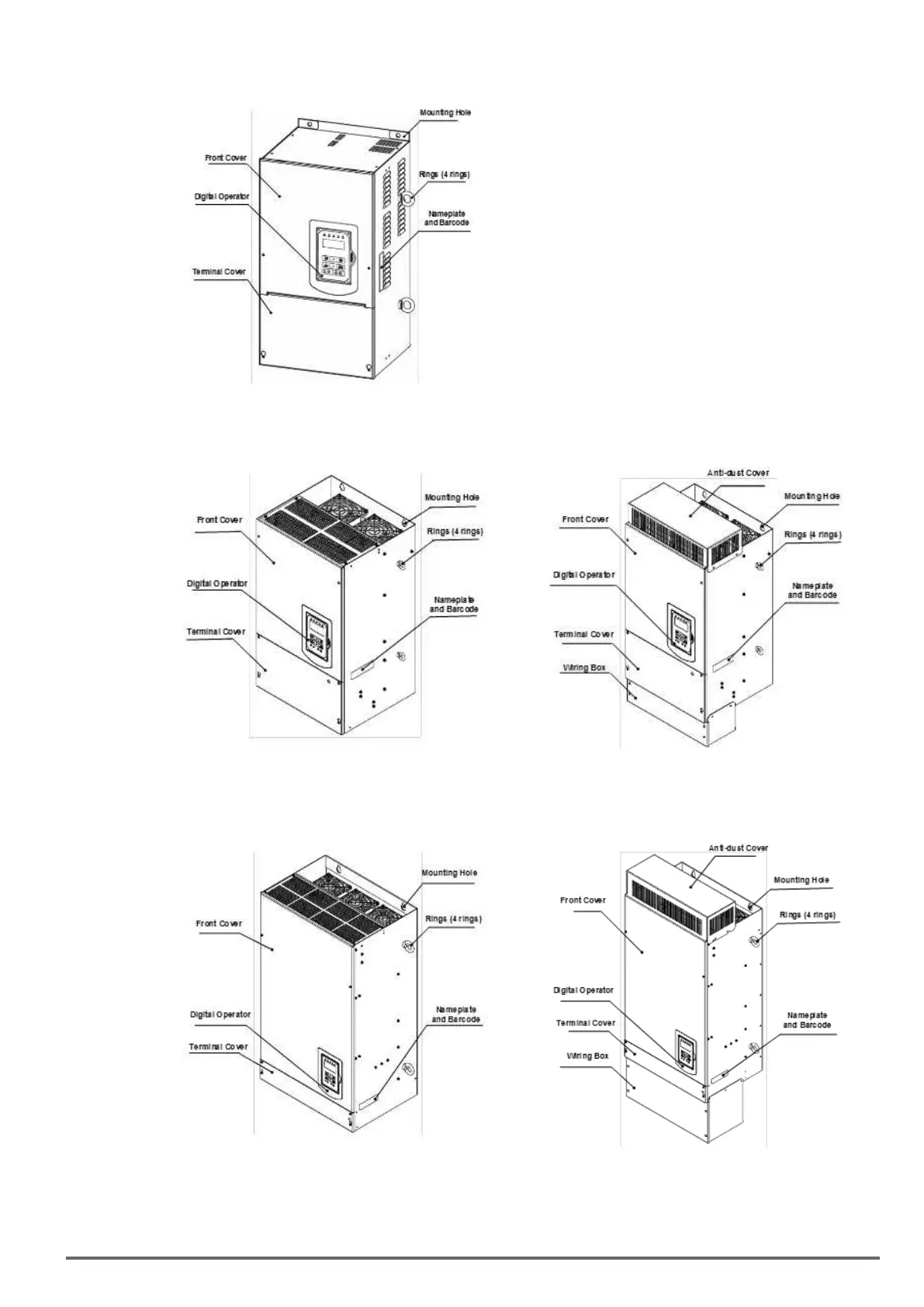

(c)Size5(230VClass:22kW/400VClass:30~55kW)
(Wall-mounted type, IEC IP20, NEMA1)
(d)
Size6(400VClass:75~90kWandmodelswith“NEMA1kitforVDI100”)
(Wall-mounted type, IEC IP20) (Wall-mounted type, IEC IP20, NEMA1)
(e)
Size7(400VClass:110~160kWandmodelswith“NEMA1kitforVDI100”)
(Wall-mounted type, IEC IP00) (Wall-mounted type, IEC IP20, NEMA1)
VDI100 • Instruction manual 15
