gefran VDI100 Series User Manual

6. SpeedReferenceCommandConguration
The inverter offers users several choices to set the speed reference source. The most commonly used meth-
ods are described in the next sections.
Frequency reference command is selected with parameter 00-05.
00-05:MainFrequencyCommand(FrequencySource)
This function sets the frequency command source.
Setting Range: 0 to 5
To set parameter 00-05:
- After power-up press the DSP/FUN key
- Set Group 00 (Basic Fun), and select parameter -05 with the UP/DOWN ▲ and ▼ keys and press the
READ/ ENTER key.
Code Parameter Name / Range
00-05 Main Frequency Command Source Selection
0: Keypad
1: External control (analog)
2: Terminal command UP / DOWN
3: Communication control (RS-485)
4: Pulse input
5: Reserved
6: Reserved
7: AI2 Auxiliary Frequency
6.1. Reference from Keypad
• LED Keypad (KB-LED-VDI100):
Use the </RESET, ▲ and ▼ keys to change the speed reference and then press the READ/ENTER key. Refer
to section 4.1.5 for more details.
• LCD Keypad (KB-LCD-VDI100):
Press the READ/ENTER key rst and use the </RESET, ▲ and ▼ keys to change the speed reference.

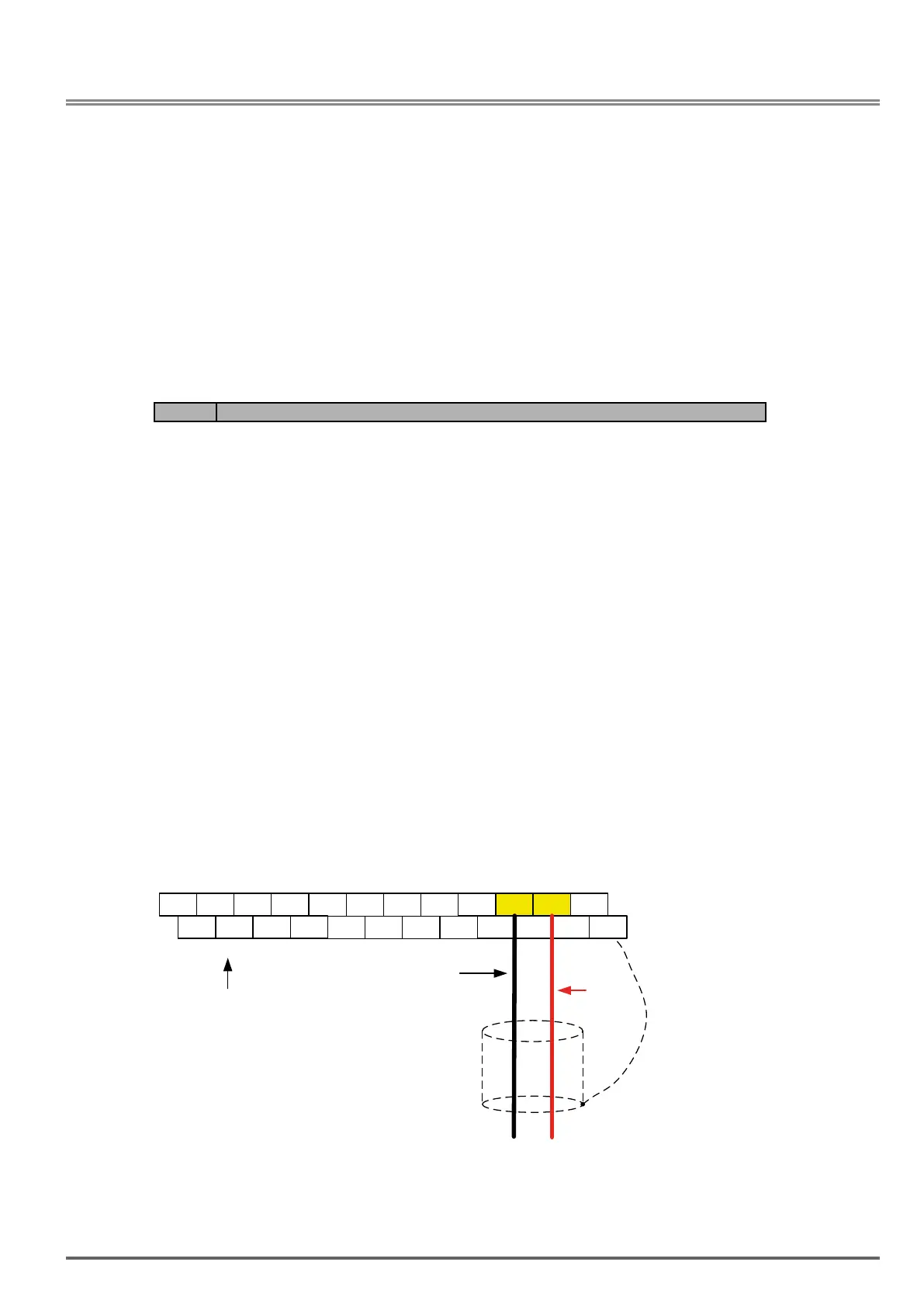

6.2. ReferencefromExternalAnalogSignal(0-10V/4-20mA)
AnalogReference:0–10V(Setting00-05=1)
E
DO2
24VG
S2 S4 S6 S8 24V +12V GND AI1 AI2
DO1 DOG S1 S3 S5 S7 F1 F2 PI AO1 AO2
E
Connect shield to
control ground terminal
0 – 10 V
+
-
Analog
Input AI1
Common/0V, GND
Control Terminals /
User Terminals
VDI100 • Instruction manual 311
