gefran VDI100 Series

Motor Speed
(Output Frequency)
t
03-42
Brake Release delay time
03-42
Brake Release delay time
Output Freq.> 03-13
and
Output Torque > 03-41
DO 03-11、03-12、03-28
set 38 Brake Release
Output Freq.< 03-13
or
Output Torque < 03-41

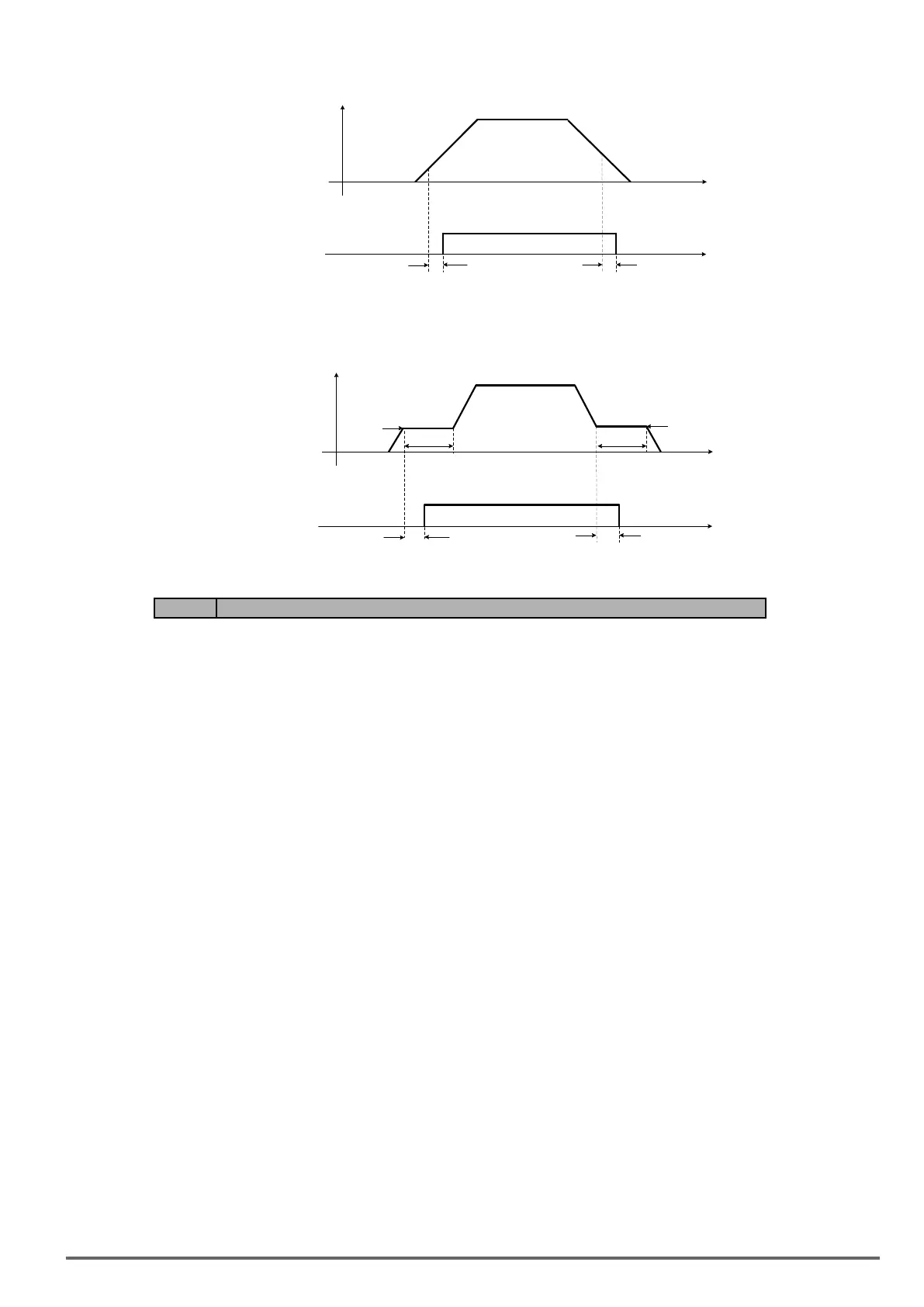

It is recommended to be with starting and stopping frequency locked function (11-43~11-46), shown as the
following gure:
Motor Speed
(Output Frequency)
t
03-42
Brake Release delay time
03-42
Brake Release delay time
Output Torque > 03-41
DO 03-11、03-12、
03-28 set 38
Brake Release
Output Torque < 03-41
11-44
11-44
11-46
11-45
Code Parameter Name / Range
03-43 UP/DOWN Acceleration/ Deceleration Selection
(0): Acceleration/Deceleration Time 1
(1): Acceleration/Deceleration Time 2
Calculate the acceleration/ deceleration time of frequency command by switch the function of UP/DOWN from
parameter 03-43. Ex: ∆H1 (set frequency increment at acceleration) and ∆H2 (set frequency increment at
deceleration).
