7.2. Run/StopfromExternalSwitch/ContactorPushbutton(00-02=1)
Use an external contact or switch to Run and Stop the inverter.

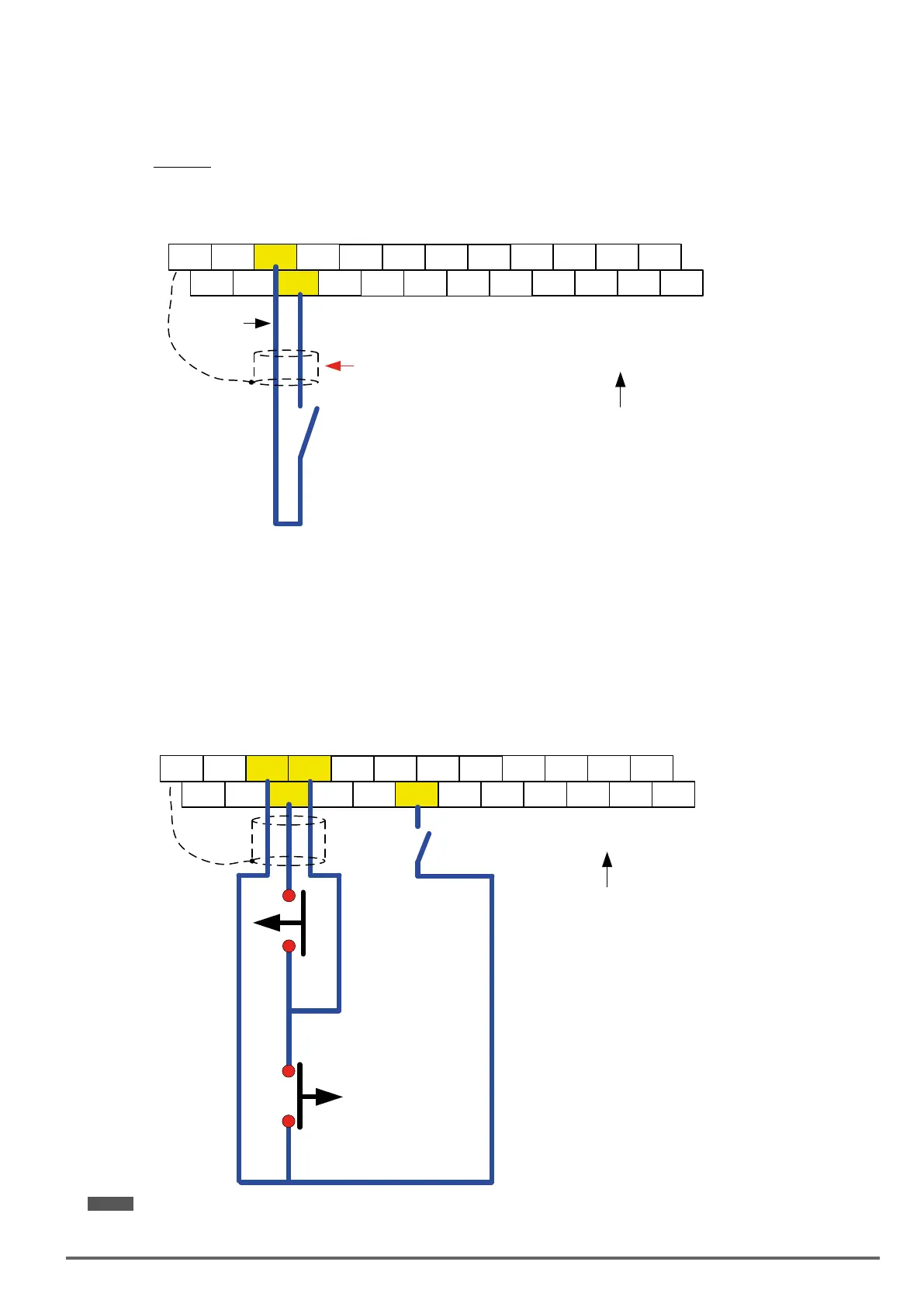

Example: NPN wiring
• PermanentSwitch/Contact
E
DO2
24VG
S2 S4 S6 S8 24V +12V GND AI1 AI2
DO1 DOG
S1
S3 S5 S7 F1 F2 PI AO1 AO2
E
Start / Stop Switch
(Maintained)
Connect shield to
control ground
terminal
Forward Command/FWD
Common/
24VG
Control Terminals /
User Terminals
• MomentaryContacts(PushButtons)
Use push button / momentary switch to Run and Stop the inverter.
Set parameter 13-08 to 3, 5 or 7 for 3-wire program initialization, multi-function input terminal S1 is set to run
operation, S2 for stop operation and S7 for forward/reverse command.
00-01 Operation Method = 1
03-07 Terminal S7 Function = 26
E
DO2
24VG S2
S4 S6 S8 24V +12V GND AI1 AI2
DO1 DOG
S1
S3 S5
S7
F1 F2 PI AO1 AO2
E
Connect
shield to
control
ground
terminal
START
PUSH BUTTON
(Momentary)
STOP
PUSH BUTTON
(Momentary)
Control Terminals /
User Terminals
Reverse direction
when closed
Note: Stop mode selection can be set with parameter 07-09, default is deceleration to stop.
