off when the PID output falls below the PID sleep level (10-17) for the time specied in the PID sleep delay time
parameter (10-18).
The inverter wakes up from a sleep condition when the PID output (Reference frequency) rises above the PID
wake-up frequency (10-19) for the time specied in the PID wake-up delay time (10-20).
10-29 =0: PID Sleep function is disabled.
10-29 =1: PID sleep operation is based on parameters of 10-17 and 10-18.
10-29 =2: PID sleep mode is enabled by multi-function digital input

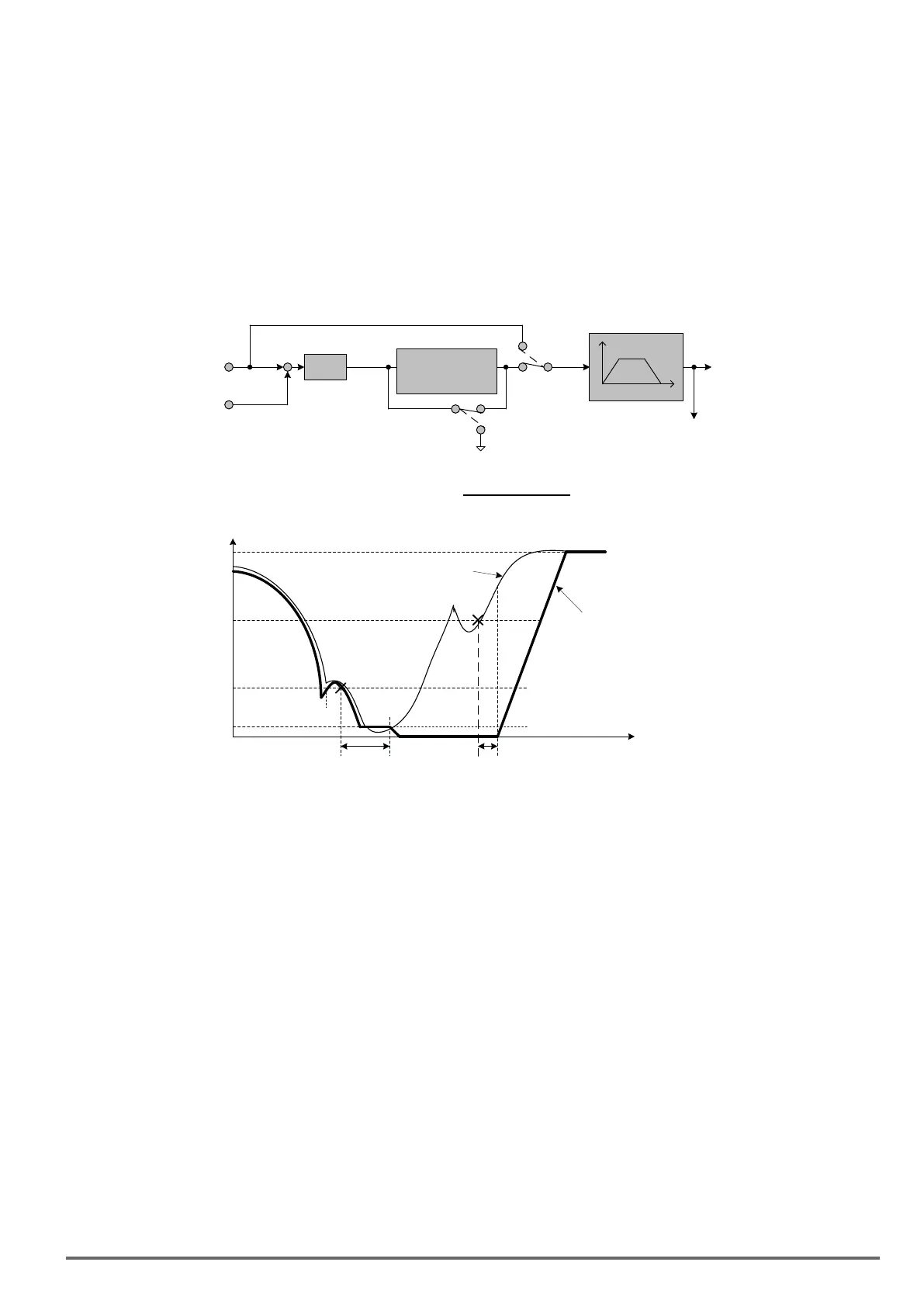

Refer to the following gures for PID sleep / wakeup operation.
PID
Target
Value
Feedback
Value
+
-
PID=OFF
PID=ON
f
Soft Start
Output
Frequency
( Fout )
PID
Sleep/Wake- up
function
(Fref)
Freq Reference
10-29= 0
10-29=1 or 2
t
PIDSleepFunction
Output Frequency (Fout)
Frequency Reference
(Fref)
t
wake up delay time
(10-20)
sleep delay time
(10-18)
Fmin
(01-08)
Sleep
Frequency
(10-17)
Wake- up
Frequency
(10-19)
Output
Frequency
VDI100 • Instruction manual 329
